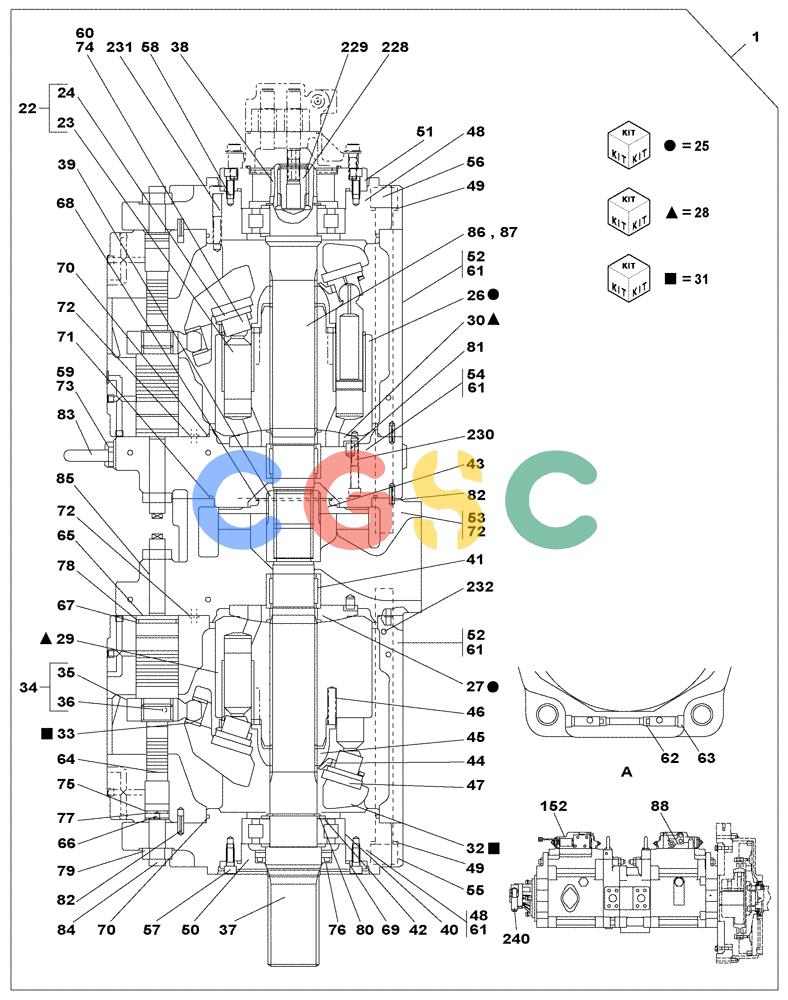

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-100-00[01]) - HIGH PRESSURE PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
348 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUJ0309 | [1] | PUMP, HYDRAULIC | SUM Superseded by part number: KUJ11580 |
| 22. | LJ00874 | [2] | PISTON | SUM |
| 23. | NSS | [9] | NOT SERVICED SEPARATELY | CONPiston |
| 25. | LS00092 | [1] | CYLINDER BLOCK | SUM |
| 28. | LS00091 | [1] | CYLINDER BLOCK | SUM |
| 31. | LR00421 | [1] | PLATE | SUM |
| 34. | LA00959 | [2] | SPECIAL PIN | SUM |
| 37. | LB00425 | [1] | GEAR SHAFT | SUM |
| 38. | LB01016 | [1] | SHAFT | SUM |
| 39. | LB00429 | [1] | SHAFT | SUM |
| 40. | LB00706 | [2] | CYLINDRICAL ROLLER BEARING | SUM |
| 41. | LB01015 | [2] | BEARING | SUM |
| 42. | LH00203 | [4] | SPACER | SUM |
| 43. | LJ00582 | [1] | HOLDER | SUM |
| 44. | LR00761 | [2] | PLATE | SUM |
| 45. | LB00434 | [2] | BUSHING | SUM |
| 46. | LG00254 | [18] | COMPRESSION SPRING | SUM |
| 47. | TPM0021 | [2] | HOUSING | SUM |
| 48. | LS00257 | [2] | SUPPORT | SUM |
| 49. | LA00795 | [8] | WASHER | SUM |
| 50. | LW00263 | [1] | COVER | SUM |
| 51. | LW00264 | [1] | COVER | SUM |
| 52. | LW00458 | [2] | HOUSING | SUM |
| 53. | LW00262 | [1] | COVER | SUM |
| 54. | LW00459 | [1] | COVER | SUM |
| 55. | LA00591 | [4] | BOLT,Hex Skt Hd | SUM |
| 56. | LA00590 | [4] | BOLT,Hex Skt Hd | SUM |
| 57. | 861-8020 | [4] | HEX SOC SCREW,M8 x 20mm, Cl 12.9 | CAS Superseded by part number: 86512138 |
| 58. | 863-8030 | [4] | HEX SOC SCREW,M8 x 30mm, Cl 12.9 | CAS |
| 59. | 155496A1 | [2] | PLUG | SUM |
| 60. | 155471A1 | [4] | PLUG | SUM |
| 61. | LK00003 | [31] | PLUG | SUM |
| 62. | LK00230 | [4] | PLUG | SUM |
| 63. | LK00028 | [5] | PLUG | SUM |
| 64. | LJ01297 | [2] | PISTON | SUM |
| 65. | LG00266 | [2] | STOP | SUM |
| 66. | LG00265 | [2] | STOP | SUM |
| 67. | LE00607 | [2] | O-RING | SUM |
| 68. | 154661A1 | [1] | PLUG | SUM |
| 69. | LE00606 | [2] | O-RING | SUM |
| 70. | CBP0265 | [4] | O-RING | SUM |
| 71. | CBP0267 | [1] | O-RING | SUM |
| 72. | 154455A1 | [19] | O-RING | SUM |
| 73. | 154467A1 | [2] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 74. | 154503A1 | [2] | O-RING | SUM |
| 75. | LE00608 | [2] | O-RING | SUM |
| 76. | LE00611 | [1] | OIL SEAL | SUM |
| 77. | 153979A1 | [2] | BACK-UP RING | SUMRING, BACK-UP |
| 78. | 154047A1 | [2] | BACK-UP RING | SUMRING, BACK-UP |
| 79. | 829-1420 | [4] | NUT,M20, Cl 10 | CAS Superseded by part number: 9847024 |
| 80. | TMM0028 | [2] | RING | SUM |
| 81. | LA00569 | [2] | DOWEL | SUM |
| 82. | 738-1620 | [5] | LOCK PIN,6mm OD x 20mm L, Slotted | CAS |
| 83. | TUP0024 | [2] | EYEBOLT | SUM Superseded by part number: 126R016SN |
| 84. | LA00596 | [2] | SCREW,Hex Skt | SUM |
| 85. | LA00595 | [2] | SCREW,Hex Skt | SUM |
| 88. | LJ01299 | [1] | REGULATOR | SUM |
| 152. | LJ01300 | [1] | REGULATOR | SUM |
| 228. | LK00489 | [1] | UNION | SUM |
| 229. | 800-2128 | [1] | SNAP RING,M28, Int | CAS Superseded by part number: 301642 |
| 230. | 863-10075 | [2] | HEX SOC SCREW,M10 x 75mm, 12.9 | SUM |
| 231. | 108R010Y055N | [4] | BOLT | SUMM10 x 55 Superseded by part number: 862-10055 |
| 232. | LA00960 | [8] | SCREW,Hex Skt | SUM |
| 240. | LJ01287 | [1] | HYDRAULIC PUMP | SUM |
