纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-204-00[01]) - CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
288 次

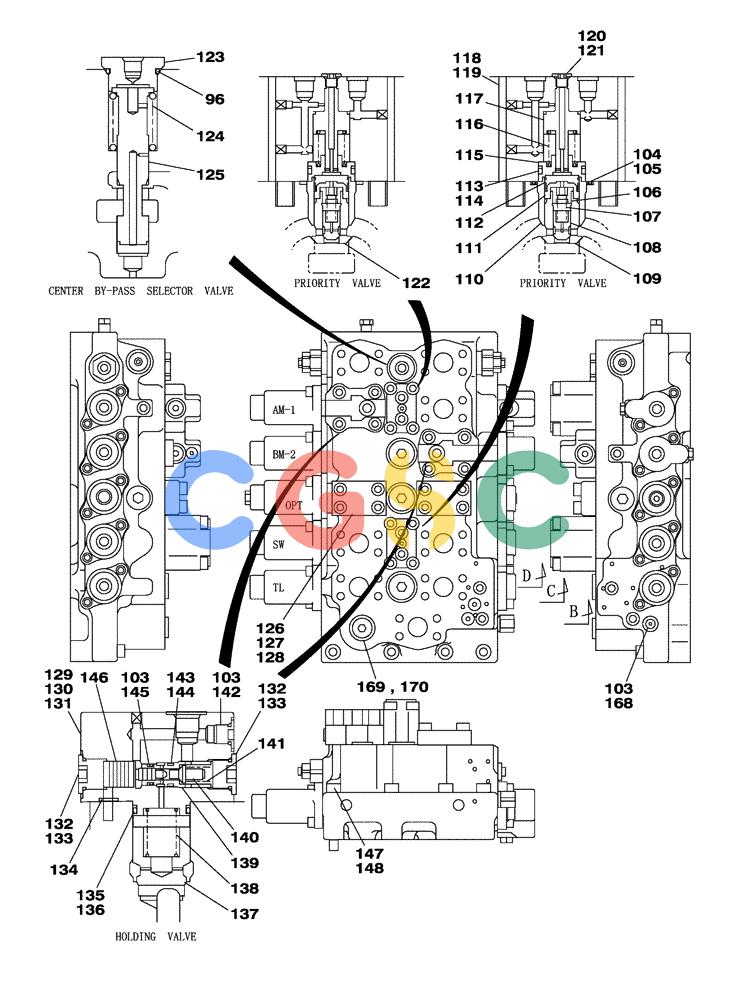

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 96. | 154555A1 | [1] | O-RING | SUM |
| 103. | 154467A1 | [11] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 104. | LE00610 | [2] | BACK-UP RING | SUMRING, BACK-UP |
| 105. | 164222A1 | [2] | O-RING | SUM |
| 106. | LK00235 | [2] | CAP | SUM |
| 107. | LG00263 | [2] | COMPRESSION SPRING | SUM |
| 108. | LJ00603 | [2] | CHECK VALVE | SUM |
| 109. | LJ00876 | [1] | VALVE POPPET | SUM |
| 110. | LH00294 | [2] | SLEEVE VALVE | SUM |
| 111. | LS00093 | [2] | GUIDE | SUM |
| 112. | LG00256 | [2] | COMPRESSION SPRING | SUM |
| 113. | 154529A1 | [2] | O-RING | SUM |
| 114. | 154002A1 | [2] | BACK-UP RING | SUMRING, BACK-UP |
| 115. | LR00423 | [2] | PLATE | SUM |
| 116. | LG00262 | [2] | COMPRESSION SPRING | SUM |
| 117. | LJ00598 | [2] | PISTON | SUM |
| 118. | LW00272 | [2] | COVER | SUM |
| 119. | 108R014Z080B | [8] | BOLT | SUM |
| 120. | 160902A1 | [2] | CAP | SUM |
| 121. | 154455A1 | [2] | O-RING | SUM |
| 122. | LJ00877 | [1] | VALVE POPPET | SUM |
| 123. | LK00234 | [1] | CAP | SUM |
| 124. | LG00261 | [1] | COMPRESSION SPRING | SUM |
| 125. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 126. | LH00208 | [2] | FIXING BRACKET | SUM |
| 127. | LBQ6222 | [2] | O-RING | SUM |
| 128. | 108R014Z045B | [8] | BOLT | SUM |
| 129. | LW00267 | [2] | COVER | SUM |
| 130. | 108R014Z040B | [8] | BOLT | SUM |
| 131. | LA00598 | [8] | SPRING WASHER | SUM |
| 132. | 160903A1 | [4] | CAP | SUM |
| 133. | 154487A1 | [4] | O-RING | SUM |
| 134. | 154463A1 | [2] | O-RING | SUM |
| 135. | 154017A1 | [2] | BACK-UP RING | SUMRING, BACK-UP |
| 136. | 154549A1 | [2] | O-RING | SUM |
| 137. | LJ00583 | [2] | VALVE POPPET | SUM |
| 138. | LG00257 | [2] | COMPRESSION SPRING | SUM |
| 139. | LH00206 | [2] | SLEEVE VALVE | SUM |
| 140. | LJ00584 | [2] | VALVE POPPET | SUM |
| 141. | LG00260 | [2] | COMPRESSION SPRING | SUM |
| 142. | 160306A1 | [5] | CAP | SUM |
| 143. | 154402A1 | [2] | BACK-UP RING | SUMRING, BACK-UP |
| 144. | 155063A1 | [2] | O-RING | SUM |
| 145. | 153955A1 | [2] | O-RING | SUM |
| 146. | LJ00597 | [2] | PISTON | SUM |
| 147. | 108R016Z100B | [4] | BOLT | SUM |
| 148. | LA00597 | [4] | WASHER | SUM |
| 168. | LR00763 | [1] | CAP | SUM |
| 169. | 156262A1 | [1] | CAP | SUM |
| 170. | 155067A1 | [1] | O-RING | SUM |
