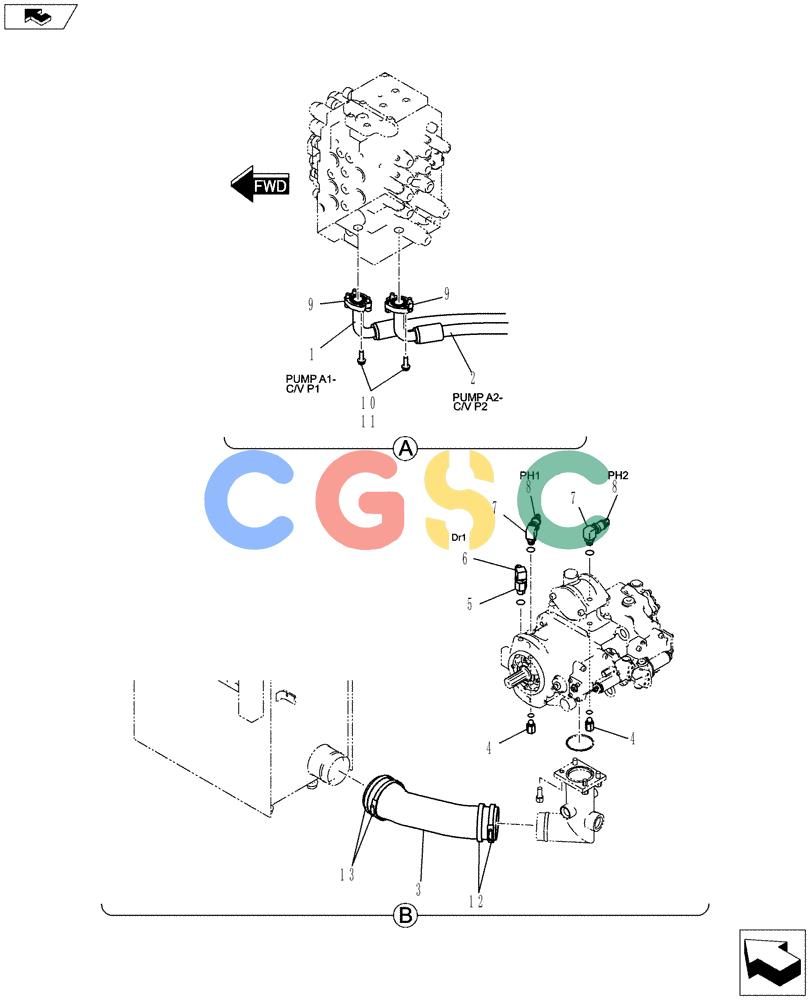

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-020[02]) - HYDRAULIC LINES, PUMP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
792 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY30H01023D1 | [1] | HOSE | KOB |
| 2. | YY30H01024D1 | [1] | HOSE | KOB |
| 3. | YY30H01020P1 | [1] | HOSE | KOB |
| 4. | YY06H01002P1 | [2] | PLUG | KOB |
| 5. | HH25R08008GB | [1] | HYD CONNECTOR | KOB |
| 6. | ZH32X08000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOB |
| 7. | YT42H01128P1 | [2] | 90 ELBOW | KOB |
| 8. | LS52S00015P1 | [2] | SENSOR | KOBPress |
| 9. | ZE12X16000 | [4] | CLAMP | KOBHalf |
| 10. | HM83C10030G1 | [8] | BOLT | KOBSems |
| 11. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| 12. | ZC16X09100 | [2] | CLIP | KOB |
| 13. | ZC16X10000 | [2] | CLIP | KOB |
