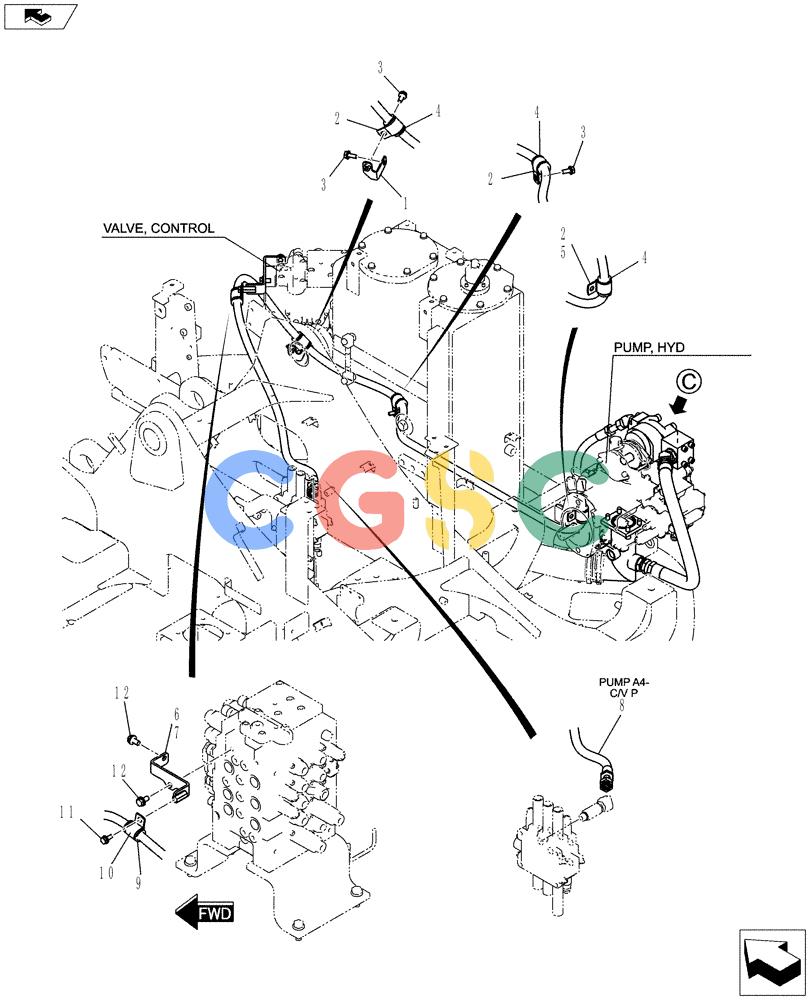

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-020[03]) - HYDRAULIC LINES, PUMP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
300 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY30H01040P1 | [1] | SUPPORT | KOB |
| 2. | ZC45X31014 | [3] | CLIP | KOB |
| 3. | ZM73C10025 | [3] | BOLT,M10x25mm - Course Thread | KOBSems |
| 4. | YT42H01221P1 | [3] | BUSHING | KOB |
| 5. | ZW16H10000 | [1] | WASHER | KOB |
| 6. | YY30H00045F1 | [1] | Pump | |
| 7. | YY30H01079P1 | [1] | BRACKET | KOB |
| 8. | YY03H01299D4 | [1] | HOSE | KOB |
| 9. | YT42H01221P1 | [1] | BUSHING | KOB |
| 10. | ZC45X31014 | [1] | CLIP | KOB |
| 11. | ZM73C10025 | [1] | BOLT,M10x25mm - Course Thread | KOBSems |
| 12. | ZM73C12025 | [2] | BOLT,M12x25mm - Course Thread | KOBSems |
