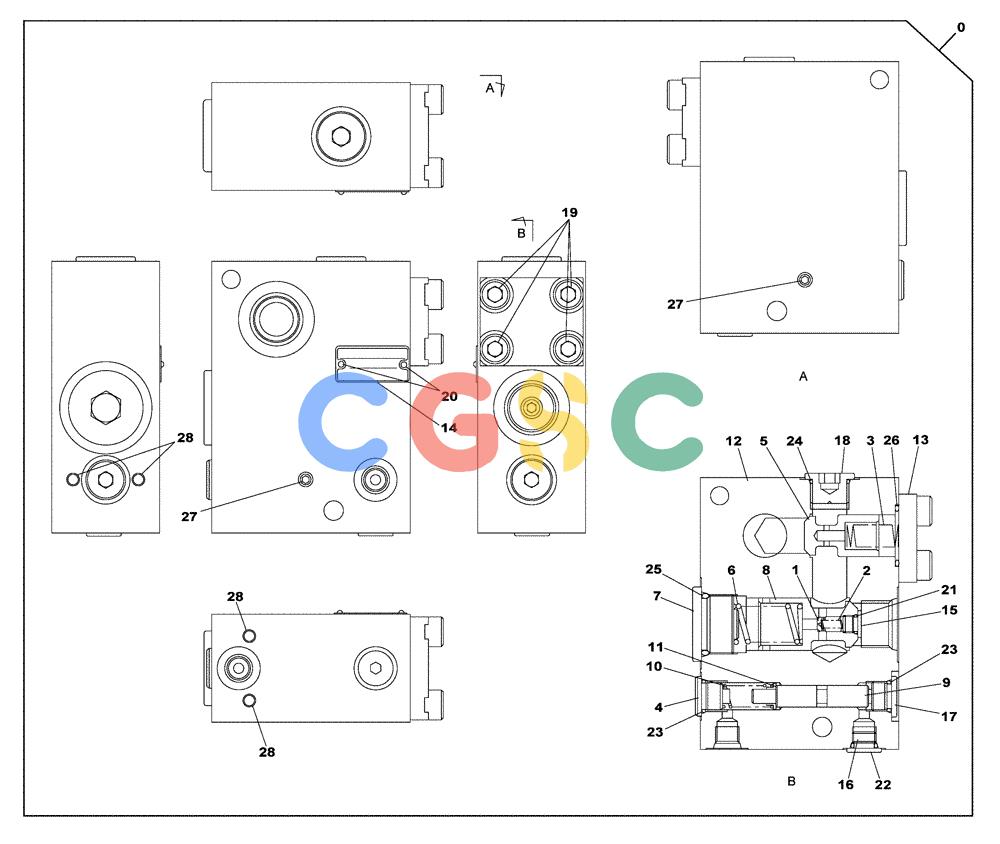

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-253-00[01]) - SAFETY VALVE - OPTIONAL - SMALL FLOW New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
627 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | KHJ1473 | [1] | VALVE | SUM |
| 1. | LPC0291 | [1] | VALVE POPPET | SUM |
| 2. | LSC0282 | [1] | SPRING | SUM |
| 3. | 165763A1 | [1] | SPRING | SUM |
| 4. | 155514A1 | [1] | PLUG | SUM |
| 5. | 168946A1 | [1] | PLUNGER | SUM |
| 6. | 165007A1 | [1] | SPRING | SUM |
| 7. | 155509A1 | [1] | PLUG | SUM |
| 8. | LPC0292 | [1] | VALVE POPPET | SUM |
| 9. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 10. | LG00317 | [1] | SPRING | SUM |
| 11. | LA00689 | [1] | WASHER | SUM |
| 13. | LW00309 | [1] | COVER | SUM |
| 15. | 155510A1 | [1] | PLUG | SUM |
| 16. | 160083A1 | [1] | PLUG | SUM1/4 PF |
| 17. | 155515A1 | [1] | PLUG | SUM3/8 PF |
| 18. | 163874A1 | [1] | PLUG | SUM1/2 PF |
| 19. | 863-10025 | [4] | HEX SOC SCREW,M10 x 25mm, Cl 12.9 | CASM10 x 25; 12.9 Superseded by part number: 86625209 |
| 21. | 154455A1 | [1] | O-RING | SUM |
| 22. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 23. | 154475A1 | [2] | O-RING | SUM |
| 24. | 154487A1 | [1] | O-RING | SUM |
| 25. | 154523A1 | [1] | O-RING | SUM |
| 26. | 154529A1 | [1] | O-RING | SUM |
| 27. | LLC0064 | [2] | PLUG | SUM |
