纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-255-00[01]) - CONTROL VALVE - SMALL FLOW New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
808 次

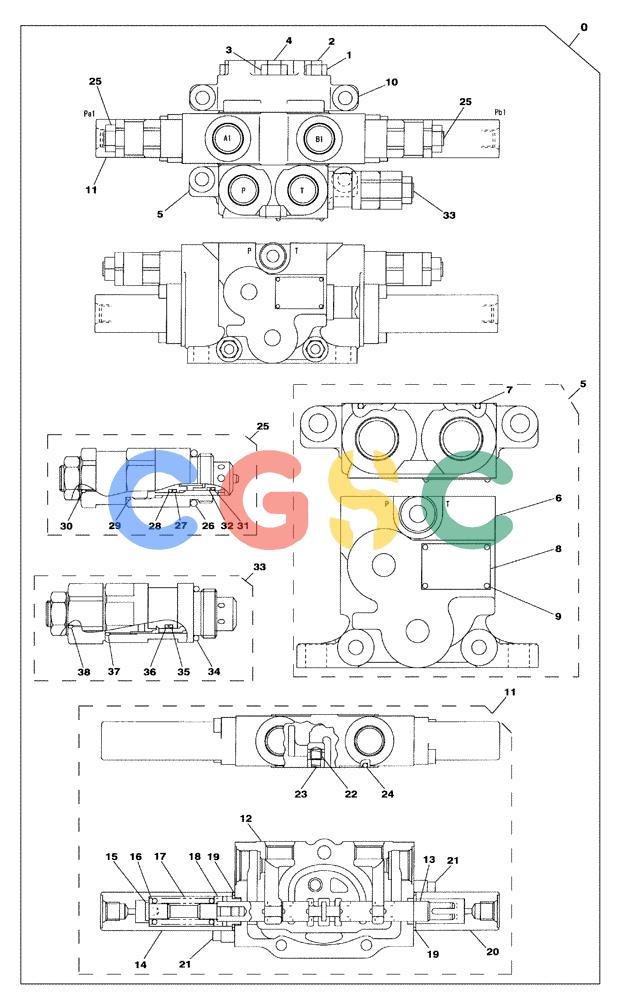

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | 168709A1 | [1] | VALVE SECTION | SUM |
| 1. | TUC0006 | [4] | SPECIAL NUT | SUM |
| 2. | LUC0079 | [2] | ROD,THREADED | SUMROD, THREADED |
| 3. | TUC0008 | [2] | SPECIAL NUT | SUM |
| 4. | LUC0083 | [1] | THREADED ROD | SUM |
| 5. | LNC0246 | [1] | HYD VALVE SECTION | SUM |
| 6. | LT00115 | [1] | HOUSING | SUM |
| 7. | LBQ5228 | [1] | O-RING | SUM |
| 8. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 10. | LNC0015 | [1] | HYD VALVE SECTION | SUM |
| 11. | LJ00881 | [1] | HYD VALVE SECTION | SUM |
| 14. | LR00821 | [1] | CAP | SUM |
| 15. | LF00036 | [1] | CAP | SUM |
| 16. | 163393A1 | [1] | SPRING SEAT | SUM |
| 17. | LG00411 | [1] | COMPRESSION SPRING | SUM |
| 18. | LR00823 | [1] | VALVE SEAT | SUM |
| 19. | LBC0058 | [2] | O-RING | SUM |
| 20. | LR00822 | [1] | CAP | SUM |
| 21. | LA00810 | [4] | SPECIAL BOLT | SUM |
| 22. | TPC0004 | [1] | VALVE POPPET | SUM Superseded by part number: 166937A1 |
| 23. | TSC0004 | [1] | SPRING | SUM Superseded by part number: TSC0021 |
| 25. | 167387A1 | [2] | VALVE, PRESSURE RELI | SUMEF |
| 26. | 155222A1 | [1] | O-RING | SUM |
| 27. | 167362A1 | [1] | O-RING | SUM |
| 28. | 167356A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 29. | 155221A1 | [1] | O-RING | SUM |
| 30. | 154463A1 | [1] | O-RING | SUM |
| 31. | 163323A1 | [1] | O-RING | SUM |
| 32. | 164575A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 33. | LNC0134 | [1] | VALVE, PRESSURE RELI | SUMEF |
| 35. | 167357A1 | [1] | O-RING | SUM |
| 36. | 153952A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
