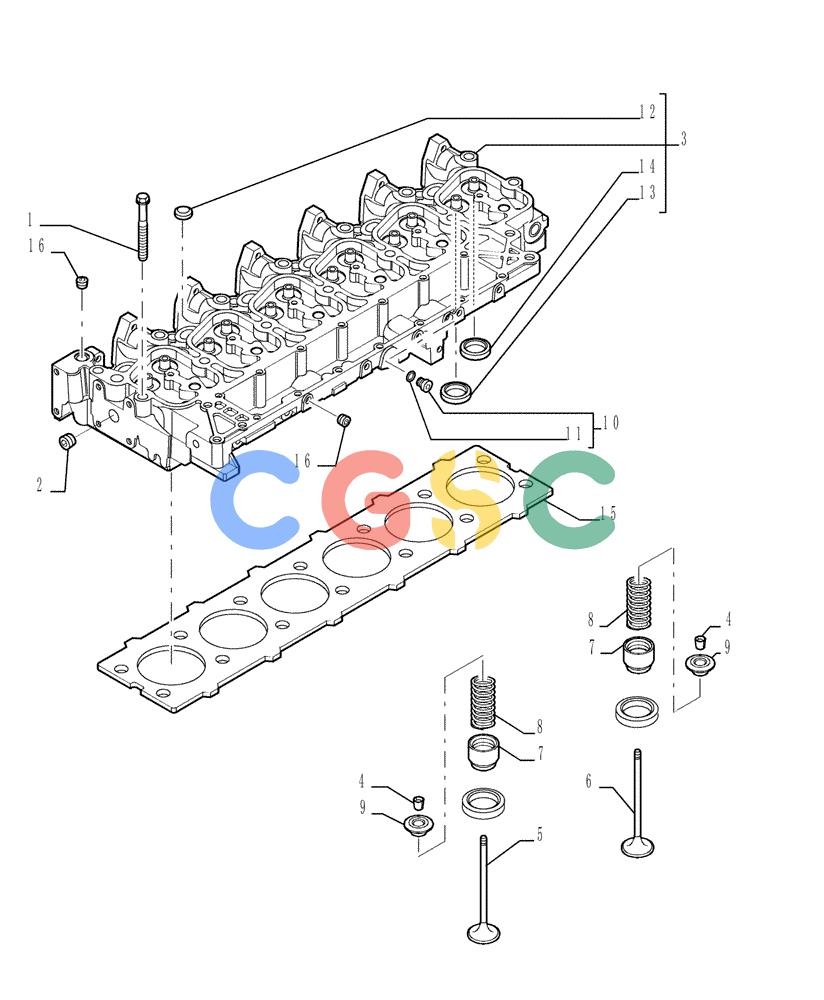

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (9.006[00]) - CYLINDER HEAD INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
610 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4892861 | [6] | CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73 | TOR |
| 1. | 4892859 | [14] | BOLT,Flng, M12 x 1.75 x 143mm | TOR |
| 2. | 4895085 | [1] | EXPANSION PLUG,25.74mm | TOROD |
| 3. | 4895765 | [1] | CYLINDER HEAD | TORAssembly |
| 3. | 87536204 | [1] | CYLINDER HEAD | TORAssembly -- Include Ref. 4,5,6,7,8,9,13,14 |
| 3. | 87536204R | [1] | REMAN-CYLINDER HEAD | MKTAssembly -- Include Ref. 4,5,6,7,8,9,13,14 |
| 3. | 87536204C | [1] | CORE-CYLINDER HEAD | MKTReturn Number |
| 4. | 4895183 | [24] | COLLET | TOR |
| 5. | 4895188 | [6] | STD EXHAUST VALVE | TORSTD ENGINE EXHAUST VALVE (Standard) |
| 6. | 4895187 | [6] | STD INLET VALVE | TORSTD ENGINE INLET VALVE (Standard) |
| 7. | 4895347 | [12] | SEAL | TOR |
| 8. | 4895215 | [12] | VALVE SPRING | TOR |
| 9. | 4895184 | [12] | RETAINER | TOR |
| 10. | 4899009 | [1] | PLUG,M10 x 1.5 | TOR(Incls. O-Ring 4899072) |
| 11. | 4899072 | [1] | O-RING,1.6mm Thk x 8.1mm ID | TOR(Part of 4899009) |
| 12. | 4895179 | [3] | EXPANSION PLUG,M20.93 | TOR |
| 13. | 4897178 | [6] | VALVE SEAT | TORExhaust |
| 14. | 4897179 | [6] | VALVE SEAT | TORIntake |
| 15. | 2830922 | [1] | CYLINDER HEAD GASKET,1.4mm Thk | TORSP=1.25 |
| 15. | 2830923 | [1] | CYLINDER HEAD GASKET,1.15mm Thk | TORSP=1.15 |
| 16. | 4895078 | [5] | PIPE PLUG,1/2"-14 | TOR |
