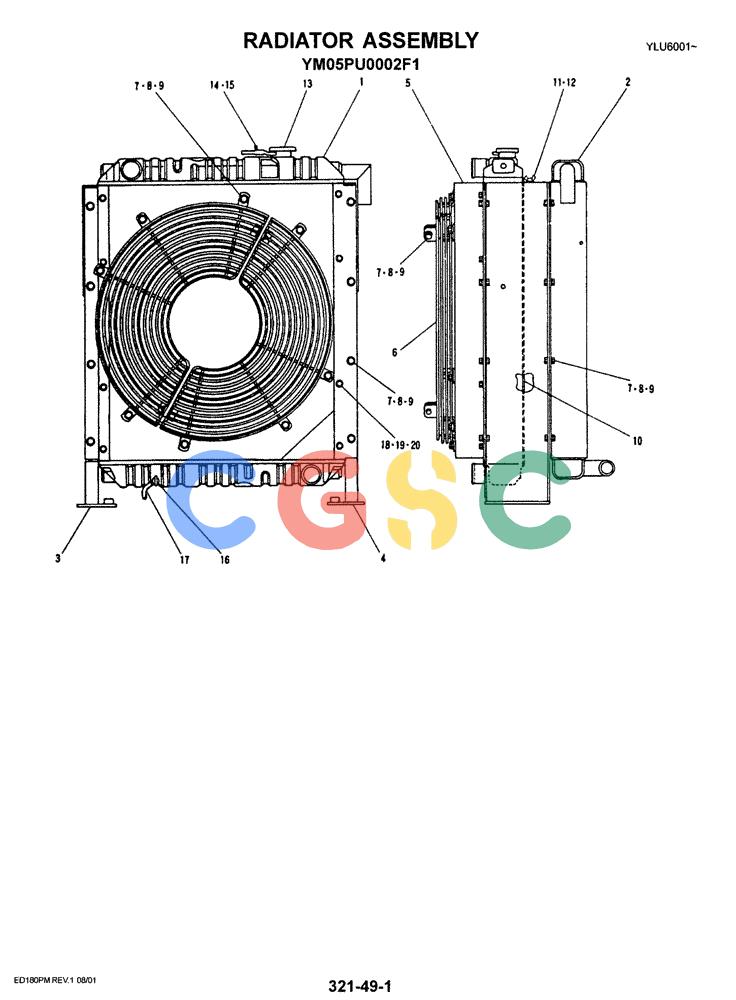

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-005) - RADIATOR ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
996 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM05PU0002F1 | [1] | RADIATOR | KOB |
| 1. | YM05PU0002S001 | [1] | CORE, RADIATOR | KOB |
| 2. | YM05PU0002S002 | [1] | OIL COOLER | KOB |
| 3. | YM05PU0002S003 | [1] | SUPPORT | KOB |
| 4. | YM05PU0002S004 | [1] | SUPPORT | KOB |
| 5. | YM05PU0002S005 | [1] | SHROUD | KOB |
| 6. | YW05PU0002S006 | [2] | GUARD | KOB |
| 7. | YW05PU0002S007 | [26] | SCREW | KOB |
| 8. | YW05PU0002S008 | [26] | LOCK WASHER | KOB |
| 9. | YW05PU0002S009 | [26] | WASHER | KOB |
| 10. | YM05PU0002S010 | [1] | NET | KOBNET, INSECT |
| 11. | YW05PU0002S011 | [2] | SCREW | KOB Superseded by part number: 2420R747D4 |
| 12. | YW05PU0002S012 | [2] | WASHER | KOB |
| 13. | YW05PU0002S013 | [1] | CAP | KOB |
| 14. | YW05PU0002S014 | [1] | HOSE | KOB |
| 15. | YW05PU0002S015 | [2] | CLAMP | KOB |
| 16. | YW05PU0002S016 | [1] | COCK | KOBDRAIN |
| 17. | YM05PU0002S017 | [1] | HOSE | KOB |
| 18. | YW05PU0002S018 | [8] | SCREW | KOB |
| 19. | YW05PU0002S019 | [8] | LOCK WASHER | KOB |
| 20. | YW05PU0002S020 | [8] | WASHER | KOB |
