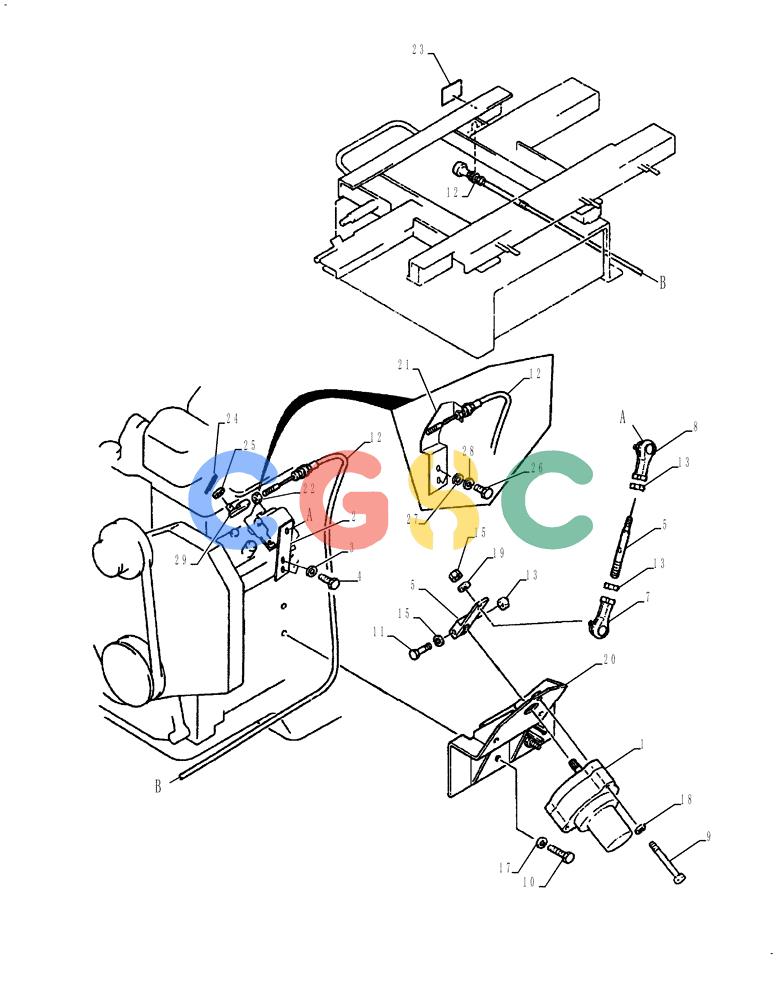

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-006) - ENGINE CONTROL ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
289 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J18864F1 | [1] | ENGINE CONTROL ASSY | |
| 1. | 2406U197F4 | [1] | SMALL ELECTRIC MOTOR | KOBACCELERATOR ASSY |
| . . | 2406U197F4R | [1] | REMAN-ELECTRIC MOTOR | KOBED180 BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 |
| . . | 2406U197F4C | [1] | CORE-ELECTRIC MOTOR | KOBReturn Number |
| 2. | 2418T26352 | [1] | PLATE | KOB |
| 3. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 4. | ZS18C06010 | [2] | SCREW,Hex, M6 x 10mm | KOBM06x1.0x10mm |
| 5. | 2420T8626 | [1] | ROD | KOB |
| 6. | 2406T3502 | [1] | LEVER | KOB |
| 7. | 2425R227D1 | [1] | BALL JOINT | KOBM06x1.0x38mm Long Superseded by part number: HR37C06000G1 |
| 8. | YN11M01013D1 | [1] | BALL JOINT | KOBM08x1.25x36mm Long (Left hand thread) Superseded by part number: HR37D08000G1 |
| 9. | ZS18C10080 | [3] | SCREW,Hex, M10 x 80mm | KOBM10x1.50x80mm |
| 10. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 11. | ZS23C06025 | [1] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 12. | 2406R535 | [1] | CABLE | KOBKill Control, 3640mm Long (143-5/16 in) |
| 13. | ZN18C06005 | [2] | NUT | KOBM06x1.0mm |
| 14. | 2420T7359 | [1] | NUT | KOBM08x1.25mm -- Left Hand Threads |
| 15. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 16. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 17. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 18. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 19. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 20. | 2416N7783 | [1] | BRACKET | KOB |
| 21. | 2418P51073 | [1] | BRACKET | KOB |
| 22. | ZN18C05004 | [1] | NUT | KOBM05x0.8mm |
| 23. | 2432T4615 | [1] | LABEL | KOBDecal -- 45x45mm Red triangle |
| 24. | 2419R9D1 | [1] | COTTER PIN | KOBOD 06mm x 21.2mm Long |
| 25. | ZW16X06000 | [1] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 26. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 27. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 28. | ZW26K08000 | [2] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| 29. | 2420R1142 | [1] | ROD | KOBM05x0.8x30mm Long |
| . . | 2406U197R100 | [1] | REPAIR KIT | KOBACCELERATOR |
