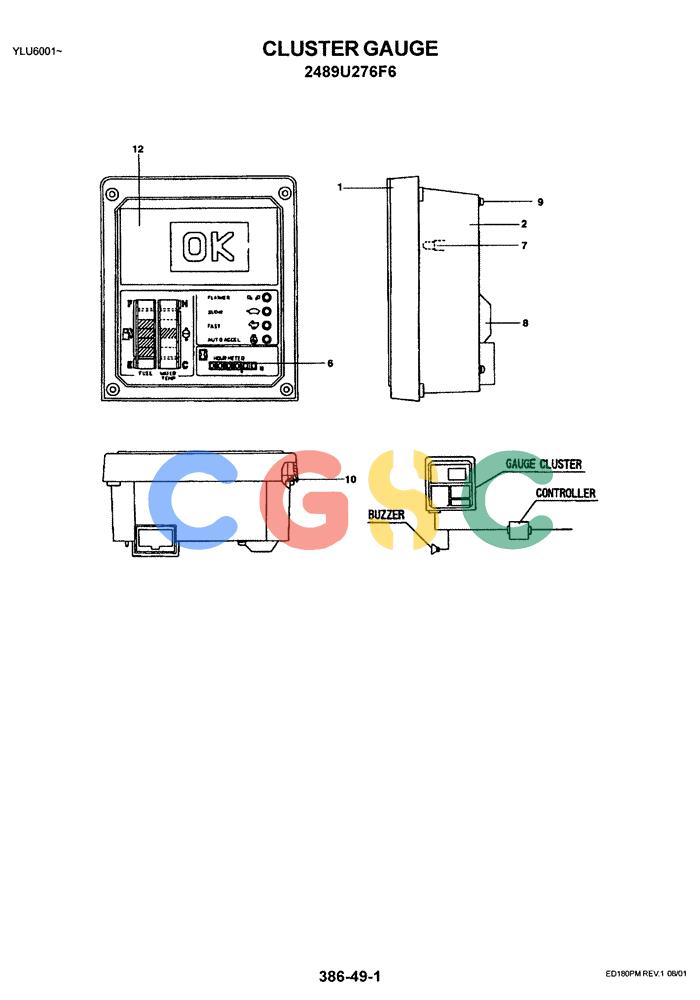

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-010) - CLUSTER GAUGE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
268 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2489U276F6 | [1] | GAUGE | KOBCLUSTER Superseded by part number: YN59S00027F1 |
| 1. | 2489U266S1 | [1] | COVER | KOBFRONT |
| 2. | 2489U266S2 | [1] | HOUSING | KOBWHITE |
| 6. | 2489U266S6 | [1] | METER | KOBHOUR ASSY |
| 7. | 2489U266S7 | [3] | BULB | KOBSOCKET ASSY |
| 8. | 2489U266S8 | [1] | PLATE | KOB |
| 9. | 2489U266S9 | [3] | SCREW | KOBTAPPING |
| 10. | 2489U266S10 | [2] | SELF-TAP SCREW | KOB |
| 12. | 2489U276S12 | [1] | SIGHTGLASS | KOB |
