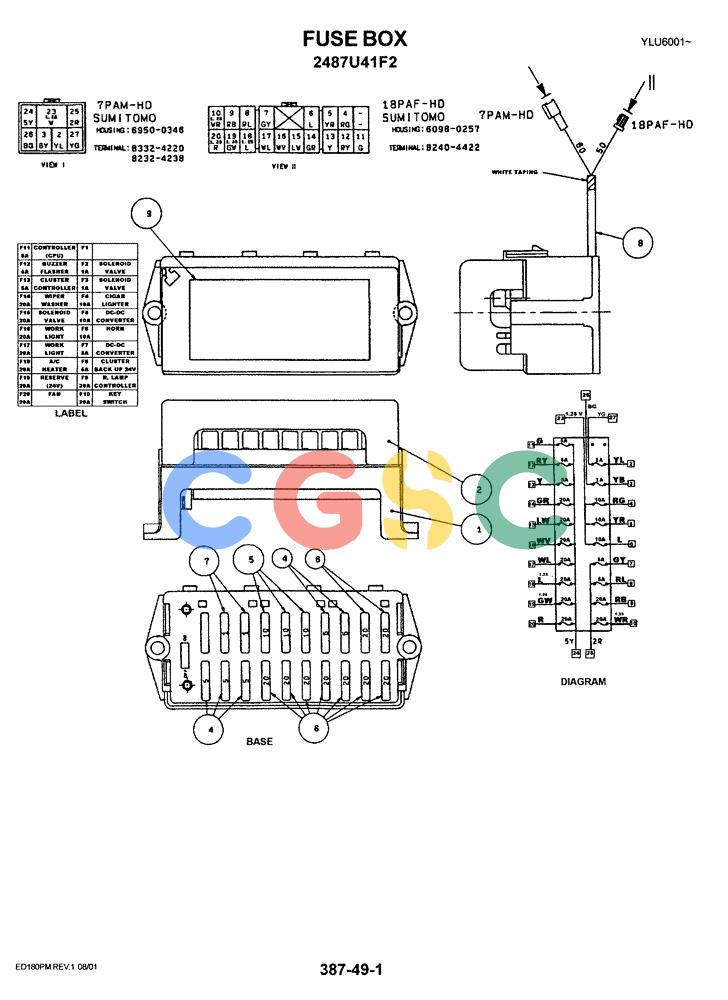

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-011) - FUSE BOX Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
912 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2487U41F2 | [1] | FUSE BOX | KOB |
| 1. | YN73E00001S001 | [1] | BASE | KOB |
| 2. | YN73E00001S002 | [1] | COVER | KOB |
| 4. | 2479R655S10 | [5] | FUSE | KOB5 Amp Superseded by part number: 2479U717S5 |
| 5. | 2479R655S8 | [3] | FUSE,10 Amp | KOB10 Amp Superseded by part number: 87522597 |
| 6. | 2479R655S9 | [9] | FUSE,20 Amp | KOB20 Amp |
| 7. | 2487U41S2 | [2] | FUSE | KOB1 Amp Superseded by part number: 86017760 |
| 8. | 2487U41S3 | [1] | HARNESS | KOB |
| 9. | 2487U41S1 | [1] | LABEL | KOB |
