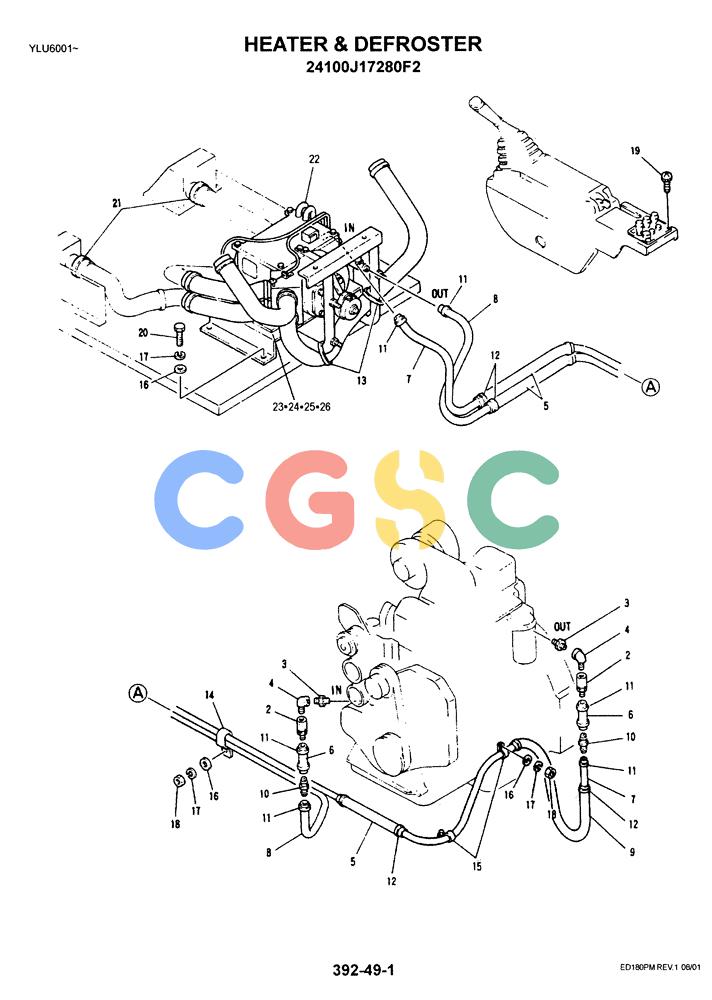

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-012) - HEATER & DEFROSTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1006 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17280F2 | [1] | DEFROSTER ASSY, HEATER | |
| 2. | 2444Z1630 | [2] | FITTING | KOBConnector -- 3/8" PT Hose |
| 3. | 2444T4676 | [2] | HYD CONNECTOR | KOB |
| 4. | ZG32B06000 | [2] | ELBOW | KOB |
| 5. | YN21MU1001D1 | [4] | GUARD, HOSE (L=350MM) | |
| 6. | R18T0026D51 | [2] | FLEXIBLE HOSE | KOBID 12 x OD 22 x 80mm |
| 7. | 2444Z2220D11 | [1] | HOSE | KOB(L=3200MM) |
| 8. | 2444Z2220D4 | [1] | HOSE | KOB(L=2000MM) |
| 9. | YN21MU1001D2 | [2] | GUARD, HOSE (L=600MM) | |
| 10. | 2418T10455 | [2] | PIPE | KOB |
| 11. | ZC15X02000 | [8] | CLIP | KOB Superseded by part number: ZC16X02000 |
| 12. | 2432Z290D2 | [6] | CLIP | KOBWire Ties -- 100mm Long Superseded by part number: YT50C01100P1 |
| 13. | 2432Z290D5 | [2] | CLIP | KOBWire Ties -- 365mm Long Superseded by part number: PY01P01043D8 |
| 14. | 2432R226D12 | [1] | CLIP | KOBClamp, Double -- ID 24 x 85mm Long Superseded by part number: ZC48X24014 |
| 15. | 2432R225D10 | [2] | CLIP | KOBClamp, Single -- ID 25.5 x 58.75mm Long Superseded by part number: ZC46X25011 |
| 16. | ZW16X10000 | [7] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 17. | ZW26C10000 | [7] | WASHER, LOCK (M10) | |
| 18. | ZN18C10008 | [3] | NUT | KOBM10x1.50mm |
| 19. | 2420R1092D2 | [2] | SCREW,M5 x 16mm | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) Superseded by part number: ZM46C05016 |
| 20. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 21. | 2432Z938 | [2] | CLAMP | KOB |
| 22. | 24100N8588F2 | [1] | HEATER ASSY (SEE FIGURE 05-013) | |
| 23. | ZS18C06016 | [4] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 24. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 25. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 26. | ZW26C08000 | [4] | WASHER, LOCK (M8) | |
