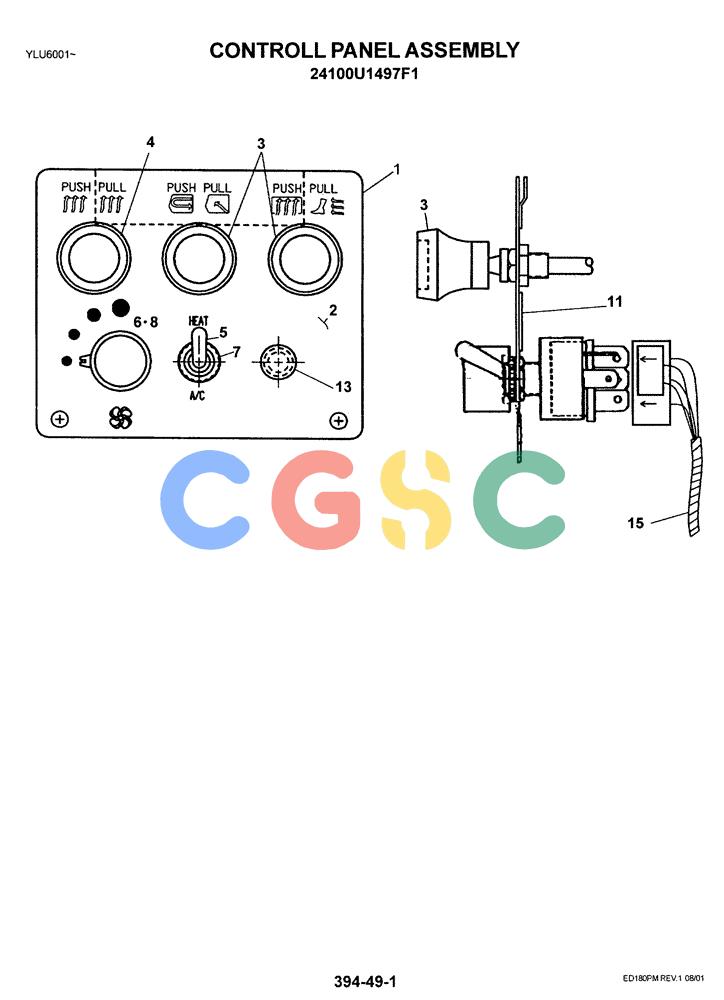

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-014) - CONTROL PANEL ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
812 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100U1497F1 | [1] | CONTROL PANEL ASSY | |
| 1. | 24100U1497S1 | [1] | SPRING, LEAF | KOB |
| 2. | 24100U1497S2 | [1] | LABEL | KOB(CONTROL PANEL) |
| 3. | 24100U1497S3 | [2] | FLEXIBLE CONTROL | KOBCABLE |
| 4. | 24100U1497S4 | [1] | CABLE | KOBCABLE, CONTROL |
| 5. | 24100U1497S5 | [1] | SWITCH | KOBTOGGLE (SPST) |
| 6. | 24100U1497S6 | [1] | SWITCH | KOBROTARY (3-SPD) |
| 7. | 24100U1497S7 | [1] | NUT | KOB(SWITCH RETAINER) |
| 8. | 24100U1497S8 | [1] | KNOB | KOB |
| 11. | 24100U1497S11 | [1] | LABEL | KOBLABEL (IDENTIFICATION) |
| 13. | 24100U1497S13 | [1] | PLUG | KOB |
| 15. | 24100U1497S15 | [1] | HARNESS ASSY, WIRING | |
