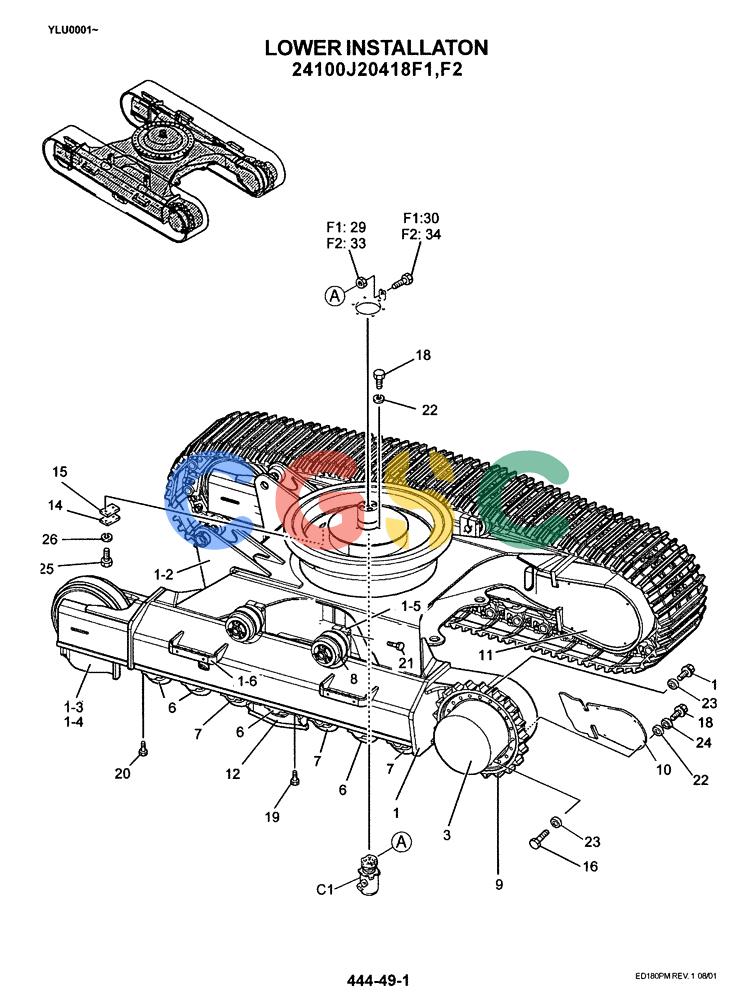

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (07-001) - LOWER INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
964 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J20418F1 | [1] | LOWER INSTAL (~3/24/00) | |
| . . | 24100J20418F2 | [1] | LOWER INSTAL (3/24/00~) | |
| 1. | YM02FU0003P1 | [1] | FRAME ASSY, LOWER | |
| 1-2. | 2416N7963 | [1] | DOZER MOUNT | |
| 1-3. | YN07FU1003P1 | [2] | GUIDE | KOB(LH) (weld-on) |
| 1-4. | YN07FU1004P1 | [2] | GUIDE | KOB(RH) (weld-on) |
| 1-5. | 2416P19709 | [4] | SUPPORT | KOB(weld-on) |
| 1-6. | YN41CU0009P1 | [4] | STEP (weld-on) | |
| 3. | 2441U1053F1 | [2] | MOTOR, HYDRAULIC | KOB |
| 4. | 24100N10081F1 | [2] | IDLER | KOB |
| 5. | 24100J20523F1 | [1] | HYDRAULIC SWIVEL | KOB(~3/24/00), F1 ONLY |
| 6. | 24100N10082F1 | [8] | TRACK ROLLER | KOBLOWER |
| 7. | 24100N10083F1 | [6] | TRACK ROLLER | KOBLOWER |
| 8. | 24100N10084F1 | [4] | ROLLER | KOBUPPER |
| 9. | 2404N437 | [2] | SPROCKET,21 teeth | KOB |
| 10. | 2414P10888 | [1] | COVER | KOB(LH) |
| 11. | 2414P10889 | [1] | COVER | KOB(RH) |
| 12. | 2422N1955 | [2] | GUIDE | KOB |
| 13. | 2444P803 | [2] | LUBE NIPPLE,5/8" - 18 x 64mm L, 19mm Hex | KOB5/8" - 18 UNF, Straight |
| 14. | 2422T556 | [1] | PLATE | KOB90x50x Th 06mm |
| 15. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm -- Rubber |
| 16. | ZS13C20060 | [40] | SCREW | KOBM20x2.50x60mm |
| 17. | ZS13C20065 | [40] | SCREW | KOBM20x2.50x65mm |
| 18. | ZS13C12025 | [13] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 19. | ZS23C20045 | [8] | CAP,Hex Socket Head, M20 x 45mm | KOBScrew -- M20x2.5x45mm |
| 20. | ZS13C20070 | [56] | SCREW | KOBM20x2.50x70mm |
| 21. | 2420P1613D5 | [4] | BOLT,Hex, M24 x 2 x 75mm | KOBM24x2.0x75mm |
| 22. | ZW11X12000 | [13] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 23. | ZW13H20000 | [65] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 24. | ZW22X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 25. | ZS13C10014 | [2] | SCREW | KOBM10x1.50x14mm Superseded by part number: ZS18C10014 |
| 26. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 28. | ZS13F20070 | [36] | SCREW | KOBM20x1.50x70mm |
| 29. | ZS13C16110 | [1] | SCREW | KOBM16x2.0x110mm, F1 ONLY |
| 30. | ZN13C16013 | [1] | NUT | KOBM16x2.0mm, F1 Only |
| 31. | 24100N8102F1 | [1] | SLEWING RING | KOB Superseded by part number: YM40FU0002F1 |
| 32. | 24100J20523F2 | [1] | HYDRAULIC SWIVEL | KOB(3/24/00~), F2 ONLY Superseded by part number: 24100J20523F3 |
| 33. | ZS13C20110 | [1] | CAPSCREW | KOBSCREW M20x2.50x110mm, F2 ONLY |
| 34. | ZN13C20016 | [1] | NUT | KOBM20x2.50mm, F2 Only |
