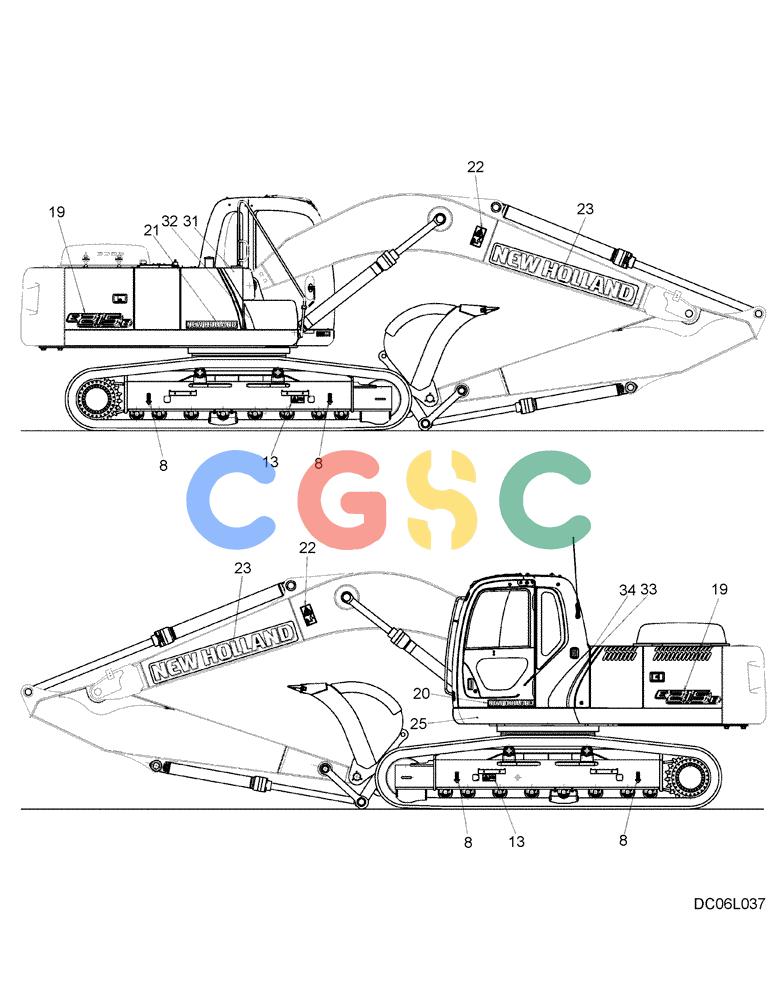

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (7.026[03]) - NAME PLATE INSTALLATION, (EXTERIOR) (YN22TU0023F1), FIGURE 3 OF 3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
446 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8. | YN20T01963P1 | [4] | LABEL | KOBDecal, Point Anchor |
| 13. | YN20T01968P1 | [2] | LABEL | KOBDecal, Pinch point and see manual |
| 19. | YN22T00371P1 | [2] | LABEL | KOBDecal, E215B logo |
| 20. | YN22T00364P1 | [1] | DECAL | KOBDecal, New Holland logo 597mm Long (23-1/5 in) |
| 21. | YN22T00366P1 | [2] | IDENTITY PLATE | KOBDecal, New Holland logo |
| 22. | YN20T01973P1 | [2] | LABEL | KOBDecal, Caution bucket and bystanders |
| 23. | YN22T00396P1 | [2] | IDENTITY PLATE | KOBDecal, New Holland logo Superseded by part number: YN22T00369P1 |
| 25. | YN20T01978P1 | [1] | LABEL | KOBDecal, Graphic Stripe 1485x209mm Long |
| 31. | YN20T01984P1 | [1] | LABEL | KOBDecal, Graphic Stripe |
| 32. | YN20T01985P1 | [1] | LABEL | KOBDecal, Graphic Stripe (343x139mm) |
| 33. | YN20T01986P1 | [1] | LABEL | KOBDecal, Graphic Stripe (343x139mm) |
| 34. | YN20TU1249P1 | [1] | LABEL | KOBDecal, Graphic Stripe (737x522mm) |
