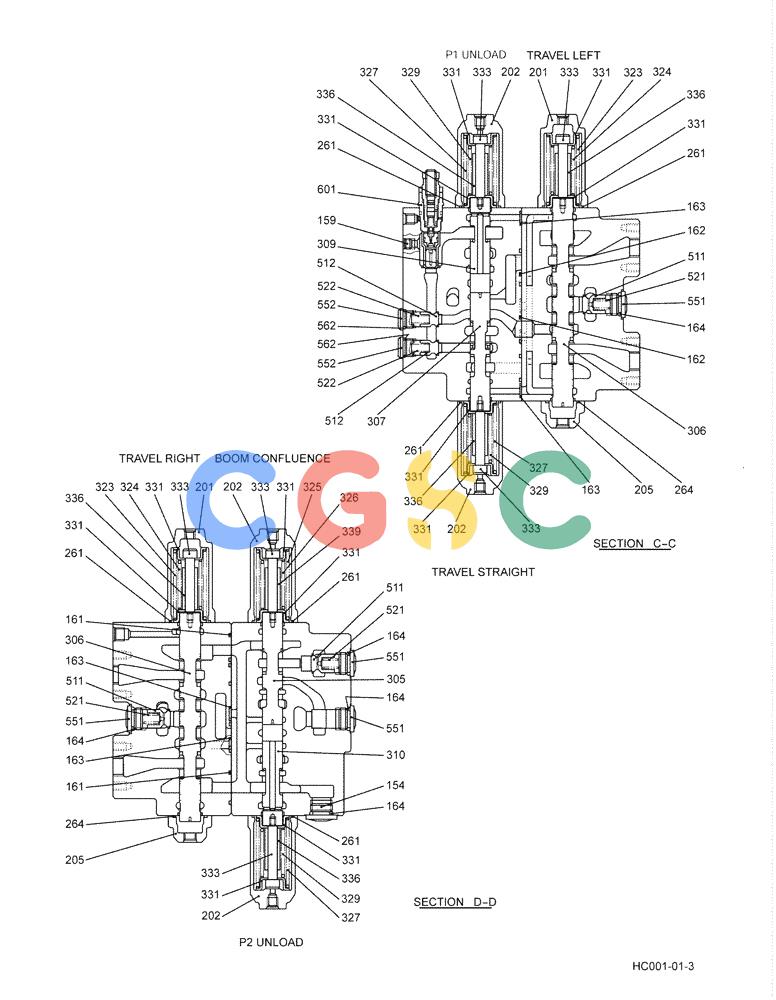

| . . | YN30V00101F1 | [1] | VALVE, CONTROL | KOBAssembly, Figure 3 of 5, Start Serial: 0 Superseded by part number: YN30V00101F6 |
| 154. | YN30V00001S154 | [3] | PLUG | KOB |
| 159. | NA | [1] | NOT SERVICED | FORPLug |
| 161. | ZD12P03800 | [7] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 162. | ZD12G03000 | [15] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 163. | ZD12P01500 | [11] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 164. | ZD12P02400 | [19] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 201. | YN30V00101S201 | [5] | GUARD | SMCover |
| 202. | YN30V00101S202 | [4] | GUARD | SMCover |
| 205. | YN30V00001S205 | [7] | COVER | KOB |
| 261. | ZD12G05000 | [12] | O-RING,49.40mm ID x 55.60mm OD x 3.10mm | KOBID 49.40 ± 0.45 x OD 55mm |
| 264. | ZD12G04000 | [10] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 305. | YN30V00101S305 | [1] | SPOOL | SM Superseded by part number: YN30V00101R140 |
| 306. | YN30V00101S306 | [2] | REPAIR KIT | KOBSpool Superseded by part number: YN30V00101R150 |
| 307. | YN30V00101S307 | [1] | SPOOL | KOBSpool Superseded by part number: YN30V00101R170 |
| 309. | YN30V00101S309 | [1] | SPOOL | SM Superseded by part number: YN30V00101R190 |
| 310. | YN30V00101S310 | [1] | SPOOL | SM Superseded by part number: YN30V00101R200 |
| 311. | YN30V00101S311 | [1] | SPOOL | SM Superseded by part number: YN30V00101R210 |
| 323. | 2436U1165S371 | [3] | SPRING | KOB |
| 324. | 2436U1165S372 | [3] | SPRING | KOB |
| 325. | YN30V00079S323 | [1] | SPRING | KOB |
| 326. | YN30V00101S326 | [1] | SPRING | SM |
| 327. | YN30V00101S327 | [3] | SPRING | SM |
| 329. | YN30V00101S329 | [3] | SPRING | SM |
| 331. | 2436U1443S332 | [24] | SPRING SEAT | KOB |
| 333. | 2436U1165S336 | [12] | BOLT | KOB |
| 336. | 2436U1165S335 | [10] | STOP | KOB |
| 339. | YN30V00001S339 | [1] | STOP | KOB |
| 511. | YN30V00101S341 | [11] | HYDRAULIC VALVE | SMPoppet |
| 512. | YW30V00001S513 | [2] | POPPET | KOB |
| 521. | 2436U1165S521 | [11] | SPRING | KOB |
| 522. | YN30V00101S522 | [2] | SPRING | SM |
| 551. | YN30V00001S551 | [13] | PLUG | KOB |
| 552. | YW30V00001S556 | [2] | PLUG | KOB |
| 562. | ZD12P02000 | [2] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 601. | YN22V00001F8 | [1] | HYDRAULIC VALVE | SMVALVE ASSY, MAIN RELIEF, Was YN22V00034F1 |
| K. | YN30V00101R140 | [1] | REPAIR KIT | KOBContains Items 305, 325, 326, 331x2, 333 & 339 |
| K. | YN30V00101R150 | [1] | REPAIR KIT | KOBContains Items 306, 323, 324, 331x2, 333 & 336 |
| K. | YN30V00101R170 | [1] | REPAIR KIT | KOBContains Items 307, 327, 329, 331x2, 333 & 336 |
| K. | YN30V00101R190 | [1] | REPAIR KIT | KOBContains Items 309, 327, 329, 331x2, 333 & 336 |
| K. | YN30V00101R200 | [1] | REPAIR KIT | KOBContains Items 310, 327, 329, 331x2, 333 & 336 |
| K. | YN30V00101R210 | [1] | REPAIR KIT | KOBContains Items 311, 323, 324, 331x2, 333 & 336 |
