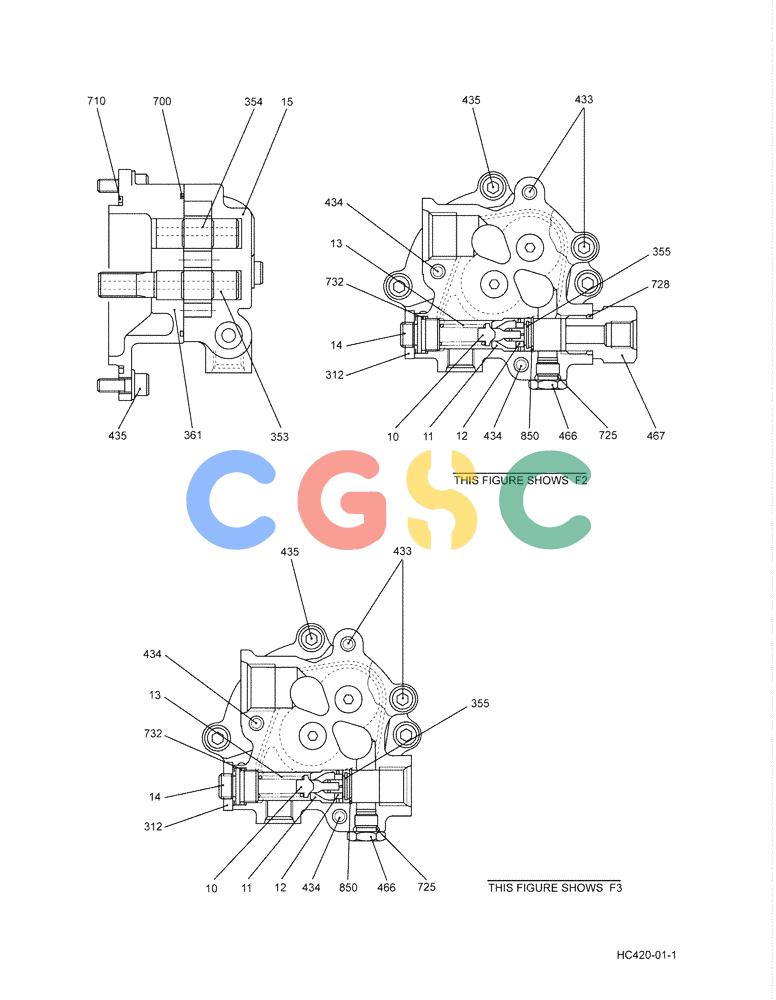

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (8.019[00]) - PUMP ASSEMBLY, GEAR (YN10V00014F2 & YN10V00014F3) (HC420) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
515 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN10V00014F2 | [1] | PUMP | KOBAssembly, Gear |
| . . | YN10V00014F2R | [1] | REMAN-HYD PUMP | RACE215B CRAWLER EXCAVATOR, TIER 3 (NA), Assembly, Gear (1/07-) |
| . . | YN10V00014F2C | [1] | CORE-HYDRAULIC PUMP | RACReturn Number |
| . . | YN10V00014F3 | [1] | PUMP | KOBAssembly, Gear |
| 10. | NA | [1] | NOT SERVICED | FORPoppet |
| 12. | YN10V00014S012 | [1] | RING | KOB |
| 13. | YN10V00014S013 | [1] | SPRING | KOB |
| 14. | YN10V00014S014 | [1] | SCREW | KOB |
| 312. | YN10V00006S312 | [1] | LOCK NUT | KOBM14x1.50mm |
| 355. | YN10V00006S355 | [1] | FILTER | KOB |
| 433. | YN10V00006S433 | [2] | SOCKET | KOBM08 |
| 434. | YN10V00006S434 | [2] | SOCKET | KOBM08 |
| 435. | YN10V00014S435 | [4] | BOLT | KOBM10 |
| 466. | 2441U667S466 | [1] | PLUG | KOB1/4" PF |
| 467. | YN10V00006S467 | [1] | ADAPTER | KOB1/2" x 3/8" PF -- (F2 Only) |
| 700. | YN10V00006S700 | [1] | RING | KOB |
| 710. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOBO-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 725. | ZD12P01100 | [1] | O-RING | KOBID 10.80 ± 0.18 x OD 15mm |
| 728. | ZD12P01800 | [1] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm -- (F2 Only) |
| 732. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 850. | ZR26X01800 | [1] | RING | KOBReatining -- ID 18 x OD 19.5 x Th 1.0mm |
| K. | YN10V00014R300 | [1] | REPAIR KIT | KOBContains Items 10X1, 11X1, 15X1, 353X1, 354X1, 361X1 |
