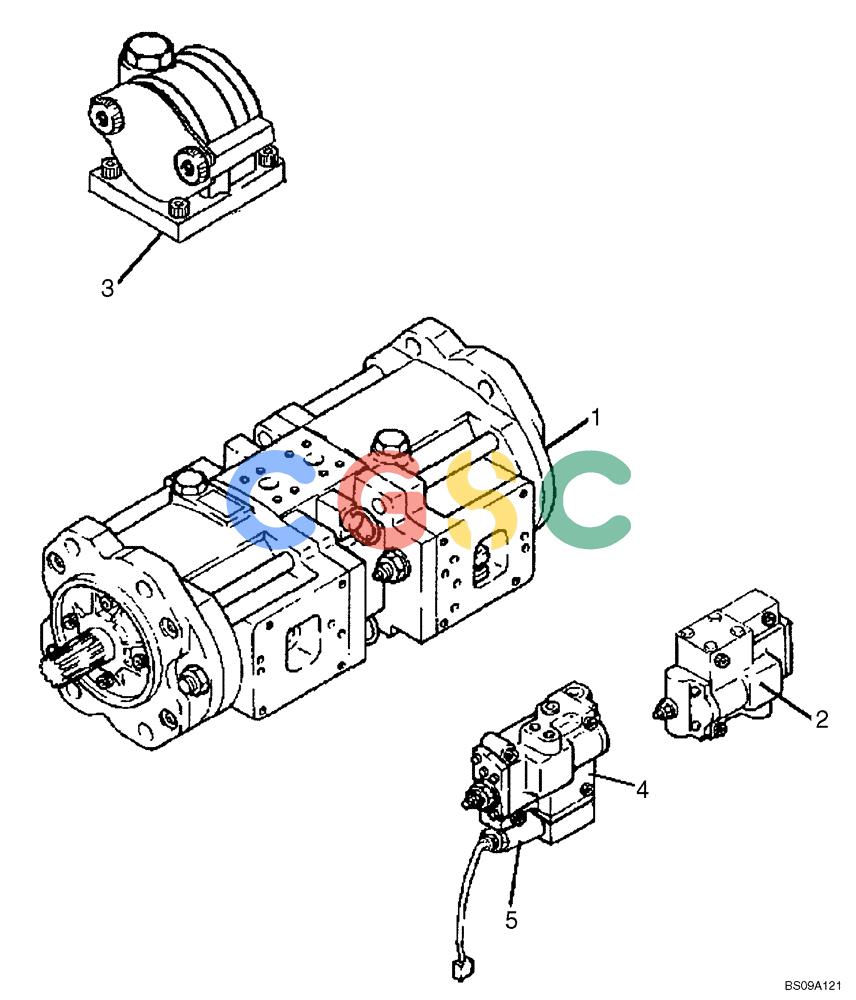

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (12-023) - PUMP ASSEMBLY (2437U542F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
441 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2437U542F2 | [1] | PUMP | KOB |
| 1. | 2437U544F1 | [1] | See Figure 12-045 | |
| 2. | 2436U2875F1 | [1] | REGULATOR | KOBSee Figure 12-021 |
| 3. | 2437U549 | [1] | PTO -- Cast Iron (Use oring ZD12G09500 at attach point) | |
| 4. | 2436U2874F1 | [1] | REGULATOR | KOBIncls. Refs. 4-1, See Figure 12-020 Superseded by part number: 2436U2878F1 |
| 5. | 2436R884F3 | [1] | VALVE | KOBSee Figure 12-019 |
