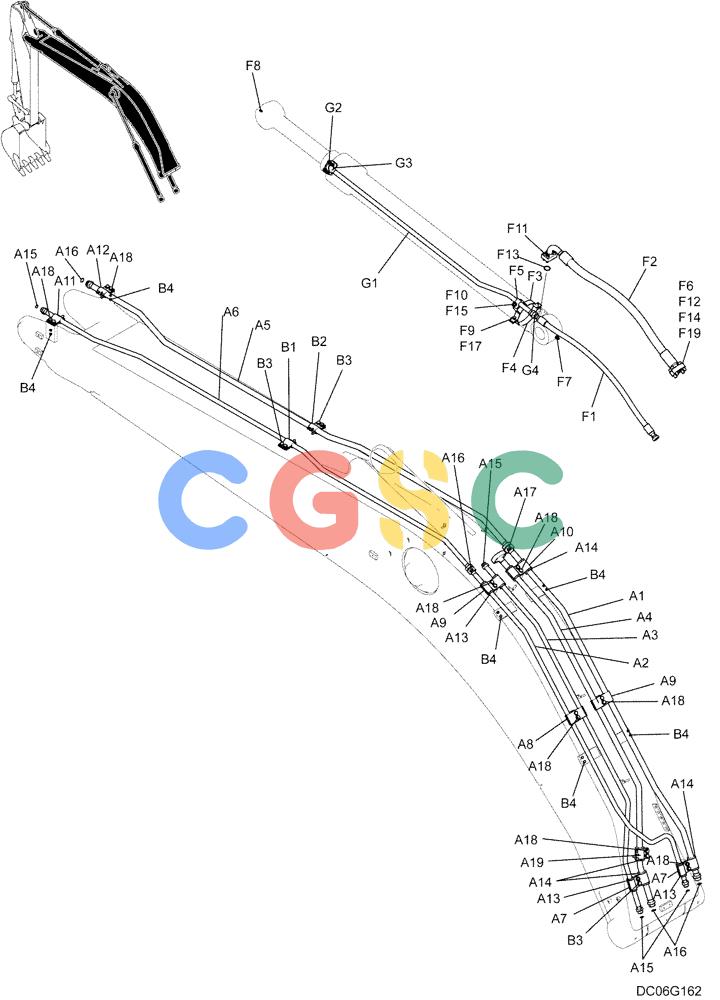

| A1. | YN42H02569P1 | [1] | TUBE,34.0 mm OD x 2271.4, 742.8 mm Length | KOBTUBE |
| A2. | YN42H02570P1 | [1] | TUBE,27.2 mm OD x 2271.4, 742.8 mm Length | KOBTUBE |
| A3. | YN42H02571P1 | [1] | TUBE,27.2 mm OD | KOBTUBE |
| A4. | YN42H02665P1 | [1] | TUBE,34.0 mm OD | KOB |
| A5. | YN42H02573P1 | [1] | TUBE,34.0 mm OD | KOB |
| A6. | YN42H02574P1 | [1] | TUBE,27.2 mm OD | KOB |
| A7. | YN42H02348P1 | [4] | CLAMP | KOBDouble -- 145.5x65x23.5mm |
| A8. | YN42H02349P1 | [2] | CLAMP | KOB |
| A9. | YN42H02351P1 | [4] | CLAMP | KOB Superseded by part number: 84528894 |
| A10. | YN42H02353P1 | [2] | CLAMP | KOBDouble -- 150x65x26mm Superseded by part number: 47373433 |
| A11. | YN42H02355P1 | [2] | CLAMP | KOB Superseded by part number: 84528898 |
| A12. | YN42H02357P1 | [2] | CLAMP,37mm ID, J Type | KOBØ18.5x65x52mm Superseded by part number: 87343093 |
| A13. | YN42H02319P1 | [4] | BUSHING,27.2mm ID x 34mm OD x 83mm L | SMID 27.20 x OD 34 x 83mm Long Superseded by part number: 84354627 |
| A14. | YN43H01524P1 | [5] | BUSHING,34mm ID x 53mm OD x 83mm L | KOBID 34 x OD 43 x 83mm Long |
| A15. | ZD12A01800 | [4] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| A16. | ZD12A02100 | [4] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
| A17. | YY42H01313P1 | [1] | O-RING,29.87mm ID x 33.43mm OD x 1.78mm | KOBID 29.87 ± 0.15 x OD 33.43mm |
| A18. | ZM73C12035 | [16] | BOLT,M12x35mm - Course Thread | KOBM12x1.75x35mm (Incls. Washer) |
| A19. | YN42H02363P1 | [2] | CLAMP,46mm ID, J Type | KOBØ23x65x52mm |
| B4. | YN64H01391D1 | [12] | CAP | KOB |
| F1. | ZX20H12115 | [1] | HOSE | KOB1150mm Long (45-17/64 in) |
| F2. | YN42H02683D1 | [1] | HOSE | KOB |
| F3. | YN42H02628P1 | [1] | BAND | KOB |
| F4. | LC42H01750P1 | [1] | BAND | KOB Superseded by part number: LC42H02088P1 |
| F5. | YN43H01097P1 | [1] | CLAMP | KOBSingle -- 58x30x38mm (Ø28mm) |
| F6. | ZE13X20001 | [2] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) Superseded by part number: ZE13X20000 |
| F7. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| F8. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| F9. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| F10. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| F11. | ZS28C12040 | [4] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| F12. | ZS28C14050 | [4] | CAPSCREW,Hex Socket Head, M14 x 50mm | KOBSCREW M14x2.0x50mm |
| F13. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| F14. | ZD12P03800 | [1] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| F15. | ZW16H12000 | [1] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| F17. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| F19. | ZW26K14000 | [4] | LOCK WASHER | KOBID 14 x OD 21.8 x Th 3.5mm |
| G1. | YN42H02333P1 | [1] | TUBE,27.2 mm OD x 1817.5, 62 mm Length | KOB |
