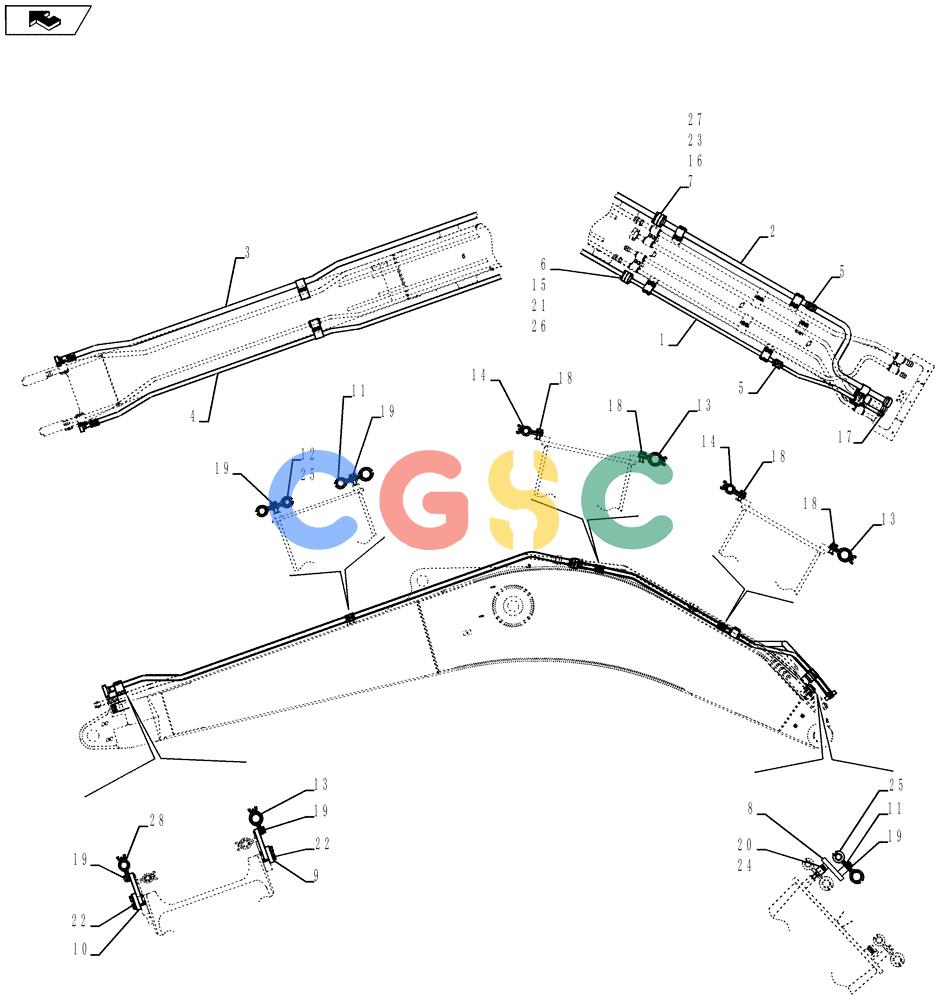

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (03-007[00]) - HYDRAULIC LINES. BOOM (2 WAY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
220 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN42H02611P1 | [1] | TUBE,27.2 mm OD | KOB |
| 2. | YN42H02612P1 | [1] | TUBE,42.7 mm OD | KOB |
| 3. | YN42H02613P1 | [1] | TUBE,42.7 mm OD x 3779.2, 280.3 mm Length | KOB |
| 4. | YN42H02614P1 | [1] | TUBE,34.0 mm OD x 3779.2, 280.3 mm Length | KOB |
| 5. | YN42H02582P1 | [2] | PLUG | KOB1" PFx31mm Long (Incls. O-Ring ZD12P02900) |
| . . | ZD12P02900 | [1] | O-RING | KOB(Part of YN42H02582P1), ID 28.70 ± 0.29 x OD 35mm, Not Shown |
| 6. | ZE13X16000 | [2] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 7. | ZE13X20001 | [2] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) Superseded by part number: ZE13X20000 |
| 8. | YN42H02405P1 | [1] | BRACKET | KOB Superseded by part number: YN42H02405P2 |
| 9. | YN42H02409P1 | [1] | BRACKET | KOB |
| 10. | YN42H02410P1 | [1] | BRACKET | KOB |
| 11. | YN42H02348P1 | [4] | CLAMP | KOBDouble -- 145.5x65x23.5mm |
| 12. | YN42H02351P1 | [2] | CLAMP | KOB Superseded by part number: 84528894 |
| 13. | YN42H02363P1 | [6] | CLAMP,46mm ID, J Type | KOB |
| 14. | YN42H02355P1 | [4] | CLAMP | KOB Superseded by part number: 84528898 |
| 15. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 16. | ZD12P03800 | [1] | O-RING | KOB |
| 17. | ZD12A02100 | [1] | O-RING | KOB |
| 18. | ZM73C12030 | [8] | BOLT,M12x30mm - Course Thread | KOB |
| 19. | ZM73C12035 | [10] | BOLT,M12x35mm - Course Thread | KOB |
| 20. | ZS18C12055 | [2] | SCREW,Hex, M12 x 55mm | KOB |
| 21. | ZS28C12050 | [4] | CAPSCREW,Hex Socket Head, M12 x 50mm | KOBSCREW |
| 22. | ZM73C12040 | [4] | BOLT,M12x40mm - Course Thread | KOB |
| 23. | ZS28C14050 | [4] | CAPSCREW,Hex Socket Head, M14 x 50mm | KOBSCREW |
| 24. | ZW16H12000 | [2] | WASHER | KOB |
| 25. | YN42H02319P1 | [2] | BUSHING,27.2mm ID x 34mm OD x 83mm L | SM Superseded by part number: 84354627 |
| 26. | ZW26K12000 | [4] | LOCK WASHER | KOB |
| 27. | ZW26K14000 | [4] | LOCK WASHER | KOB |
| 28. | YN42H02357P1 | [2] | CLAMP,37mm ID, J Type | KOB Superseded by part number: 87343093 |
