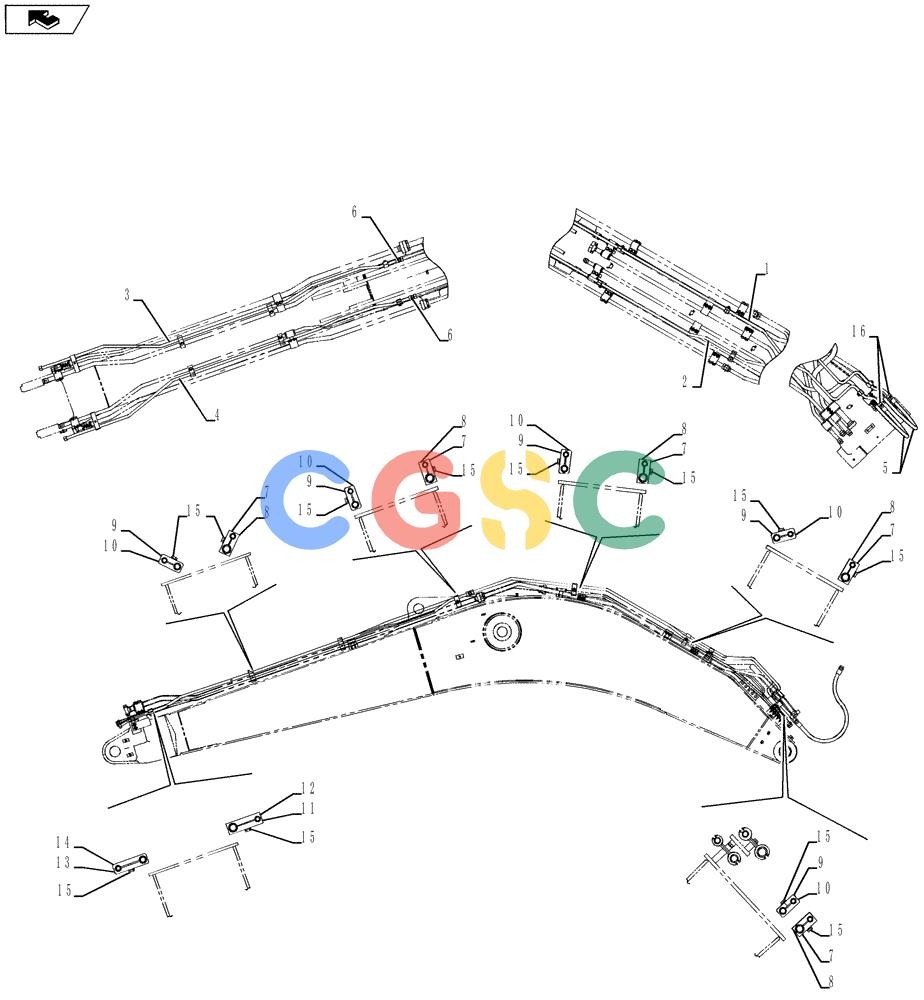

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (03-008[00]) - HYDRAULIC LINES,BOOM (ROT) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
201 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN42H02638P1 | [1] | TUBE,22.0 mm OD | KOB Superseded by part number: YN42H03116P1 |
| 2. | YN42H02580P1 | [1] | TUBE,22.0 mm OD | KOB Superseded by part number: YN42H03117P1 |
| 3. | YN42H02521P1 | [1] | TUBE,22.0 mm OD x 3157, 147.5 mm Length | KOB |
| 4. | YN42H02522P1 | [1] | TUBE,22.0 mm OD x 3157, 147.5 mm Length | KOB |
| 5. | ZX28N12110 | [2] | HOSE | KOB |
| 6. | ZA23B22000 | [2] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| 7. | YN42H01056P1 | [6] | CLAMP | KOB |
| 8. | YN42H01057P1 | [6] | CLAMP | KOB |
| 9. | YN42H01058P1 | [6] | CLAMP | KOB |
| 10. | YN42H01059P1 | [6] | CLAMP | KOB |
| 11. | YN42H02417P1 | [1] | CLAMP | KOB |
| 12. | YN42H02418P1 | [1] | CLAMP | KOB |
| 13. | YN42H02419P1 | [1] | CLAMP | KOB |
| 14. | YN42H02420P1 | [1] | CLAMP | KOB |
| 15. | ZM73C12045 | [14] | BOLT,M12x45mm - Course Thread | KOBM12x1.75x45mm (Incls. Washer) |
| 16. | 2444T2158 | [2] | HYD CONNECTOR | KOB |
