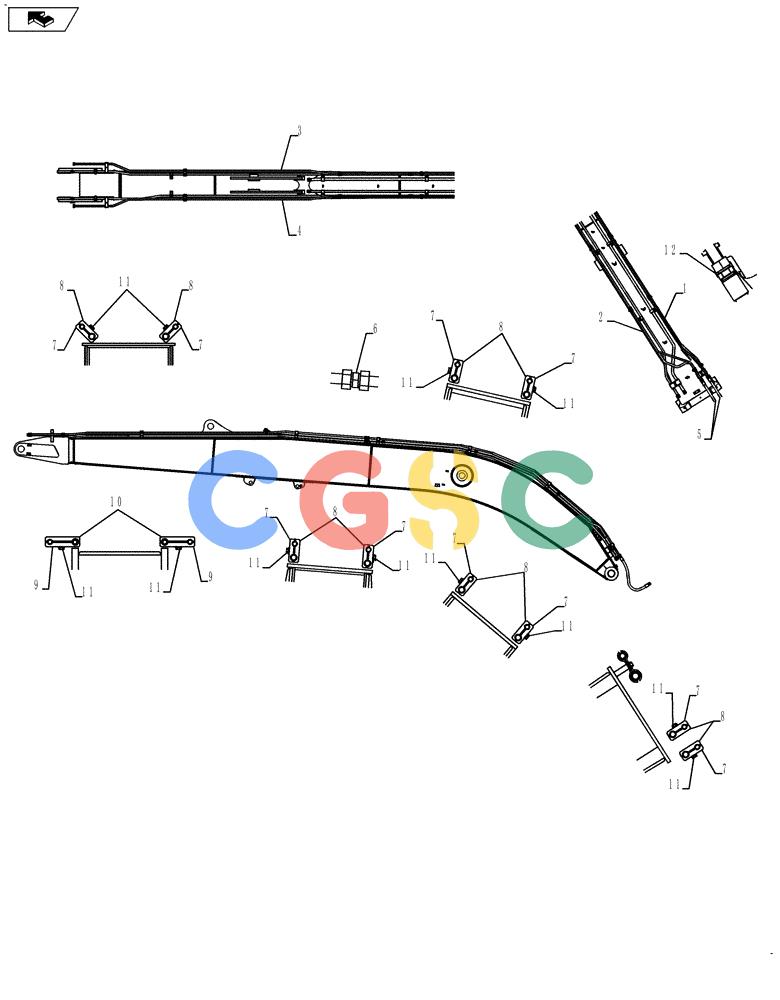

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (03-010[00]) - BOOM HYD LINES (50 FT LONG REACH ROT) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
812 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN42HU1007P1 | [1] | HYD. TUBE | KOB |
| 2. | YN42HU1008P1 | [1] | HYD. TUBE | KOB |
| 3. | YN42HU1009P1 | [1] | HYD. TUBE | KOB |
| 4. | YN42HU1010P1 | [1] | HYD. TUBE | KOB |
| 5. | ZX28N12110 | [2] | HOSE | KOB |
| 6. | ZA23B22000 | [2] | HYD CONNECTOR | KOB |
| 7. | YN42H01058P1 | [12] | CLAMP | KOB |
| 8. | YN42H01059P1 | [12] | CLAMP | KOB |
| 9. | YN42H02419P1 | [2] | CLAMP | KOB |
| 10. | YN42H02420P1 | [2] | CLAMP | KOB |
| 11. | ZM73C12045 | [14] | BOLT,M12x45mm - Course Thread | KOB |
| 12. | 2444T2158 | [2] | HYD CONNECTOR | KOB |
