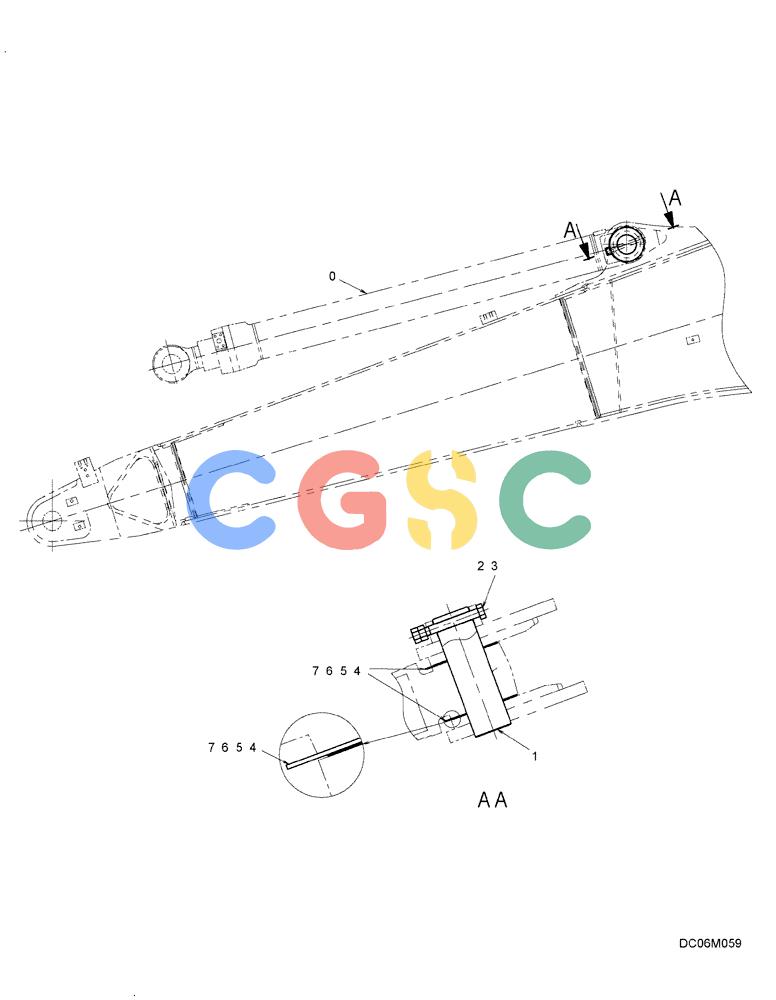

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (03-015[00]) - ARM CYLINDER INSTALL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
940 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YN01V00175F1 | [1] | CYLINDER,Double Acting, 95mm Rod, 1558mm Stroke | KOBSee Figure 03-017 |
| . . | YN01V00175F1R | [1] | REMAN-HYD CYLINDER | KOBSK210-8 TIER 3 ROPS (NA) ASN YQ12U4800 |
| . . | YN01V00175F1C | [1] | CORE-HYD CYLINDER | KOBReturn Number |
| 1. | YN02B01722P1 | [1] | PIN,85mm OD x 277mm L | KOB |
| 2. | HS18C16150G2 | [1] | SCREW | KOB |
| 3. | ZN18C16013 | [2] | NUT | KOB |
| 4. | YN02B01417D1 | [2] | SHIM,87mm ID x 140mm OD x 2mm Thk | KOBTh 2.0mm |
| 5. | B16T0442D62 | [1] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOBTh 1.6mm |
| 6. | B16T0442D77 | [1] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOBTh 0.9mm |
| 7. | B16T0442D78 | [1] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOBTh 0.5mm |
