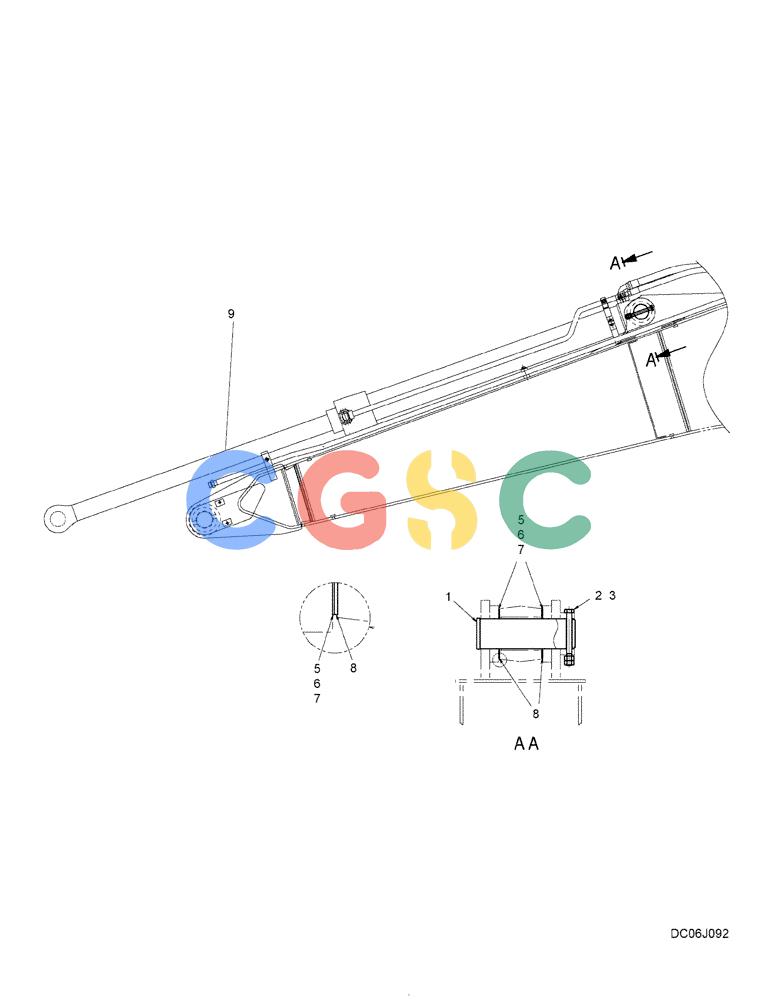

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (03-016[00]) - ARM CYLINDER INSTALL (LONG REACH) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
182 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN02B01466P1 | [1] | PIN,85mm OD x 280mm L | KOBOD 85 x 280mm Long |
| 2. | HS18C16150G2 | [1] | SCREW | KOBM16x2.0x150mm |
| 3. | ZN18C16013 | [2] | NUT | KOBM16x2.0mm |
| 5. | B16T0442D78 | [1] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOBID 87 x OD 140 x Th 0.5mm |
| 6. | B16T0442D77 | [1] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOBID 87 x OD 140 x Th 0.9mm |
| 7. | B16T0442D62 | [1] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOBID 87 x OD 140 x Th 1.6mm |
| 8. | YN02B01417D1 | [2] | SHIM,87mm ID x 140mm OD x 2mm Thk | KOBID 87 x OD 140 x Th 2.0mm |
| 9. | YN01V00132F4 | [1] | HYDRAULIC CYLINDER | KOBArm |
