纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-004[02]) - CRANKCASE COVERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
681 次

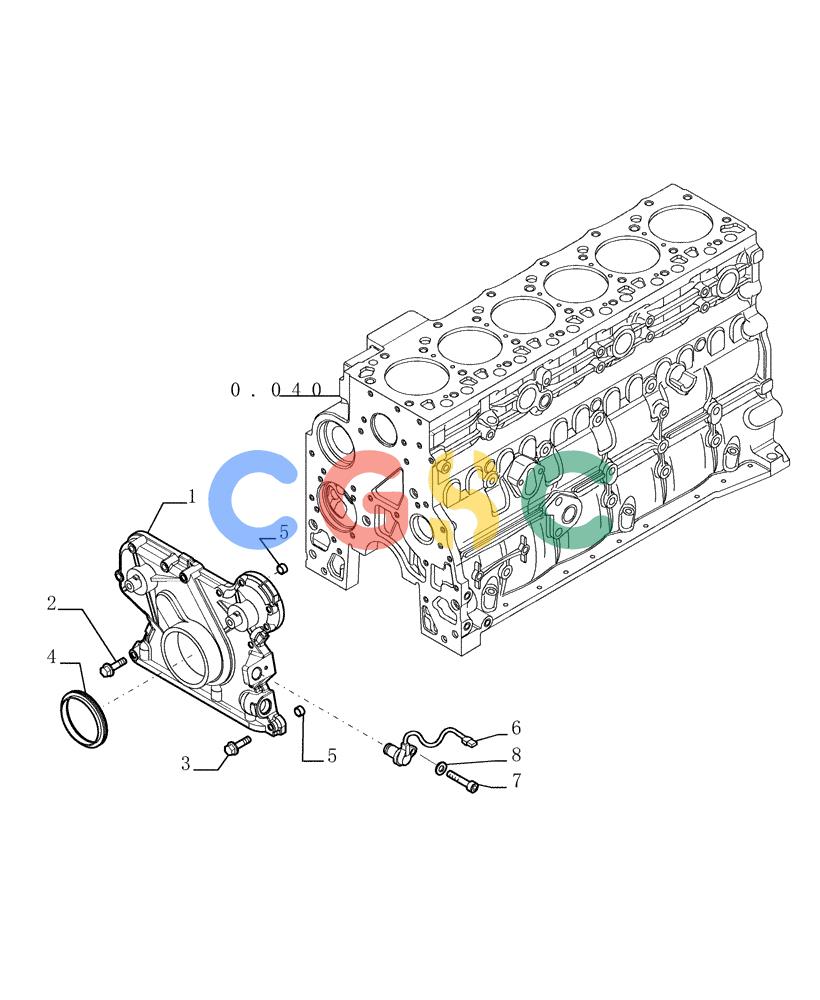

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4897026 | [1] | COVER | TOR- FRONT |
| 2. | 4899078 | [5] | SCREW,Hex Flg, M8 x 1.25 x 45 | TORM08x1.25x45mm |
| 3. | 4899063 | [8] | SCREW,Hex Flg, M8 x 1.25 x 30 | TORM08x1.25x30mm |
| 4. | 4890832 | [1] | OIL SEAL,M70 x 100 x 12.5/16 | TOR Superseded by part number: |
| 5. | 4891209 | [2] | DOWEL,M13 x 8 L | TOR |
| 6. | 4890189 | [1] | SENSOR | TOR(Used for Crankshaft RPM) |
| 7. | 4899110 | [1] | SCREW,Hex Flg, M6 x 1 x 20 | TORM06x1.0x20mm |
| 8. | 4895421 | [1] | WASHER | TOR |
