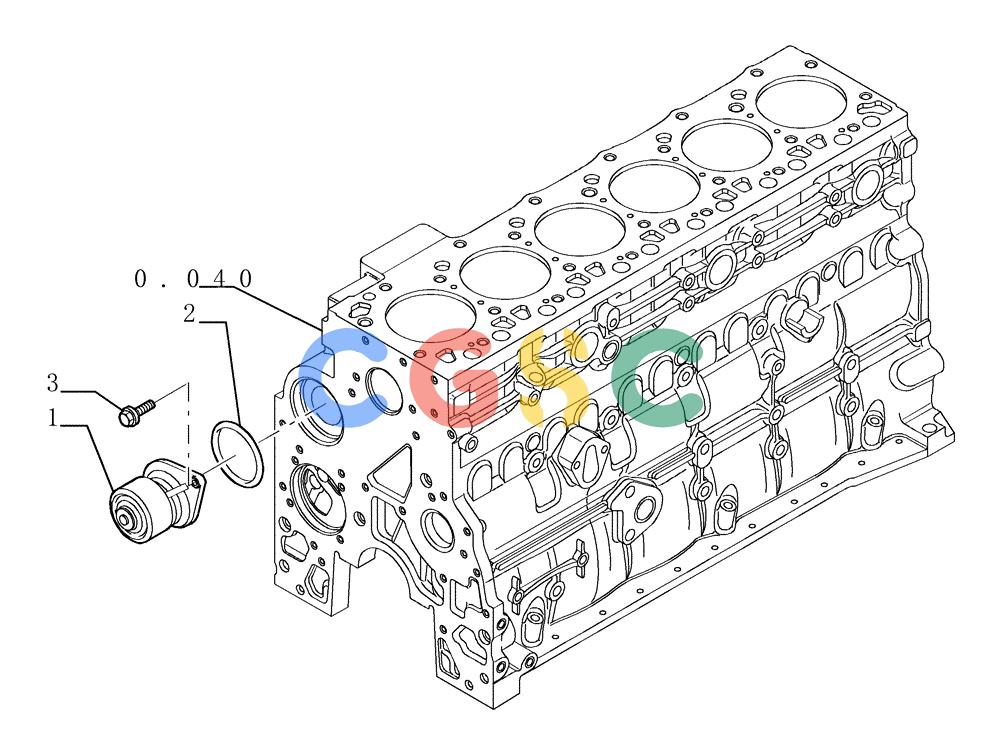

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-028[00]) - WATER PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
937 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2853443 | [1] | WATER PUMP | SM Superseded by part number: 504078557 |
| . . | 2853443R | [1] | REMAN-WATER PUMP | RACSK210-8 TIER 3 ROPS (NA) ASN YQ12U4800 |
| . . | 2853443C | [1] | CORE-WATER PUMP | RACReturn number |
| 2. | 2852047 | [1] | SEALING RING,Square, 5.16mm Thk x 88.27mm ID | TORSEALRING |
| 3. | 4899079 | [2] | SCREW,Hex Flg, M8 x 1.25 x 25 | TORM08x1.25x25mm |
