纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (08-029[00]) - PIPING - ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
345 次

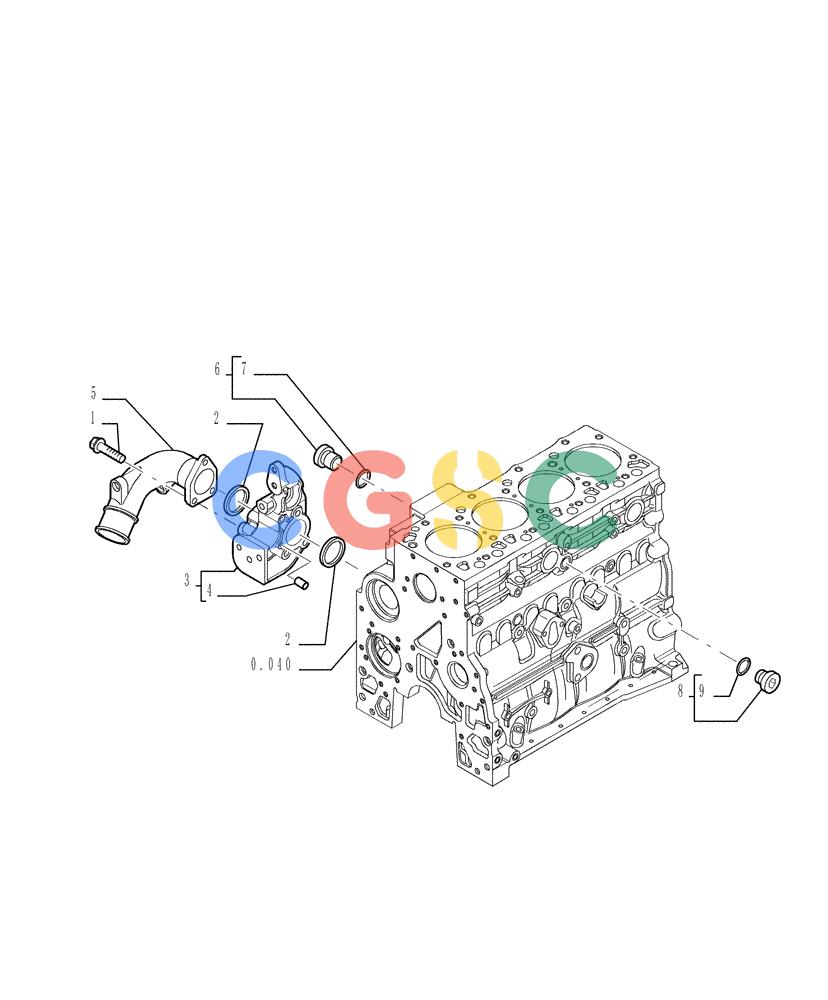

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852923 | [3] | SCREW | TORM10x1.50x90mm Superseded by part number: 16593025 |
| 2. | 2854072 | [2] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TOR Superseded by part number: 504062710 |
| 3. | 2852392 | [1] | SUPPORT | TOR- ASSY Superseded by part number: 500387647 |
| 4. | 4895576 | [2] | DOWEL | TOR |
| 5. | 2852922 | [1] | ELBOW | TOR Superseded by part number: 504042847 |
| 6. | 4895392 | [2] | HEX SOCKET PLUG,M18 x 1.5 | TORM18x1.50mm (Incls. O-Ring 4895393) |
| 7. | 4895393 | [1] | O-RING,2.2mm Thk x 15.3mm ID | TORID 15.3 x OD 19.7 x Th 2.2mm |
| 8. | 4895623 | [1] | HEX SOCKET PLUG,M16 x 1.5 | TORM16x1.5mm (Includes O-Ring 4895625) |
| 9. | 4895625 | [1] | O-RING,13.3mm ID x 2.2mm Width | TORID 13.3 x OD 17.7mm Superseded by part number: 17281681 |
