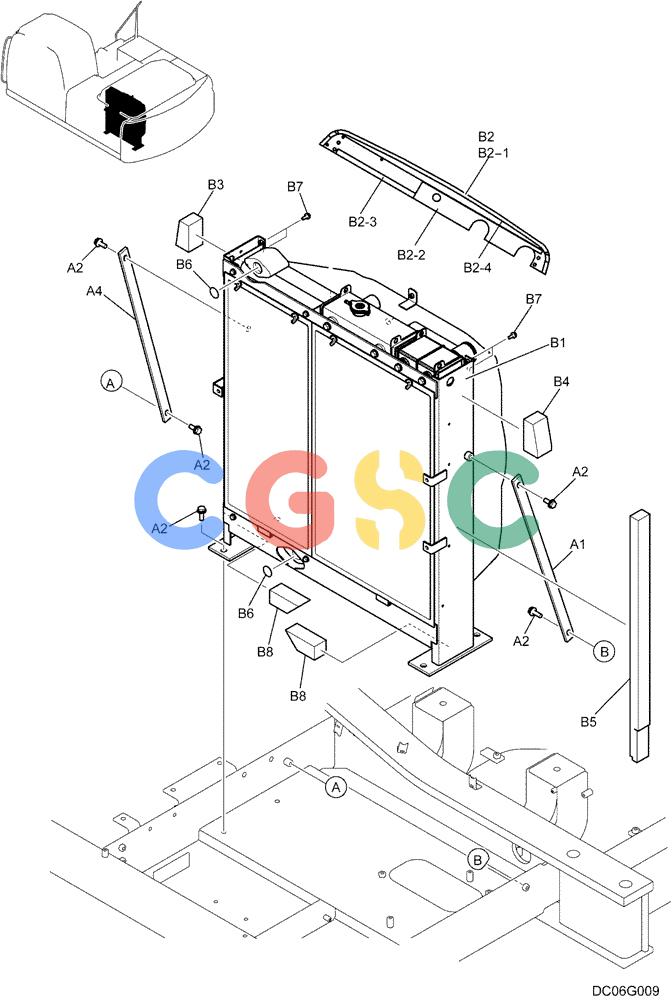

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-007[00]) - RADIATOR INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
278 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A2. | ZM73C12035 | [8] | BOLT,M12x35mm - Course Thread | KOBM12x1.75x35mm (Incls. Washer) |
| B1. | YN05P00062F2 | [1] | RADIATOR | KOBRADIATOR ASSY Superseded by part number: YN05P00062F6 |
| B2-2. | YN05P01434P1 | [1] | FOAM INSULATION | KOBINSULATION, Part of B2 |
| B2-3. | YN05P01470P1 | [1] | FOAM INSULATION | KOBINSULATION, Part of B2 |
| B4. | NSS | [1] | NOT SERVICED SEPARATELY | CONNSS - Assembly - Order Individual |
| B5. | YN05P01433P1 | [1] | INSULATOR | SMINSULATION |
| B6. | YN05P01355P1 | [2] | O-RING,44.7mm ID x 51.7mm OD x 3.5mm | KOBID 44.7 ± 0.25 x OD 51.7mm |
| B7. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| B8. | YN05P01465P1 | [2] | FOAM INSULATION | KOBINSULATION |
