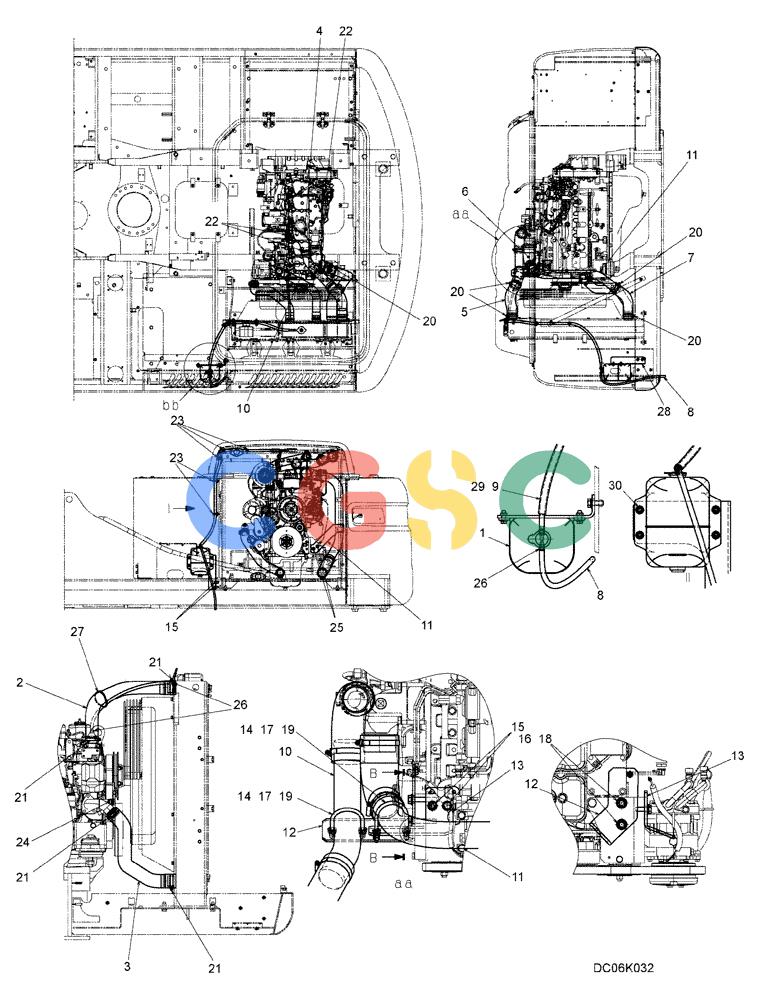

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-008[00]) - RADIATOR GROUP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
329 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN05P01041F1 | [1] | TANK | KOB |
| 2. | YN05P01418P1 | [1] | RADIATOR HOSE | KOB |
| 3. | YN05P01419P1 | [1] | RADIATOR HOSE | KOB |
| 4. | YN05P01517P1 | [1] | HOSE | KOB |
| 5. | YN05P01420P1 | [1] | HOSE | KOB |
| 6. | YN05P01481P1 | [1] | HOSE | KOB |
| 7. | YN05P01422P1 | [1] | HOSE | KOB |
| 8. | HX11Y05060DX | [1] | TUBE,8mm ID x 600mm L | KOB |
| 10. | YN05P01430P1 | [1] | TUBE,63.5 mm OD x 391, 64 mm L | KOB |
| 11. | YN05P01482P1 | [1] | TUBE,545, 266 mm L | KOB |
| 12. | YN05P01485P1 | [1] | PLATE | KOB |
| 13. | YN05P01484P1 | [1] | PLATE | KOB |
| 14. | 2420T2948D6 | [2] | U-BOLT | KOBM08x1.25x ID 64 x 100mm Long |
| 15. | ZM73C10030 | [4] | BOLT,M10x30mm - Course Thread | KOBM10x1.50x30mm (Incls. Washer) |
| 16. | ZS18C10060 | [2] | SCREW,Hex, M10 x 60mm | KOBM10x1.50x60mm |
| 17. | ZN18C08007 | [8] | NUT | KOBM08x1.25mm |
| 18. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 19. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 20. | ZC16X07000 | [7] | CLIP | KOBClamp, Hose -- Min 60 x Max 81mm |
| 21. | ZC16X05800 | [4] | CLIP | KOBClamp, Hose -- Min 50 x Max 66mm |
| 22. | ZC16X08700 | [1] | CLIP | KOBClamp, Hose -- Min 77 x Max 96mm |
| 23. | YN03E01001D5 | [5] | CLIP | KOB195mm Long (7-43/64 in) -- Black |
| 24. | YM05P01045P1 | [1] | PLUG | KOBM18x1.50x21mm Long (Incls. O-Ring 637-63153) |
| 25. | ZM73C10020 | [2] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| 26. | PH05P01088D6 | [3] | CLIP | KOBClamp, Hose -- Min 10.3 x Max 12.5mm |
| 27. | PY01P01043D5 | [1] | CABLE TIE,301mm L | KOBWire Ties -- 292mm Long |
| . . | HN12C08000G1 | [4] | NUT | KOBPart of YN05P01547P1 |
| 29. | HX81X13140DX | [1] | TUBE | KOBID 13.2 x OD 17.5 x 1400mm Long (55-7/64 in) |
| 30. | ZM73C08025 | [4] | BOLT,M8x25mm - Course Thread | KOBM08x1.25x25mm (Incls. Washer) |
