纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-015[00]) - POWER TAKE OFF ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
493 次

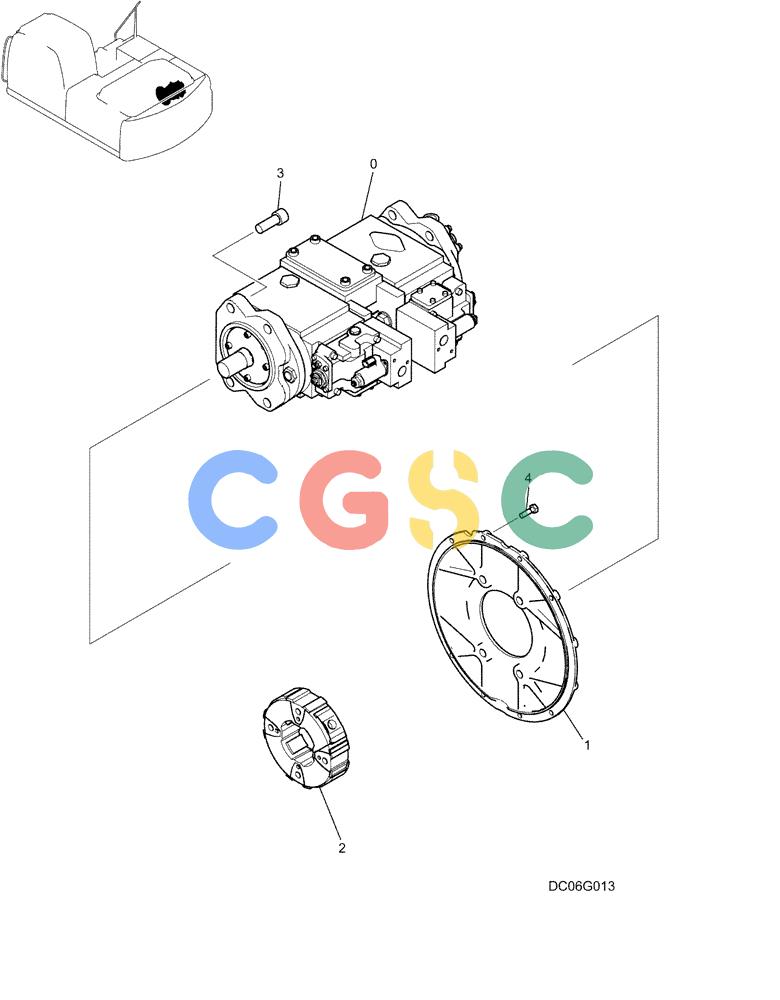

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YN10V00036F2 | [1] | HYDRAULIC PUMP | KOBASSY Superseded by part number: YN10V00036F4 |
| 0. | YN10V00036F3 | [1] | HYDRAULIC PUMP | KOBAssy Superseded by part number: YN10V00036F4 |
| 1. | YN30P01029P1 | [1] | BRACKET | SM |
| 2. | YN30P01023F1 | [1] | UNIVERSAL JOINT | SMCOUPLING ASSY |
| 3. | ZS28C20055 | [4] | CAP,Hex Socket Head, M20 x 55mm | KOBM20x2.5x55mm |
| 4. | ZS18C10035 | [5] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 5. | ZM73C10045 | [3] | BOLT,M10x45mm - Course Thread | KOBM10x1.50x45mm (Incls. Washer), USED TO ATTACH MUFFLER BRACKET |
