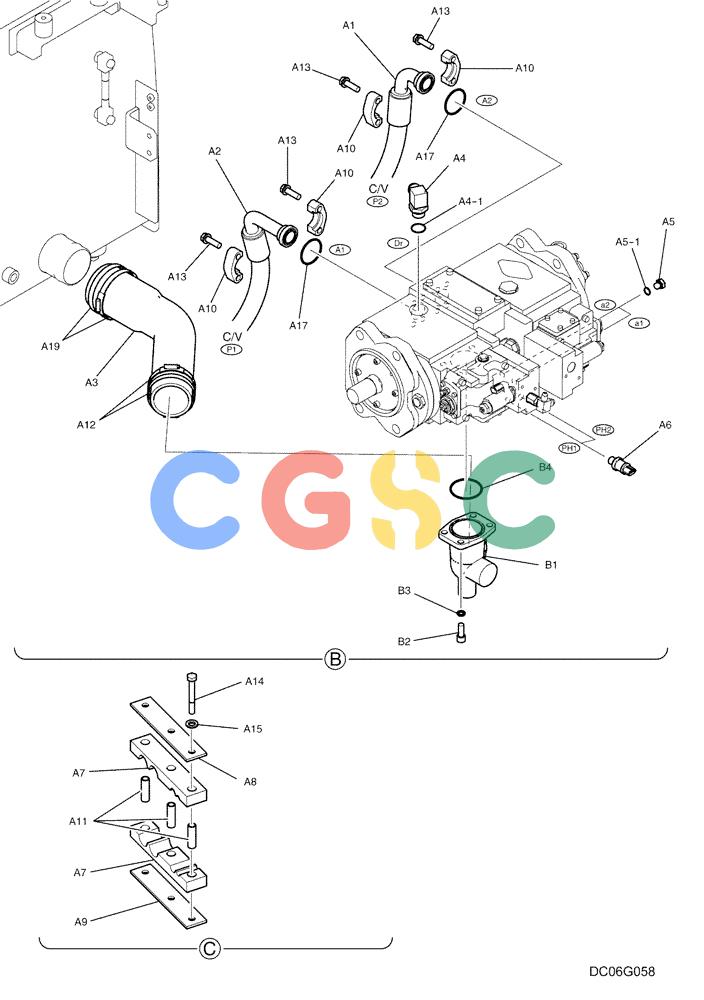

| A1. | YN30H01199D1 | [1] | HOSE | KOB1230mm Long (48-27/64 in) |
| A2. | YN30H01200D1 | [1] | HOSE | KOB1200mm Long (47-1/4in) |
| A3. | YN30H01221P1 | [1] | HOSE,76.30 mm ID, 89.10 mm ID x 375.80 mm | KOB |
| A4. | ZH32X12000 | [1] | 90 ELBOW,Male, 30° Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012) |
| A4-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| A5. | ZE72X04000 | [2] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| A5-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| A6. | YN52S00048P1 | [2] | SENSOR | SMPressure (High Pressure) (Incls. O-Ring ZD12P01400) Superseded by part number: LS52S00015P1 |
| . . | ZD12P01400 | [1] | O-RING | KOB(Part of YN52S00048P1), ID 13.80 ± 0.19 x OD 18mm, Not Shown |
| A8. | YN30H01217P1 | [1] | PLATE | KOB |
| A9. | YN30H01215P1 | [1] | PLATE | KOB |
| A10. | ZE13X16000 | [8] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| A11. | ZY26X06056 | [3] | SPACER | KOBID 12.7 x OD 17.3 x 56mm Long |
| A12. | ZC16X09100 | [2] | CLIP | KOBClamp, Hose -- Min 80 x Max 101mm |
| A13. | HM83C12040G1 | [16] | BOLT | KOBM12x40mm |
| A14. | ZS18C12090 | [3] | SCREW,Hex, M12 x 90mm | KOBM12x1.75x90mm |
| A15. | ZW16H12000 | [3] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| A17. | ZD12P03400 | [4] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| A19. | ZC16X10000 | [2] | CLIP | KOBClamp, Hose -- Min 87 x Max 113mm |
| B1. | YN30H01220P1 | [1] | ELBOW | KOBManifold |
| B2. | ZS28C12030 | [4] | SCREW,Hex Socket Head, M12 x 30mm | KOBScrew -- M12x1.75x30mm |
| B3. | ZW26K12000 | [4] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| B4. | 45Z91D104 | [1] | O-RING,3.53mm Thk x 69.44mm ID, 80 Duro | KOBID 69.44 ± 0.38 OD 76.50mm Superseded by part number: 923582 |
