纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-029[02]) - CONTROL LINES, VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
471 次

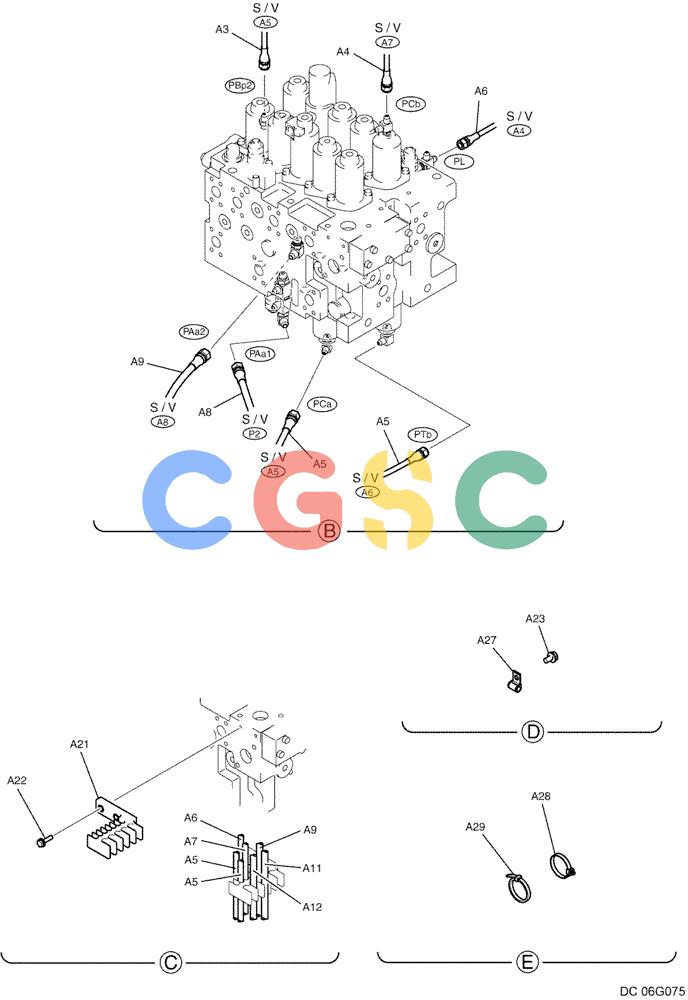

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A3. | 2420R349D050 | [2] | HOSE,500.00 mm | KOB500mm Long (19-11/16 in) |
| A4. | 2420R349D055 | [1] | HOSE,6.35mm ID x 550mm L | KOB550mm Long (21-21/32 in) |
| A5. | 2420R349D115 | [2] | HOSE,1150.00 mm | KOB Superseded by part number: HX21E04115DX |
| A6. | 2420R349D185 | [1] | HOSE,6.35mm ID x 1850mm L | KOB |
| A7. | 2420R349D240 | [1] | HOSE,2400.00 mm | KOB Superseded by part number: HX21E04240DX |
| A8. | 2420R537D082 | [1] | FLEXIBLE HOSE,9.60mm ID x 820mm L | SM820mm Long (32-9/32 in) Superseded by part number: 2420R537D085 |
| A9. | 2420R537D140 | [1] | HOSE ASSY.,9.60mm ID x 1400mm L | KOB1400mm Long (55-7/64 in) |
| A11. | 2420R537D270 | [1] | FLEXIBLE HOSE,9.60mm ID x 2700mm L | KOB2700mm Long (106-19/64 in) |
| A12. | 2420R537D300 | [1] | HOSE,9.60mm ID x 3000mm L | KOB Superseded by part number: HX21E06300DX |
| A21. | LC64H01104P1 | [1] | CLAMP | KOB |
| A22. | ZM73C08030 | [2] | BOLT,M8x30mm - Course Thread | KOBM08x1.25x30mm (Incls. Washer) |
| A23. | ZM73C10020 | [3] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| A27. | EW02E01015D4 | [3] | CLIP | KOBClamp -- Ø10x20mm Long |
| A28. | YN13E01375P1 | [4] | CLIP,M8 x 8.20mm Shank | KOBAnchor Wire Ties |
| A29. | PY01P01043D8 | [4] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long |
