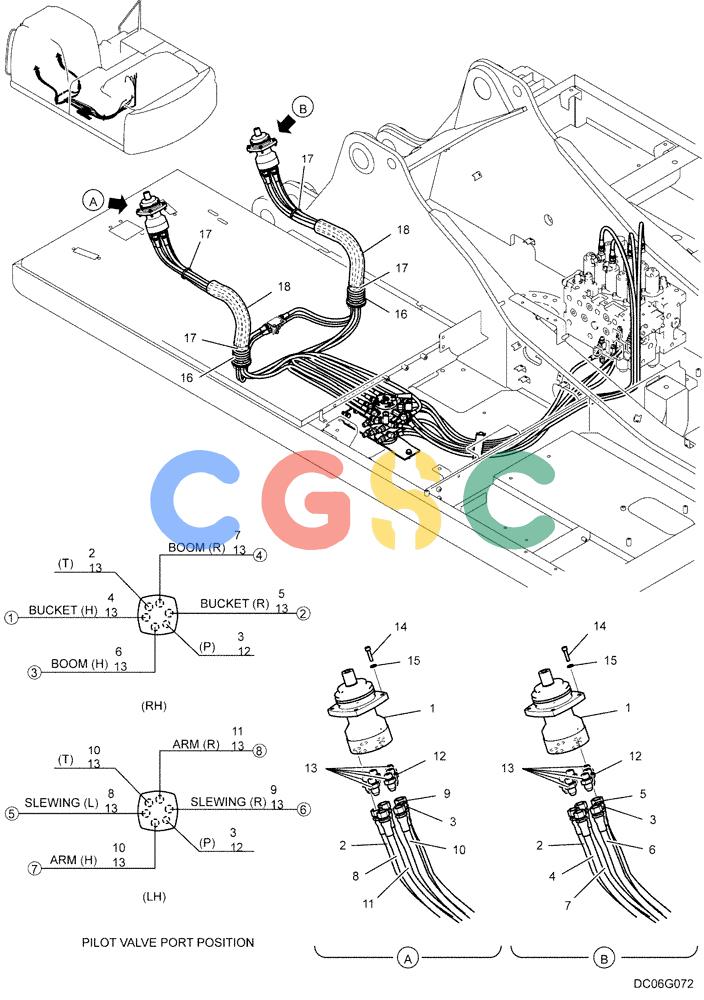

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-034[00]) - CONTROL LINES, REMOTE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
811 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN30V00111F1 | [2] | HYDRAULIC VALVE | SMSee Fig. 07-005[00] |
| 2. | 2420R537D135 | [2] | FLEXIBLE HOSE,9.60mm ID x 1350mm L | KOB Superseded by part number: HX21E06135DX |
| 3. | LS68H01016D1 | [2] | HOSE,6.3mm ID x 1350mm L | KOB |
| 4. | HX23L06175CR | [1] | HOSE,9.53mm ID x 1750mm L | SM |
| 5. | HX23L06175CB | [1] | HOSE,9.53mm ID x 1750mm L | SM |
| 6. | HX23L06175CG | [1] | HOSE,9.53mm ID x 1750mm L | SM |
| 7. | HX23L06180CH | [1] | HYDRAULIC HOSE | SM1800mm Long (70-55/64 in) |
| 8. | HX23L06155CH | [1] | HOSE,9.53mm ID x 1550mm L | SM |
| 9. | HX23L06150CR | [1] | HOSE,9.53mm ID x 1500mm L | SM |
| 10. | HX23L06145CB | [1] | HOSE,9.53mm ID x 1450mm L | SM |
| 11. | HX23L06155CG | [1] | HOSE,9.53mm ID x 1550mm L | SM |
| 12. | HH25X04004G2 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| 13. | ZH22X06000 | [10] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 14. | ZS28C06025 | [8] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 15. | ZW16P06000 | [8] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 16. | PH03M01250P1 | [2] | BOOT | KOB |
| 17. | PY01P01043D8 | [4] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long |
| 18. | YN68H01106P1 | [2] | COVER | KOB |
