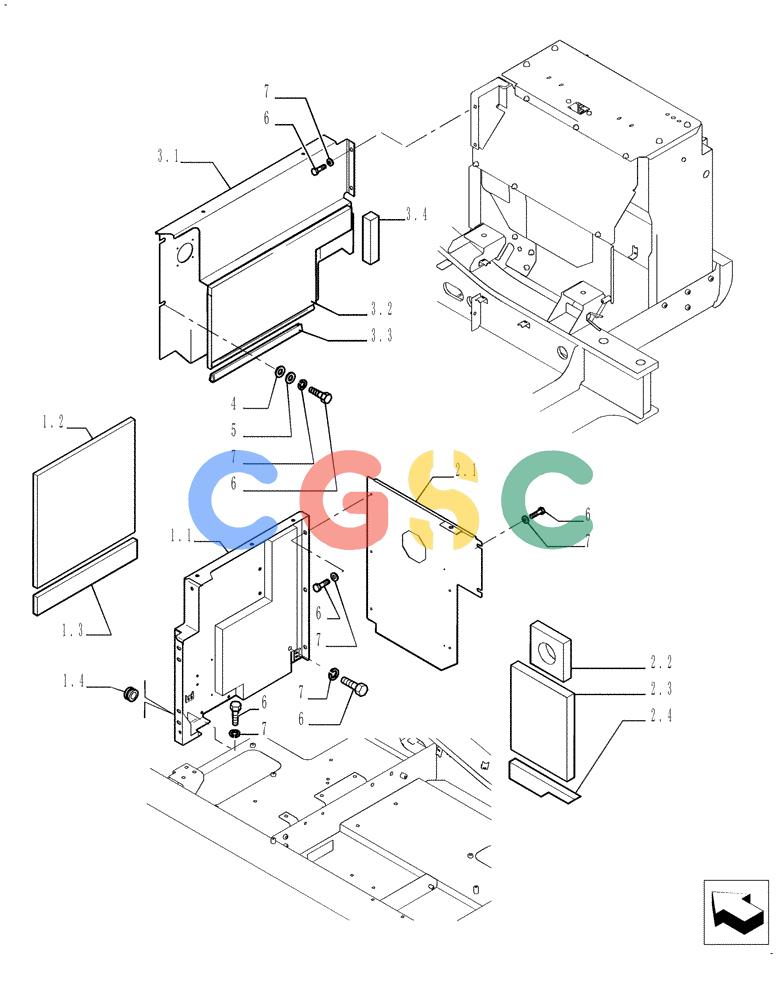

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-070[00]) - GUARD INSTAL (PARTITION) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
631 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1.2. | YN21C03244P2 | [1] | FOAM INSULATION | KOB590x590mm |
| 1.3. | LB21C01277P1 | [1] | INSULATION | KOB |
| 1.4. | YN21C03767P1 | [1] | RUBBER BUSHING | KOB |
| . . | YN21C04434F1 | [1] | GUARD | SMIncludes Refs 2.1-2.4 |
| 2.2. | YN21C03195P1 | [1] | FOAM INSULATION | KOB |
| 3.2. | YN21C02682P1 | [1] | FOAM INSULATION | KOB |
| 3.3. | PM02C01035D8 | [1] | STRIP | KOB |
| 3.4. | YN21C02777P2 | [1] | INSULATION | KOB |
| 4. | YN21C02138P1 | [2] | WASHER | KOBID 12.40 x OD 38 x Th 6.0mm |
| 5. | YN21C02147P1 | [2] | WASHER | KOBID 17.60 x OD 32.50 x Th 1.5mm |
| 6. | ZM73C12025 | [14] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) |
| 7. | YN21C03423P1 | [2] | CLAMP | KOBDouble -- Black Vinyl Covered |
| 8. | ZM73C10035 | [2] | BOLT,M10x35mm - Course Thread | KOBM10x1.50x35mm (Incls. Washer) |
