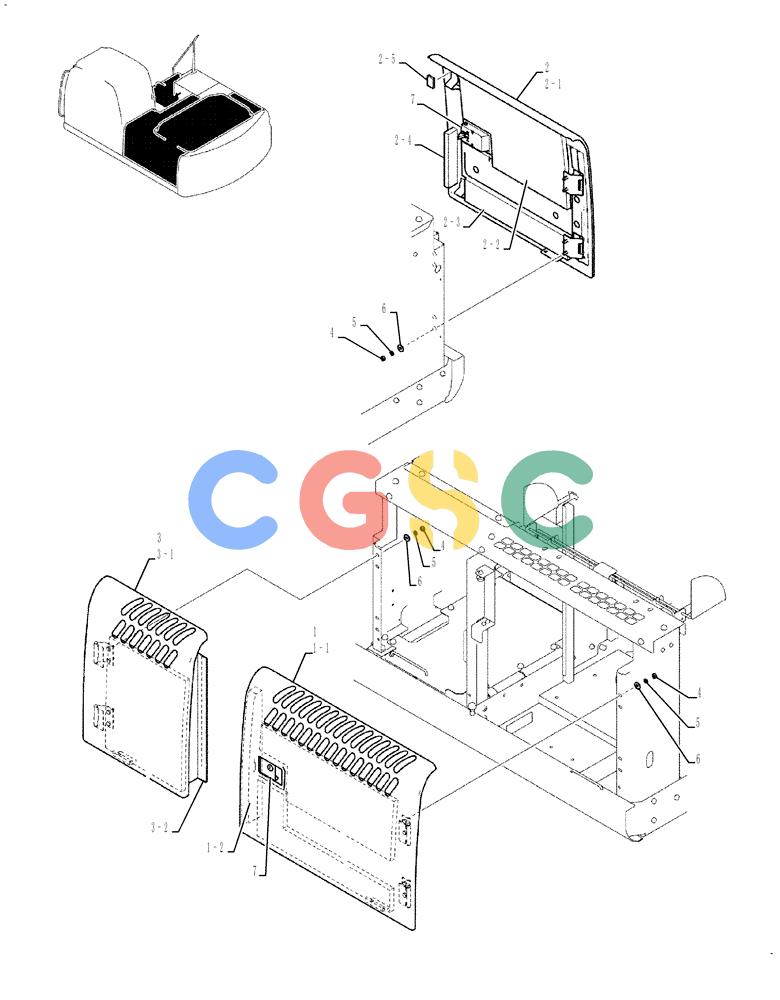

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-071[00]) - GUARD INSTAL (SIDE PANEL) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
970 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN21C03519F1 | [1] | DOOR PANEL | KOBAssy, Incl 1-1 - 1-2 |
| 1-1. | YN21C03114P2 | [1] | PANEL | KOB |
| 1-2. | YN21C02460P1 | [1] | GASKET | SM |
| 2. | YN21C03015F1 | [1] | PANEL | KOBAssy, Incl 2-1 - 2-5 |
| 2-1. | YN21C03016P3 | [1] | PANEL | KOB |
| 2-2. | YN21C03028P1 | [1] | FOAM INSULATION | KOB |
| 2-3. | YN21C03346P2 | [1] | FOAM INSULATION | KOB |
| 2-4. | YN21C02048P1 | [1] | RUBBER | KOB |
| 2-5. | YN21C05040P1 | [1] | RUBBER PAD | KOB |
| 3. | YN21C04647P1 | [1] | DOOR PANEL | KOBAssy, Incl 3-1 - 3-2 |
| 3-1. | YN21C04648P1 | [1] | DOOR PANEL | KOB |
| 3-2. | YN21C02462P1 | [1] | RUBBER STRIP | KOB |
| 4. | ZN18C10008 | [12] | NUT | KOBM10x1.50mm |
| 5. | ZW26X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 6. | 2418T12346 | [12] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
| 7. | YN21C03803P1 | [2] | LOCK | SM Superseded by part number: YN21C04959P1 |
