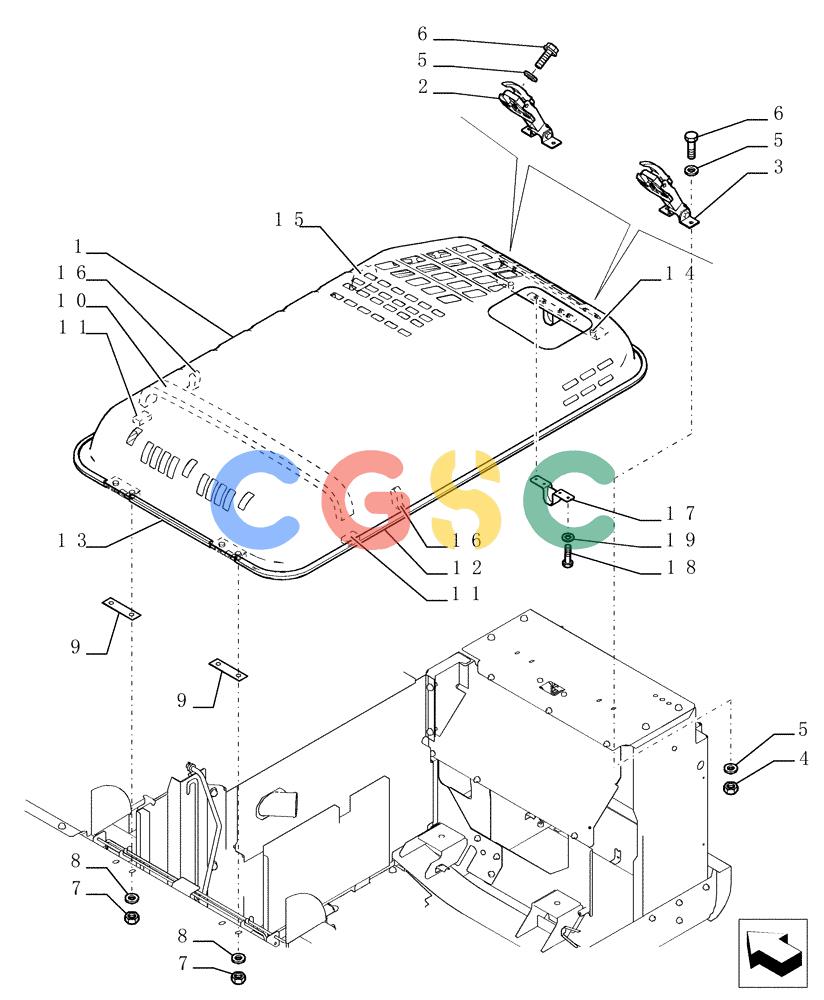

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-072[00]) - GUARD INSTAL (BONNET) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
540 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN22C01309P2 | [1] | HOOD | KOB Superseded by part number: YN22C01309P3 |
| 2. | LC21C01811P2 | [1] | LATCH | SM |
| 3. | LC21C01812P2 | [1] | HANDLE | SM Superseded by part number: LC21C01811P2 |
| 4. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 5. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 6. | ZM73C08020 | [8] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm |
| 7. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| 8. | 2418T10357 | [4] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 9. | YN21C03749P1 | [2] | SHIM | KOB |
| 10. | YN22C01177P1 | [1] | INSULATOR | SM Superseded by part number: LQ22C01189P1 |
| 11. | YN22C01182P1 | [2] | INSULATOR | SM |
| 12. | YN22C01283D4 | [1] | SEALING STRIP,5290mm L | SM |
| 13. | YR21C01251D5 | [1] | SEALING STRIP | SM |
| 14. | 2416T13435 | [2] | RUBBER | KOB |
| 15. | 2406Z304 | [1] | HANDLE | KOB |
| 16. | YN22C01297P1 | [2] | FOAM INSULATION | KOB |
| 17. | YN22C01287P1 | [1] | PLATE | KOB |
| 19. | NSS | [1] | NOT SERVICED SEPARATELY | CONWasher, Incl in 18 |
