纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-085[02]) - HARNESS ASSY, FLASHER AND ALARM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
304 次

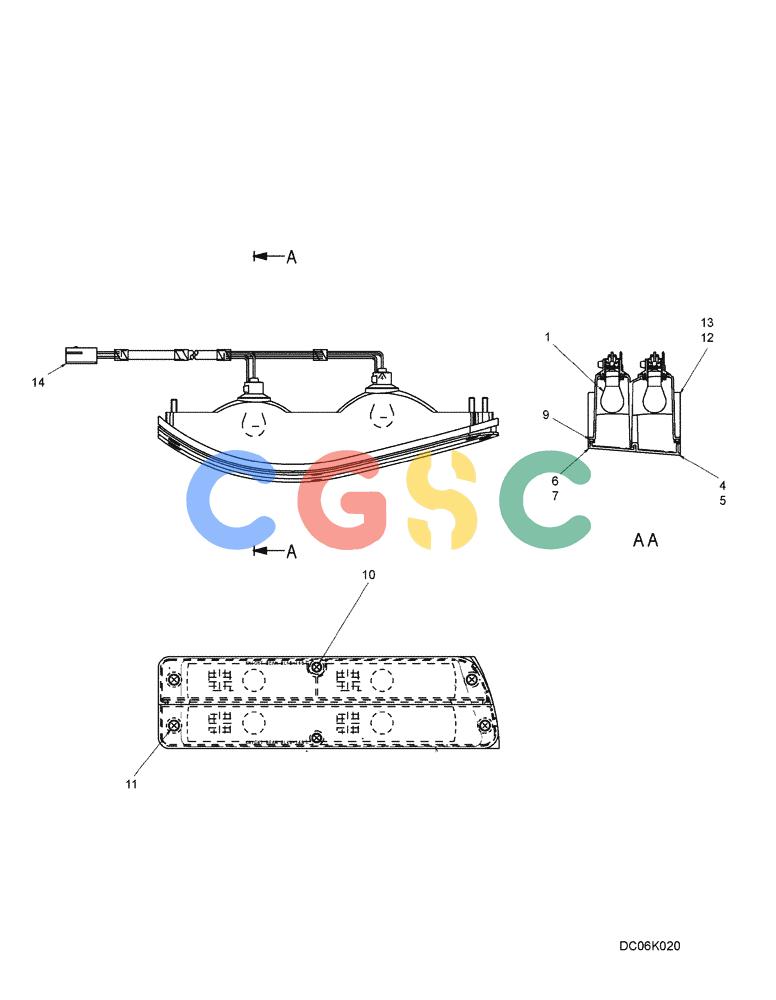

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| F1. | YM80S00001F1 | [1] | LAMP | KOBFlashing |
| F2. | YM80S00001F2 | [1] | LAMP | KOBFlashing |
| 1. | YN80S00015S001 | [4] | BULB | KOB Superseded by part number: 2456U85S4 |
| 4. | YN80S00015S004 | [1] | LENS | KOBF1 -- Left Top |
| 5. | YN80S00015S005 | [1] | LENS | KOBF2 -- Right Top |
| 6. | YN80S00015S006 | [1] | LENS | KOBF1 -- Left Bottom |
| 7. | YN80S00015S007 | [1] | LENS | KOBF2 -- Right Bottom |
| 9. | YN80S00015S009 | [1] | GASKET | KOB |
| 10. | YN80S00015S010 | [2] | SCREW | KOBM05x25mm |
| 11. | YN80S00015S011 | [4] | SCREW | KOBM06x40mm |
| 12. | NSS | [1] | NOT SERVICED SEPARATELY | CONBody, Left Hand, F1 |
| 14. | YM80S00001S014 | [1] | CABLE | KOB |
