纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (13.020[001]) - BEARING MOTOR (S/N 11701-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
863 次

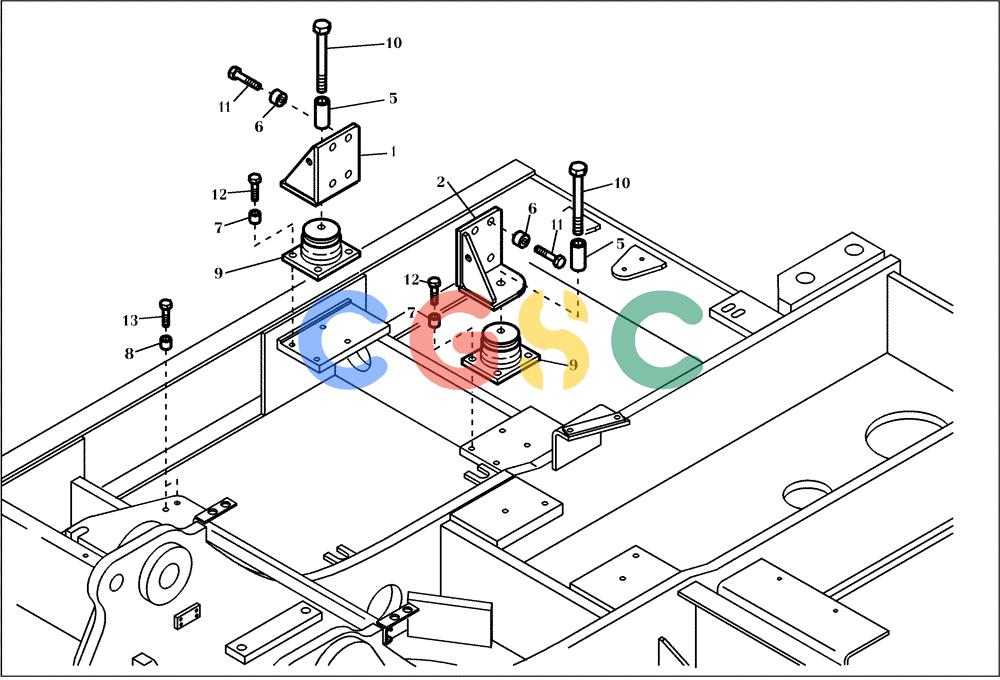

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73177180 | [1] | BRACKET | BER Superseded by part number: 1292786 |
| 2. | 73177181 | [1] | BRACKET | BER Superseded by part number: 1292787 |
| 5. | 73171667 | [2] | SPACER | BER Superseded by part number: 1127278 |
| 6. | 73188216 | [8] | SOCKET | BERSLEEVE Superseded by part number: 3016222 |
| 7. | 73188209 | [8] | SLEEVE | BER Superseded by part number: 3016221 |
| 8. | 73188217 | [4] | SLEEVE | BER Superseded by part number: 3016223 |
| 9. | 73170569 | [2] | DAMPER | BERBEARING Superseded by part number: 2213072 |
| 10. | 73176028 | [2] | SCREW | BERHEXAGON BOLT Superseded by part number: 15835231 |
| 11. | 73176143 | [8] | BOLT | BERHEXAGON BOLT Superseded by part number: 251784 |
| 12. | 73170567 | [8] | BOLT | BERHEXAGON BOLT Superseded by part number: 7120488 |
| 13. | 73177183 | [4] | BOLT,Hex, M10 x 50, 10.9 | BERHEXAGON BOLT Superseded by part number: 43249 |
