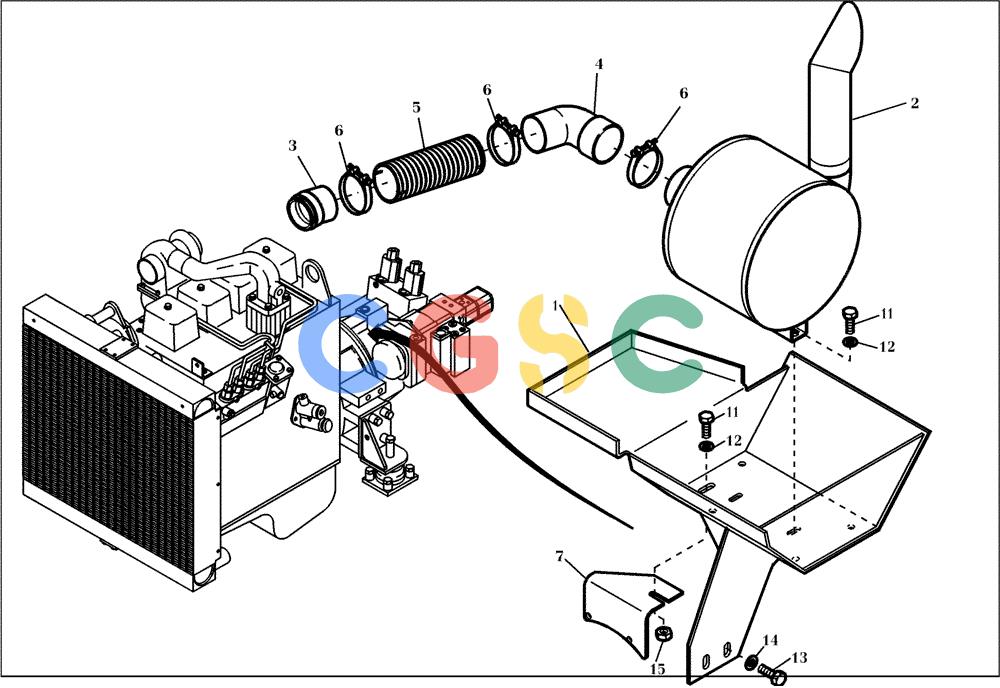

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (13.220[001]) - EXHAUST SYSTEM INSTALL.MATERIAL (S/N 11701-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
505 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73179466 | [1] | BRACKET | BER Superseded by part number: 1297070 |
| 2. | 73177397 | [1] | MUFFLER | BER Superseded by part number: 1292777 |
| 3. | 73177398 | [1] | EXHAUST MANIFOLD | BER Superseded by part number: 1292635 |
| 4. | 73177399 | [1] | EXHAUST SYSTEM PIPE | BEREXHAUST PIPE Superseded by part number: 1292634 |
| 5. | 73177400 | [1] | HOSE | BERMETAL HOSE Superseded by part number: 1292636 |
| 6. | 73177401 | [3] | CLIP | BER Superseded by part number: 4526255 |
| 7. | 73186712 | [1] | BRACKET | BER Superseded by part number: 3008600 |
| 11. | 73170175 | [5] | BOLT,Hex, M10 x 16, 8.8, Full Thd | BERHEXAGON BOLT Superseded by part number: 84089684 |
| 12. | 72181192 | [8] | WASHER | BERDISK/WASHER Superseded by part number: 1527191 |
| 13. | 73170316 | [2] | BOLT,Hex, M12 x 25, 8.8 | BERHEXAGON BOLT Superseded by part number: 300388 |
| 14. | 73170715 | [2] | WASHER | NHDISK/WASHER Superseded by part number: 84089872 |
| 15. | 73170215 | [1] | NUT | BERHEXAGON NUT Superseded by part number: 11701721 |
