神钢零件查询(K903A) - EXCAVATOR BTW K2748 - K3928 (1/76-12/03) (09-011) - ARM ASSY EXTENSION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
475 次

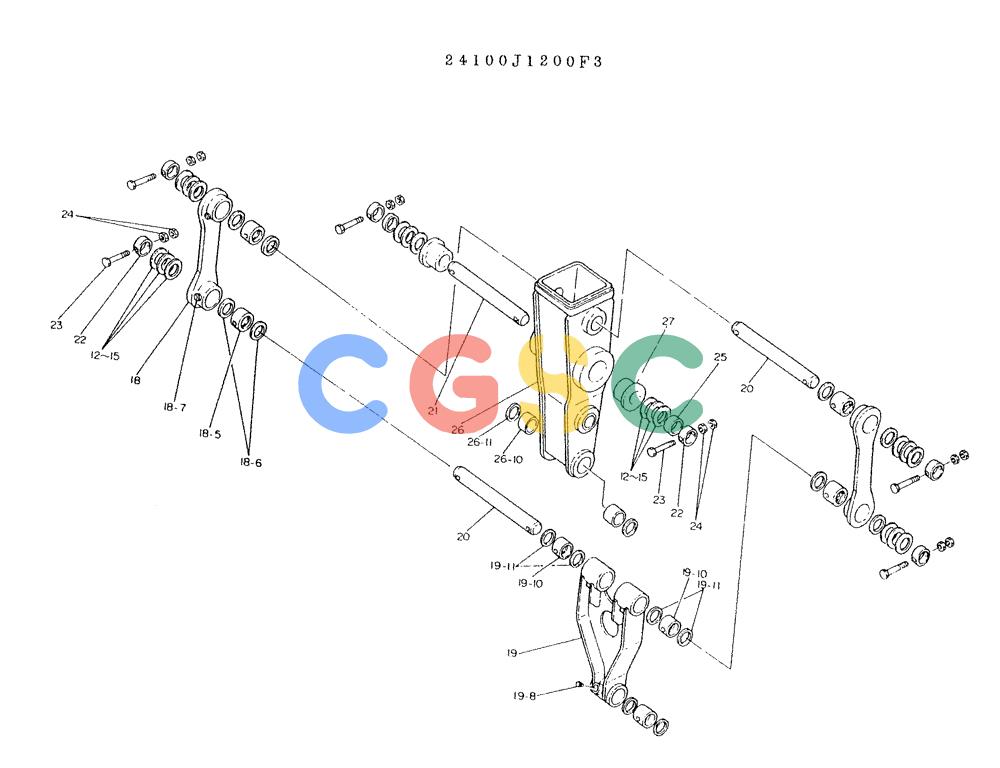

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1200F3 | [1] | ARM ASSY, EXTENSION, CONSISTS OF REF. 12 TO 27 | |
| 12. | 4018T183D1 | [6] | SHIM,52mm ID x 80mm OD x 2.3mm Thk | KOBSHIM, 2.3 Superseded by part number: B16T0442D24 |
| 13. | 4018T183D2 | [6] | SHIM,52mm ID x 80mm OD x 1.2mm Thk | KOBSHIM, 1.2 Superseded by part number: B16T0442D25 |
| 14. | 4018T183D3 | [6] | SHIM | KOBSPACER Superseded by part number: B16T0442D41 |
| 15. | 4018T183D4 | [6] | SHIM | KOBSPACER |
| 18. | 2406N393F2 | [2] | LINK, IDLER, INCL. REF. 18-5 TO 18-7 | |
| 18-5. | 2405T632 | [2] | BUSHING | |
| 18-6. | 2445R13801 | [4] | SEAL, DUST | |
| 18-7. | 44Z1D10 | [2] | FITTING | KOB |
| 19. | 2406N394F2 | [1] | LINK, INCL. REF. 19-8 TO 19-11 | |
| 19-8. | 44Z1D10 | [3] | FITTING | KOB |
| 19-10. | 2405T631 | [3] | BUSHING | |
| 19-11. | 2445R138D1 | [6] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
| 20. | 2419P839 | [2] | PIN | |
| 21. | 2419P840 | [1] | PIN | |
| 22. | 2418T3986 | [6] | COLLAR | KOBCOLLAR |
| 23. | ZS12C12085 | [6] | SCREW,Hex, M12 x 85mm | KOB Superseded by part number: ZS13C12085 |
| 24. | ZN12C12010 | [12] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 25. | 2418T3723D2 | [2] | SPACER | |
| 26. | 2411J1034F1 | [1] | ARM, EXTENSION, INCL. REF. 26-10 & 26-11 | |
| 26-10. | 2405T594C2 | [4] | BUSHING | KOB |
| 26-11. | 2445R138D1 | [4] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
| 27. | 2405T739 | [2] | BUSHING | KOB |
