神钢零件查询(K903A) - EXCAVATOR BTW K2748 - K3928 (1/76-12/03) (09-015) - LEVER ASSY, CONTROL, P/N 24100J2456F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
397 次

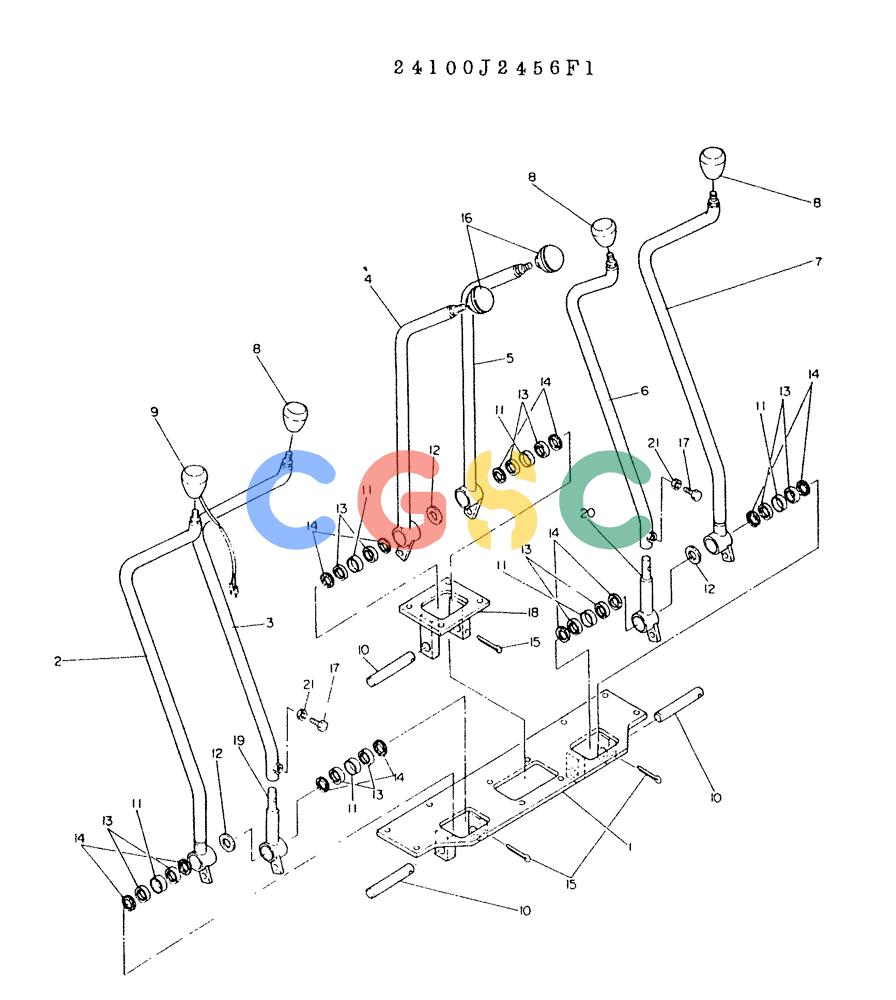

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J2456F1 | [1] | LEVER ASSY, CONTROL, CONSISTS OF REF. 1 TO 21 | |
| 1. | 2416N1618 | [1] | BRACKET | |
| 2. | 2406P1676 | [1] | LEVER, CONTROL | |
| 3. | 2406P1677D2 | [1] | LEVER, CONTROL | |
| 4. | 2406P1679 | [1] | LEVER, CONTROL | |
| 5. | 2406P1678 | [1] | LEVER, CONTROL | |
| 6. | 2406P1677D1 | [1] | LEVER, CONTROL | |
| 7. | 2406P1680 | [1] | LEVER, CONTROL | |
| 8. | 2406P1131D2 | [3] | BALL, LEVER | BALL, LEVER |
| 9. | 2406P1131D1 | [1] | BALL, LEVER | BALL, LEVER |
| 10. | 4019T12 | [3] | PIN | KOB |
| 11. | 4018T20 | [6] | SPACER | KOB |
| 12. | 3611V012 | [3] | WASHER | KOB |
| 13. | 4025Z8 | [12] | NEEDLE BEARING | KOB |
| 14. | 4045Z8 | [12] | OIL SEAL | KOB |
| 15. | ZP15D05065 | [3] | COTTER PIN | KOB |
| 16. | 6Z1 | [2] | LEVER | KOB |
| 17. | ZS16C10030 | [2] | CAPSCREW | KOBSCREW M10x1.50x30mm Superseded by part number: ZS18C10030 |
| 18. | 2416P4365 | [1] | BRACKET | |
| 19. | 2406P1675D2 | [1] | LINK | |
| 20. | 2406P1675D1 | [1] | LINK | |
| 21. | ZN16C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
