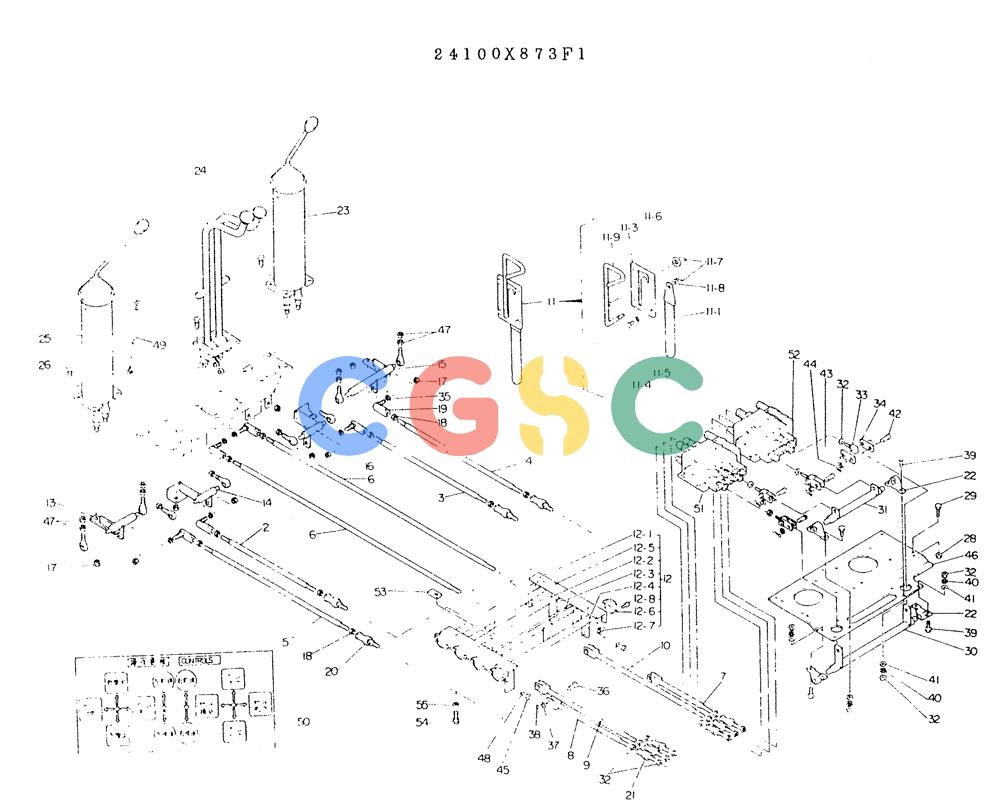

神钢零件查询(K903A) - EXCAVATOR BTW K2748 - K3928 (1/76-12/03) (09-016) - CONTROL ASSY, P/N 24100X873F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
572 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X873F1 | [1] | CONTROL ASSY, CONSISTS OF REF. 1 TO 52 | |
| 1. | 2416N1573 | [1] | BRACKET | |
| 2. | B20P0005D58 | [1] | ROD | |
| 3. | B20P0005D64 | [1] | ROD | |
| 4. | B20P0005D33 | [1] | ROD | |
| 5. | B20P0005D44 | [1] | ROD | |
| 6. | 2420P964D6 | [2] | ROD | |
| 7. | 2420P1122D1 | [1] | ROD | |
| 8. | 2420P1122D2 | [1] | ROD | |
| 9. | 2420P1122D3 | [1] | ROD | |
| 10. | 2420P1122D4 | [1] | ROD | |
| 11. | 24100N879F2 | [1] | SWING LOCK ASSY, CONSISTS OF REF. 11-1 TO 11-9 | |
| 11-1. | 2419T1734 | [1] | PIN | PIN |
| 11-3. | 2414T819 | [1] | COVER | KOB |
| 11-4. | ZS16C06014 | [4] | SCREW | KOBM06x1.0x16mm Superseded by part number: ZS18C06014 |
| 11-5. | ZW22X06000 | [4] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 11-6. | 2418T4228 | [1] | WASHER | |
| 11-7. | ZP15D03020 | [2] | SPLIT PIN | KOBCOTTER PIN |
| 11-8. | ZW11X06000 | [1] | WASHER | KOBID 06.6 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 11-9. | 2420T2642D4 | [1] | ROD | |
| 12. | 24100N1414F1 | [1] | LINK ASSY, CONSISTS OF REF. 12-1 TO 12-8 | |
| 12-1. | 2406P1636 | [1] | LINK | |
| 12-2. | 2406P1637 | [1] | LINK | |
| 12-3. | 2406P1638 | [1] | LINK | |
| 12-4. | 2406P1635 | [1] | LINK | |
| 12-5. | 2416N1619 | [1] | BRACKET | |
| 12-6. | 2425Z394D17 | [8] | BUSHING | KOB |
| 12-7. | ZN11C08007 | [16] | NUT | KOBM08x1.25mm Superseded by part number: ZN16C08007 |
| 12-8. | ZM11C08020 | [16] | BOLT | KOBM08x1.25x20mm (Incls. Lockwasher) Superseded by part number: ZM12C08020 |
| 13. | 2406P1699 | [1] | LINK | |
| 16. | 2406P1698 | [1] | LINK | |
| 15. | 2406P1700 | [1] | LINK | |
| 16. | 2406P1697 | [1] | LINK | |
| 17. | ZN31F12011 | [10] | NUT | KOB |
| 18. | ZN12F12007 | [10] | NUT | KOBM12x1.25mm Superseded by part number: ZN17F12007 |
| 19. | R06T0011 | [6] | ROD-END | ROD-END |
| 20. | 2406Z215 | [4] | ROD | KOBROD-END |
| 21. | 2420Z681 | [6] | ROD | KOB |
| 22. | 2425R145 | [4] | BLOCK, PILLOW | |
| 23. | 24100N1331F1 | [1] | LEVER ASSY, CONTROL | |
| 24. | B90N0007F12 | [1] | LEVER ASSY, CONTROL | |
| 25. | 24100N1331F2 | [1] | LEVER ASSY, CONTROL | |
| 26. | ZM11C10025 | [12] | BOLT | KOBM10x1.50x25mm (Incls. Lockwasher) Superseded by part number: ZM12C10025 |
| 28. | ZN16C10008 | [6] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 29. | ZM11C10030 | [6] | SCREW | KOBM10x1.50x30mm (Incls. Lockwasher) |
| 30. | 2406P1596D1 | [1] | LINK | |
| 31. | 2406P1596D2 | [1] | LINK | |
| 32. | ZN16C08007 | [24] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 33. | 2406T1188 | [4] | YORK | |
| 34. | 2406T1187D1 | [8] | LINK | |
| 35. | ZW13H12000 | [6] | WASHER | KOB |
| 36. | ZP45X10035 | [4] | PIN | |
| 37. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 38. | ZP15D03015 | [4] | COTTER PIN | KOB Superseded by part number: ZP15D03035, 77276179 |
| 39. | ZS12C08025 | [8] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 40. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 41. | ZW16X08000 | [8] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 42. | ZP45X12032 | [8] | PIN | KOBPIN |
| 43. | ZW11K08000 | [8] | WASHER | KOB |
| 44. | ZP15D04020 | [8] | BASE PLATE Pin, Cotter | BASE PLATE Pin, Cotter |
| 45. | ZN12F12010 | [4] | NUT | NUT |
| 46. | 2418P4691 | [1] | PLATE | |
| 47. | ZN16C12010 | [16] | NUT | KOB Superseded by part number: ZN18C12010 |
| 48. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 49. | 2479T221 | [1] | HARNESS | |
| 50. | 2436N696 | [1] | PLATE, INSTAL | |
| 51. | 2436P152 | [1] | CONTROL VALVE, REPRO. | |
| 52. | 2436P153 | [1] | CONTROL VALVE, REPRO. | |
| 53. | 2418T6137 | [2] | PLATE | |
| 54. | ZS16C10016 | [6] | SCREW | KOBM10x1.50x16mm Superseded by part number: ZS18C10016 |
| 55. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
