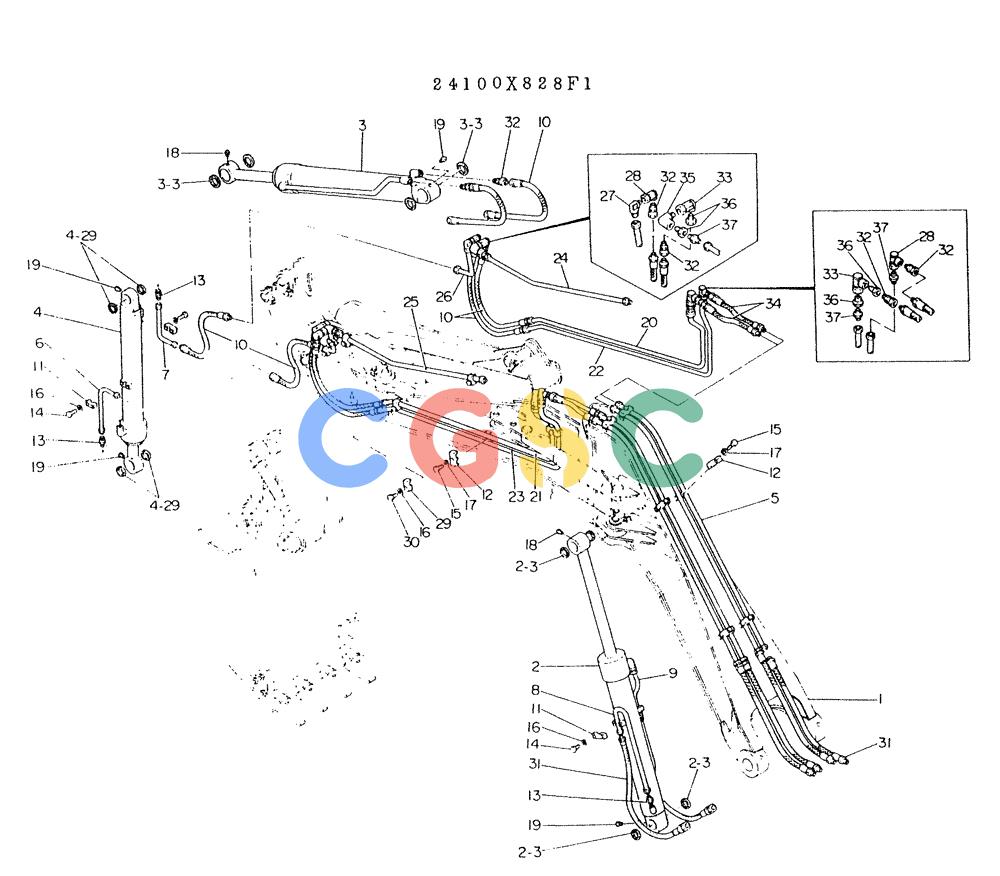

神钢零件查询(K903A) - EXCAVATOR BTW K2748 - K3928 (1/76-12/03) (11-001) - OPTIONAL PARTS Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
500 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X828F1 | [1] | ATT ASSY, GUTTER, CONSISTS OF REF. 1 TO 36 | |
| 1. | 24100X827F1 | [1] | ATT SUBASSY, GUTTER, SEE FIG. 11-002 | |
| 2. | 2438U377F1 | [1] | CYLINDER, CONSISTS OF REF. 2-3 TO 2-3 | |
| 2-3. | 2445R138D2 | [4] | SEAL,55mm ID x 70mm OD x 4mm Thk | KOB |
| 3. | 2438U409F2 | [1] | CYLINDER, CONSISTS OF REF. 3-3 TO 3-3 | |
| 3-3. | 2445R138D2 | [1] | SEAL,55mm ID x 70mm OD x 4mm Thk | KOB |
| 4. | 2438U257F5 | [1] | CYLINDER CONSISTS OF REF. 4-29 TO 4-29 | CYLINDER CONSISTS OF REF. 4-29 TO 4-29 |
| 4-29. | 2445R138D1 | [4] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
| 5. | 2418P4942 | [4] | TUBE | |
| 6. | 2418P4690D2 | [1] | TUBE | |
| 7. | 2418P4690D1 | [1] | TUBE | |
| 8. | 2418P4192 | [1] | TUBE | |
| 9. | 2418P4167 | [1] | TUBE | |
| 10. | 2444R558D4 | [8] | HOSE | |
| 11. | 2416T3204 | [4] | CLAMP | KOB |
| 12. | ZC37X18112 | [10] | CLAMP | KOB |
| 13. | ZK23E18008 | [10] | HYD CONNECTOR | KOB Superseded by part number: ZF23E18008 |
| 11. | ZS16C08030 | [8] | CAPSCREW M08x1.25x30mm | CAPSCREW M08x1.25x30mm |
| 15. | ZS16C10040 | [10] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 16. | ZW26X08000 | [20] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 17. | ZW26X10000 | [10] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 18. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 19. | ZG91U02000 | [4] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 20. | 2418P4943D1 | [1] | TUBE | |
| 21. | 2418P4943D2 | [1] | TUBE | |
| 22. | 2418N1270D1 | [1] | TUBE | |
| 23. | 2418N1270D2 | [1] | TUBE | |
| 24. | 2418P4944D1 | [1] | TUBE | |
| 25. | 2418P4944D2 | [1] | TUBE | |
| 26. | 2418T5912 | [2] | TUBE | |
| 27. | ZK33E18008 | [2] | ELBOW | |
| 28. | 2444R572D1 | [4] | JOINT, SWIVEL | |
| 29. | ZC27X18009 | [12] | CLAMP | KOB |
| 30. | ZS16C08038 | [12] | CAPSCREW | |
| 31. | 2444R558D3 | [6] | HOSE | |
| 32. | ZK23G18008 | [10] | HYD CONNECTOR | KOB |
| 33. | 2444R572D2 | [4] | JOINT, SWIVEL | |
| 34. | 2444R558D2 | [4] | HOSE | |
| 35. | ZG32B12000 | [2] | ELBOW | KOBElbow, 90° -- 3/4" PTx42mm Long |
| 36. | ZG22B12008 | [8] | CONNECTOR | |
