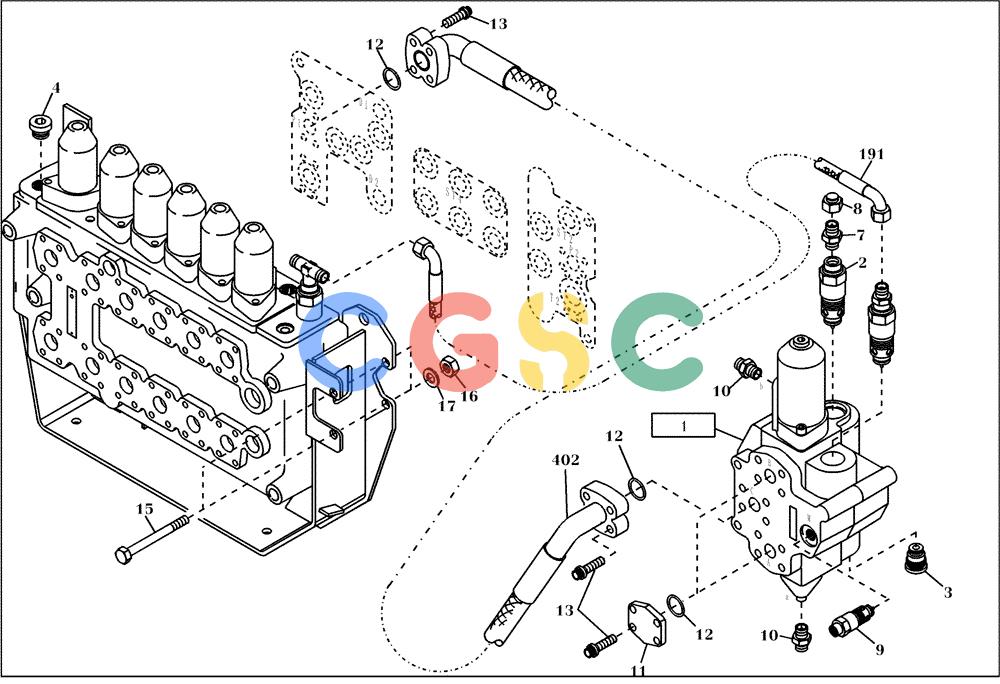

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (23.611[004]) - CONTROL BLOCK MOUNTING PARTS HAMMER (S/N 11701-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
651 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NS | [1] | NOT SERVICED | BASCONTROL BLOCK SEE FIGURE 23.612/001 |
| 2. | 73176472 | [1] | HYDRAULIC VALVE | BERVALVE Superseded by part number: 4532197 |
| 3. | 73173605 | [1] | HYDRAULIC VALVE | BERVALVE Superseded by part number: 84150120 |
| 4. | 73171915 | [1] | PLUG | BERSCREW PLUG Superseded by part number: 2135478 |
| 7. | 73170510 | [1] | HYD CONNECTOR | BERSOCKET Superseded by part number: 2247096 |
| 8. | 73170255 | [1] | LUBE NIPPLE | BERNIPPLE Superseded by part number: 1148460 |
| 9. | 73170489 | [1] | HYD CONNECTOR | BERTUBE FITTING Superseded by part number: 2213963 |
| 10. | 73170296 | [2] | HYD CONNECTOR | BERSOCKET Superseded by part number: 73170297 |
| 11. | 73178606 | [2] | FLANGE | BEROVAL FLANGE Superseded by part number: 2247666 |
| 12. | 73170341 | [4] | SEALING RING | BERSEALING RING Superseded by part number: 1725417 |
| 13. | 73170342 | [16] | 12 PT SCREW | BER12-POINT SCREW Superseded by part number: 1741263 |
| 15. | 73176470 | [2] | BOLT,Hex, M10 x 140, 8.8 | BERHEXAGON BOLT Superseded by part number: 331168 |
| 16. | 73170215 | [2] | NUT | BERHEXAGON NUT Superseded by part number: 11701721 |
| 17. | 73170182 | [2] | WASHER | BERDISK/WASHER Superseded by part number: 84089817 |
| 191. | 73180321 | [1] | HOSE | BER Superseded by part number: 1283511 |
| 402. | 73178608 | [1] | HOSE | BER Superseded by part number: 1275037 |
