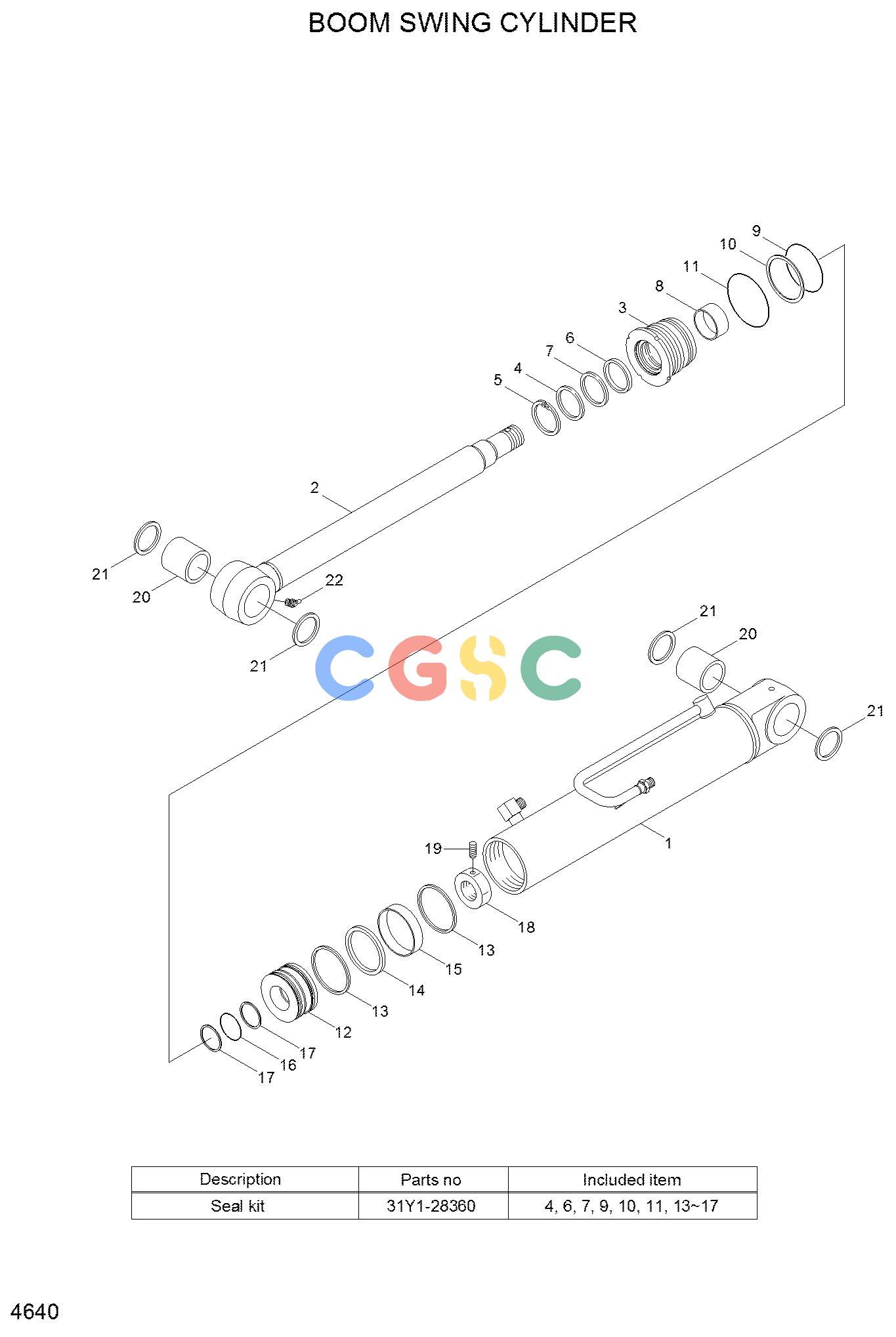

现代零件查询R35Z-7 BOOM SWING CYLINDEREPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
714 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31MH-10120
|
[1] |
SWING CYLINDER ASSY
|
|
| 1. |
XKCC-00021
|
[1] |
TUBE ASSY
|
|
| 2. |
XKCC-00022
|
[1] |
ROD ASSY
|
|
| 3. |
XKCC-00023
|
[1] |
GLAND
|
|
| K4. |
Y110-045011
|
[1] |
WIPER-DUST
|
|
| 5. |
Y190-057000
|
[1] |
RING-SNAP
|
|
| K6. |
Y220-045011
|
[1] |
SEAL-ROD
|
|
| K7. |
Y180-045020
|
[1] |
RING-BACK UP
|
|
| 8. |
S731-045030
|
[1] |
BUSHING-DU
|
|
| K9. |
S632-075004
|
[1] |
O-RING
|
|
| K10. |
S642-076003
|
[1] |
RING-BACK UP
|
|
| K11. |
S632-080004
|
[1] |
O-RING
|
|
| 12. |
XKCC-00011
|
[1] |
PISTON
|
|
| K13. |
Y440-080000
|
[2] |
RING-DUST
|
|
| K14. |
Y450-080000
|
[1] |
SEAL-PISTON
|
|
| K15. |
Y300-080000
|
[1] |
RING-WEAR
|
|
| K16. |
S631-034004
|
[1] |
O-RING
|
|
| K17. |
S641-034003
|
[2] |
RING-BACK UP
|
|
| 18. |
XKCC-00005
|
[1] |
NUT-LOCK
|
|
| 19. |
S114-080164
|
[1] |
SCREW-SET
|
|
| 20. |
31YC-12010
|
[2] |
BUSHING-PIN
|
|
| 21. |
Y010-045055
|
[4] |
SEAL-DUST
|
|
| 22. |
S652-810002
|
[1] |
NIPPLE-GREASE
|
|
| K. |
31Y1-28360
|
[1] |
SEAL KIT
|
|
