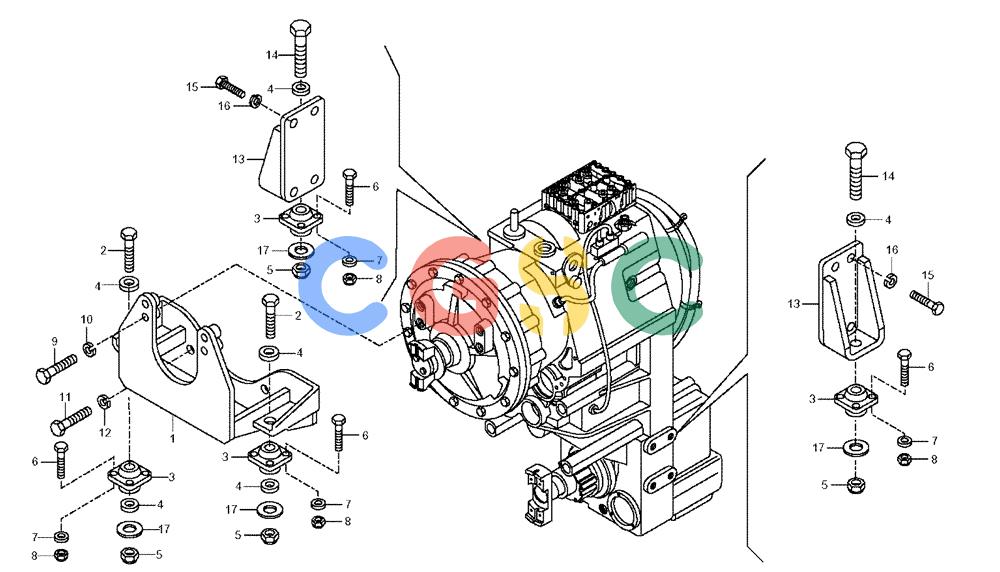

纽荷兰零件查询(AD300) - ARTICULATED DUMP TRUCK (1/01-) (1.211/3[02]) - TRANSMISSION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
476 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8998196561 | [1] | SUPPORT | AST Superseded by part number: 89500409582 |
| 2. | 8916635834 | [2] | BOLT | ASTM16 x 140 Superseded by part number: 8916635835 |
| 3. | 89500400384 | [4] | RUBBER PAD | AST |
| 4. | 8900005515 | [6] | WASHER | AST |
| 5. | 8900035415 | [4] | NUT | ASTM16 x 2 |
| 6. | 8900141323 | [16] | BOLT | ASTM10 x 1.5 x 40 |
| 7. | 8900113173 | [16] | WASHER | AST |
| 8. | 8900025351 | [16] | NUT | ASTM10 |
| 9. | 8916635234 | [4] | BOLT | ASTM16 x 80 |
| 10. | 8900156986 | [4] | WASHER | AST |
| 11. | 8998196558 | [2] | BOLT | ASTM30 x 70 |
| 12. | 8900055156 | [2] | LOCK WASHER | AST |
| 13. | 8900193459 | [2] | SUPPORT | AST |
| 14. | 8900183763 | [2] | BOLT | ASTM16 x 2 x 120 |
| 15. | 8900125740 | [8] | BOLT | ASTM20 x 40 |
| 16. | 8900140552 | [8] | COLLAR | AST |
| 17. | 89500405185 | [4] | WASHER | AST |
