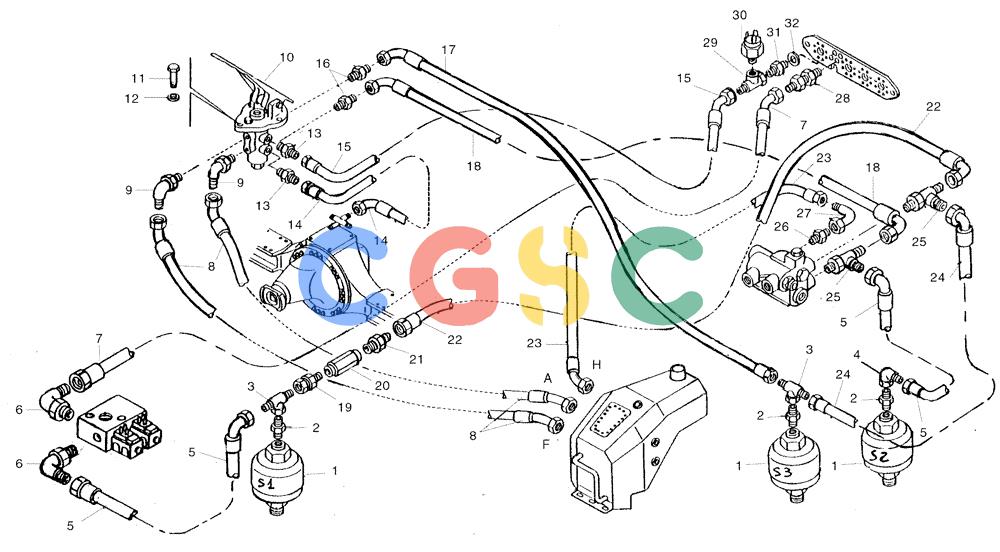

纽荷兰零件查询(AD300) - ARTICULATED DUMP TRUCK (1/01-) (3.400/3[06A]) - HYDRAULIC CIRCUIT BRAKE SYSTEM - FRAME PART New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
726 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8960720006 | [3] | ACCUMULATOR | AST |
| 2. | 8900191038 | [3] | HYD CONNECTOR | AST |
| 3. | 8900193938 | [2] | HYD CONNECTOR | AST |
| 4. | 8900191117 | [1] | HYD CONNECTOR | AST |
| 5. | 8998198374 | [2] | PIPE | AST |
| 6. | 8998198049 | [2] | HYD CONNECTOR | AST |
| 7. | 8998198381 | [1] | PIPE | AST |
| 8. | 89500401809 | [1] | PIPE | AST |
| 9. | 89500404313 | [2] | HYD CONNECTOR | AST |
| 10. | 8998196976 | [1] | VALVE | AST |
| 11. | 8900172961 | [3] | BOLT | AST |
| 12. | 8900956220 | [3] | LOCK WASHER | AST |
| 13. | 8900193942 | [2] | HYD CONNECTOR | AST |
| 14. | 895004045659 | [1] | | |
| 15. | 8900193889 | [1] | FLEXIBLE HOSE | AST |
| 16. | 8900191194 | [2] | HYD CONNECTOR | AST |
| 17. | 8998198378 | [1] | PIPE | AST |
| 18. | 8998198388 | [1] | PIPE | AST |
| 19. | 8900194429 | [1] | HYD CONNECTOR | AST |
| 20. | 89500401674 | [1] | HYDRAULIC VALVE | AST |
| 21. | 8900191014 | [1] | HYD CONNECTOR | AST |
| 22. | 8998198380 | [1] | PIPE | AST |
| 23. | 8998198379 | [1] | PIPE | AST |
| 24. | 89500401148 | [1] | FLEXIBLE HOSE | AST |
| 25. | 89500401697 | [2] | HYD CONNECTOR | AST |
| 26. | 8900193941 | [1] | HYD CONNECTOR | AST |
| 27. | 8900191173 | [1] | HYD CONNECTOR | AST |
| 28. | 89500404280 | [1] | HYD CONNECTOR | AST |
| 29. | 8998198278 | [1] | SWIVEL CONNECTION | AST |
| 30. | 8998198375 | [1] | SWITCH | AST |
| 31. | 89500403209 | [1] | HYD CONNECTOR | AST |
| 32. | 8998198017 | [1] | COPPER WASHER | AST |
