神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (06-001) - HYDR LINES, LOW Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
723 次

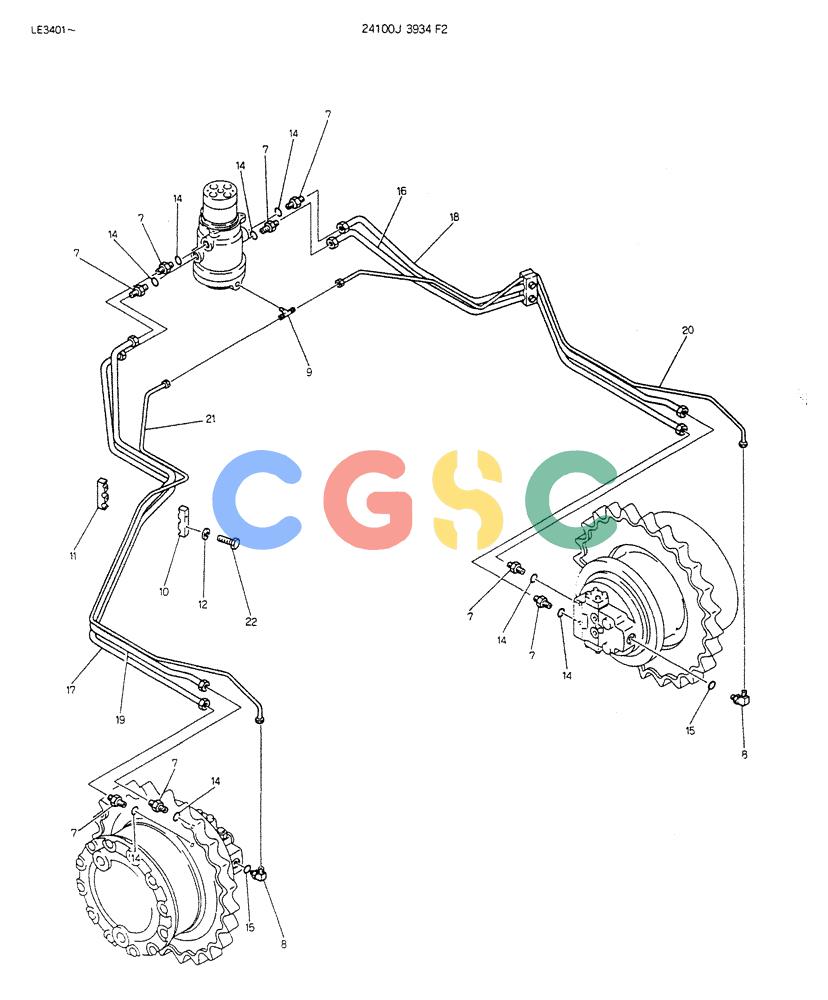

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J3934F2 | [1] | HYDR LINES ASSY | |
| 7. | ZK23F18008 | [8] | HYD CONNECTOR | KOB |
| 8. | ZK33F10004 | [2] | ELBOW | KOB |
| 9. | ZK53C10006 | [1] | TEE | KOB |
| 10. | 2432T1151 | [2] | CLAMP | |
| 11. | 2432T1152 | [2] | CLAMP | |
| 12. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 14. | ZD12P01800 | [8] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 15. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 16. | 2418N2188 | [1] | TUBE | KOB |
| 17. | 2418N2189 | [1] | RIGID TUBE | KOB |
| 18. | 2418N2190 | [1] | TUBE | KOB |
| 19. | 2418N2191 | [1] | RIGID TUBE | KOB |
| 20. | 2418N2192D1 | [1] | TUBE | KOB |
| 21. | 2418N2192D2 | [1] | RIGID TUBE | KOB |
| 22. | ZS13C10040 | [4] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
