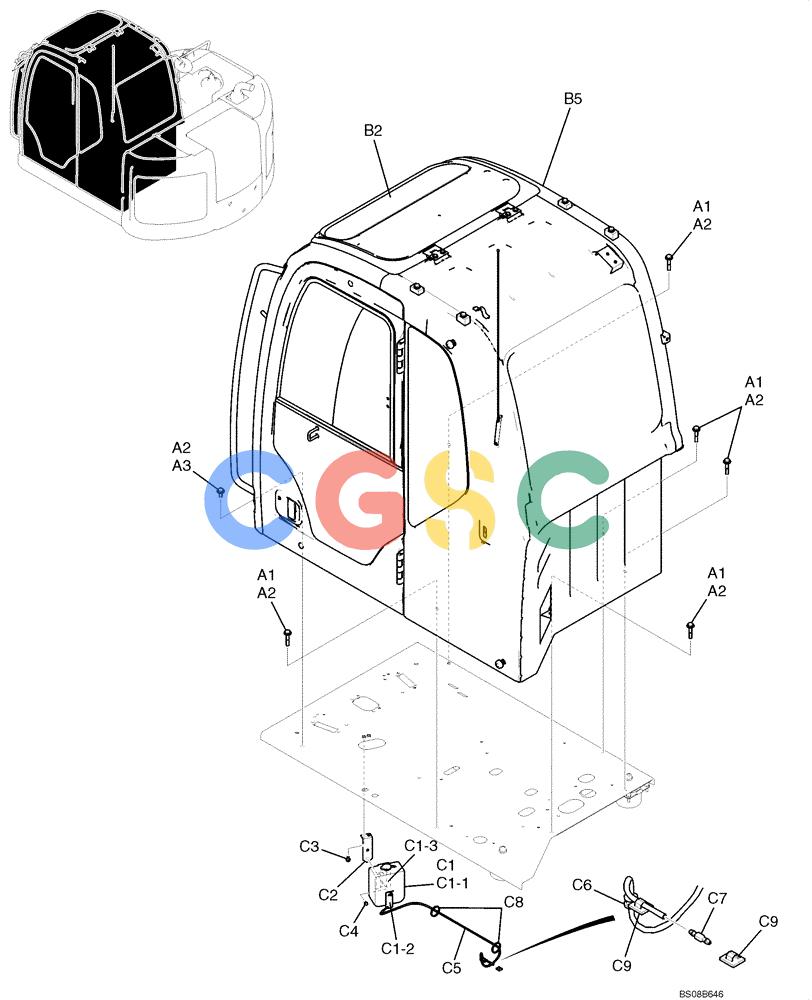

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-37-00[00]) - CAB INSTALLATION (YT02C00050F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
542 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | ZS18C12065 | [5] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| A2. | 2418T10357 | [6] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| A3. | ZS18C12030 | [1] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| B2. | YY02C01040F1%K2 | [1] | WINDOW | KOBAssembly, Roof (Grayish Black) -- See Figure 02-40-00 |
| B4. | NA | [1] | NOT SERVICED | FORDrawing, Painting -- See Figure 02-39-00 |
| B5. | YT02C00044F2%K2 | [1] | Cab Assembly (Grayish Black) | |
| C1. | YT54C00003F1 | [1] | TANK | KOBWindshield Washer Assembly, Incls. Refs. C1-1 - C1 -3 |
| C1-1. | YT54C00003S001 | [1] | ELECTRIC MOTOR | KOBAssembly, Windshield Washer -- No service components |
| C1-2. | YT54C00003S002 | [1] | TANK | KOBAssembly, Windshield Washer |
| C1-3. | YT54C00003S003 | [1] | BRACKET | KOB Superseded by part number: 2416P7292 |
| C2. | YB54C01003P1 | [1] | BRACKET | KOB |
| C3. | ZM73C08016 | [2] | BOLT,M8x16mm - Course Thread | KOBM08x1.25x16mm (Incls. Washer) |
| C4. | ZM73C06016 | [2] | BOLT,M6x16mm - Course Thread | KOBM06x1.0x16mm (Incls. Washer) |
| C5. | YT02C01126D8 | [1] | TUBE | KOB1300mm Long (51-3/16 in) Superseded by part number: YT02C01126D6 |
| C6. | YN03M01159P1 | [1] | GROMMET | KOB |
| C7. | YT02C01282P1 | [1] | ELEC CONNECTOR | KOB30mm Long (1-13/16 in) |
| C8. | PY01P01043D3 | [2] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| C9. | 2432Z478D1 | [2] | CLIP | KOBØ5.4x17.5x20.5x9.8mm |
