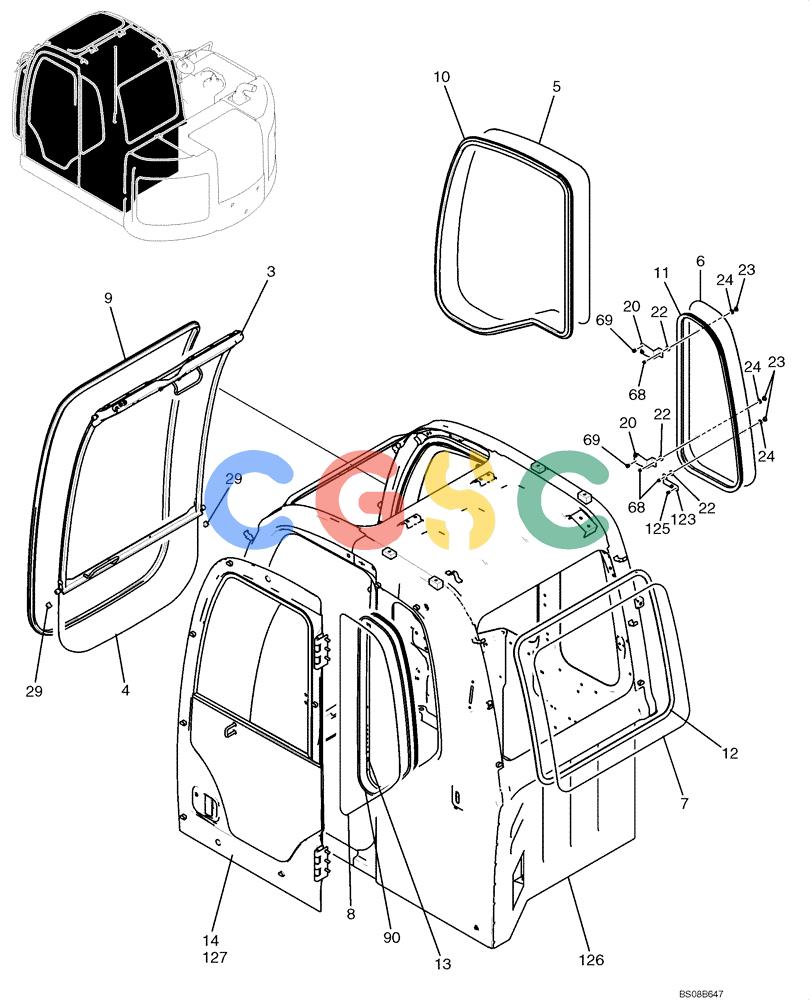

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-39-00[01]) - CAB ASSEMBLY (GRAYISH BLACK) (YT02C00044F2), PAGE 1 OF 4 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
855 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | YN50C00005F1 | [1] | WINDOW | KOBAssembly, Front -- See Figure 02-41-00 |
| 4. | YN02C03160P1 | [1] | GLASS | KOBLower Front |
| 5. | YB02C01036P1 | [1] | GLASS | KOB |
| 6. | YN02C01567P1 | [1] | GLASS | KOB |
| 7. | YN02C01787P1 | [1] | GLASS | KOB |
| 8. | YN02C02136P1 | [1] | GLASS | KOB |
| 9. | YN02C03006P2 | [1] | GASKET | SMRubber |
| 10. | YB02C01080P1 | [1] | RUBBER BAND | KOB |
| 11. | YN02C01825P1 | [1] | SEAL,2050mm L | KOB |
| 12. | YT02C01115D3 | [1] | RUBBER SLEEVE | KOB |
| 13. | YT02C01515D5 | [1] | TRIM PANEL | KOB Superseded by part number: YT02C01515D2 |
| 14. | YB02C01065P1 | [1] | RUBBER BAND | KOB Superseded by part number: YB02C01065P2 |
| 20. | YN02C01811P1 | [2] | PLATE | KOB |
| 22. | YN02C01812P1 | [3] | SPACER,10mm ID x 20mm OD x 4mm L | KOB |
| 23. | YN02C01668P1 | [3] | RETAINER | KOB |
| 24. | YN02C01669P1 | [3] | PACKING | KOB |
| 29. | YT02C01136P1 | [2] | STOP | KOB |
| 68. | ZM66C05012 | [3] | BOLT | KOBM05x0.8x12mm (Incls. Washer & Lockwasher) |
| 69. | ZM66C06016 | [18] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 90. | YT02C01514D2 | [1] | SEAL | KOB Superseded by part number: YR02C01511D2 |
| 123. | YN02C02023P1 | [1] | BRACKET | KOB |
| 125. | ZM66C05016 | [2] | BOLT | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) |
| 126. | YT02C00051P1 | [1] | Cab | |
| 127. | YB51C00004F1%K2 | [1] | DOOR | KOBAssembly, Cab (Grayish Black/Glace Black 971)-- See Figure 02-42-00 |
